Pilz 400133
PIT es3s
- MPN
- 400133
- EAN
- 4046548071252
- Category
- PITestop - actuators
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

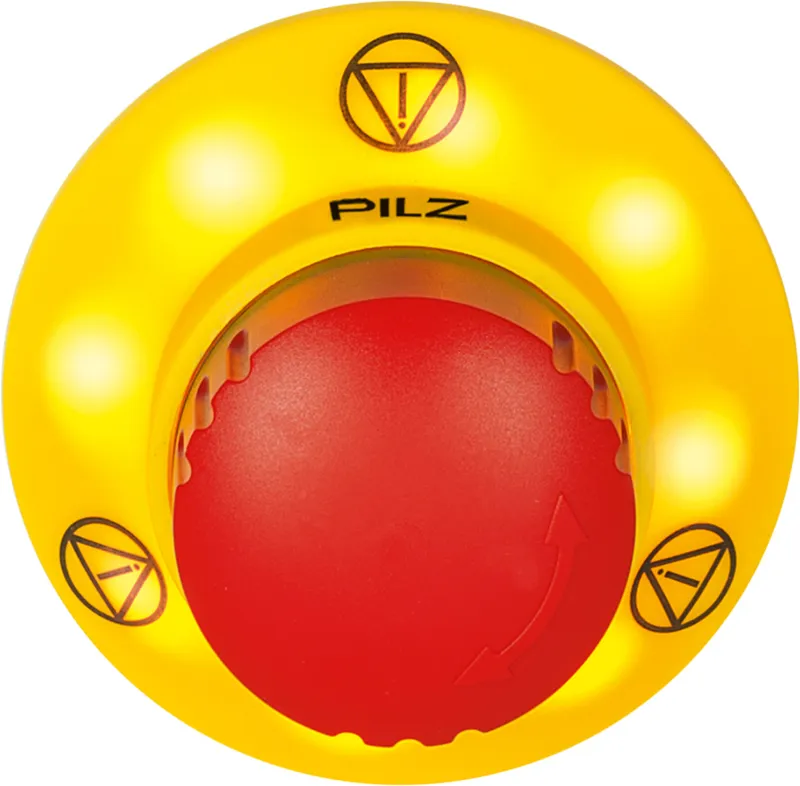

What is the Pilz 400133?
PITestop, E-STOP pushbutton IP65, illuminated, with E-STOP symbol andwith logo, installation diameter: 22.3 mm.
Specifications
General data
| Product ID (Pilz order number) | 400133 |
| Approval | CE, UKCA, cULus Listed, UL Recognized Component, EAC (Eurasian), TÜV |
| Lamp | LED |
| Lamp colour | yellow |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 12, 30 |
| Type of supply voltage U1 | AC/DC |
Environmental data
| Ambient temperature | -25 … 55 °C |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP65 |
Mechanical data
| Mounting position | any |
| Connection terminal | Screw terminal |
| Height dimension | 41.5 mm |
| Width dimension | 56 mm |
| Diameter | 55 |
| Net weight | 53 g |
| Gross weight | 66 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371244 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002034 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548071252 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365080 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
400133: frequently asked questions
When can 400133 be shipped?
400133 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 400133 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 400133 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 400133, subject to availability and destination.
