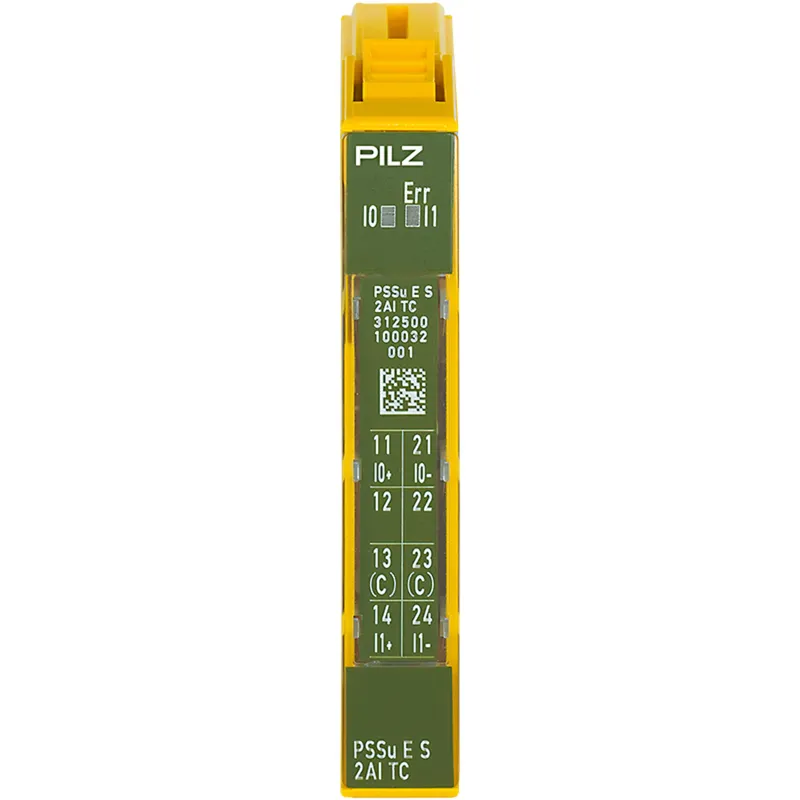

Pilz 312500
PSSu E S 2AI TC
- MPN
- 312500
- EAN
- 4046548052572
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 312500?
PSSu, electronic module, standard, analogue inputs and outputs, 2inputs, thermocouples with letter codes R, S, B, J, T, E, K, N, voltage with ranges -30 - 30 mV, -60 - 60 mV, -120 - 120 mV, reference temperature via special base modules using integrated Pt1000.
Specifications
General data
| Product ID (Pilz order number) | 312500 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Analog inputs
| Number of analogue inputs | 2 |
| Type of analogue inputs | Thermocouple |
| Signal range analog input | Type N, Type R, Type B, Type S, Type T, Type E, Voltage, Type J, Type K |
| Analog input signal type 1 | Type R |
| Analog input Signal range 1 | -50 - 1768 °C |
| Analog input signal type 2 | Type S |
| Analog input Signal range 2 | -50 - 1768 °C |
| Analog input signal type 3 | Type B |
| Analog input Signal range 3 | 600 - 1820 °C |
| Analog input signal type 4 | Type J |
| Analog input Signal range 4 | -210 - 1200 °C |
| Analog input signal type 5 | Type T |
| Analog input Signal range 5 | -200 - 400 °C |
| Analog input signal type 6 | Type E |
| Analog input Signal range 6 | -200 - 1000 °C |
| Analog input signal type 7 | Type K |
| Analog input Signal range 7 | -200 - 1372 °C |
| Analog input signal type 8 | Type N |
| Analog input Signal range 8 | -200 - 1300 °C |
| Analog input signal type 9 | Voltage |
| Analog input Signal range 9 | +/-30 mV |
| Analog input signal type 10 | Voltage |
| Analog input Signal range 10 | +/-60 mV |
| Analog input signal type 11 | Voltage |
| Analog input Signal range 11 | +/-120 mV |
| Type of input filter | Digital filter |
| Damping of input filter 1 | 90 dB (60 Hz) |
| Value least signif. bit U-Me | 2 µV (+/-60 mV), 4 µV (+/-120 mV), 1 µV (+/-30 mV) |
| Conversion method analog i/p | Delta sigma |
| Pot. isolation analog inp./ | Yes |
Inputs
| Potential isolation inputs | yes |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 60664-1, EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Height dimension | 76 mm |
| Width dimension | 12.6 mm |
| Depth dimension | 60.2 mm |
| Net weight | 35 g |
| Gross weight | 44 g |
| Name of coding element | H |
| Colour of coding element | Dark grey |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242601 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001596 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548052572 |
| Volume | 0.049 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
