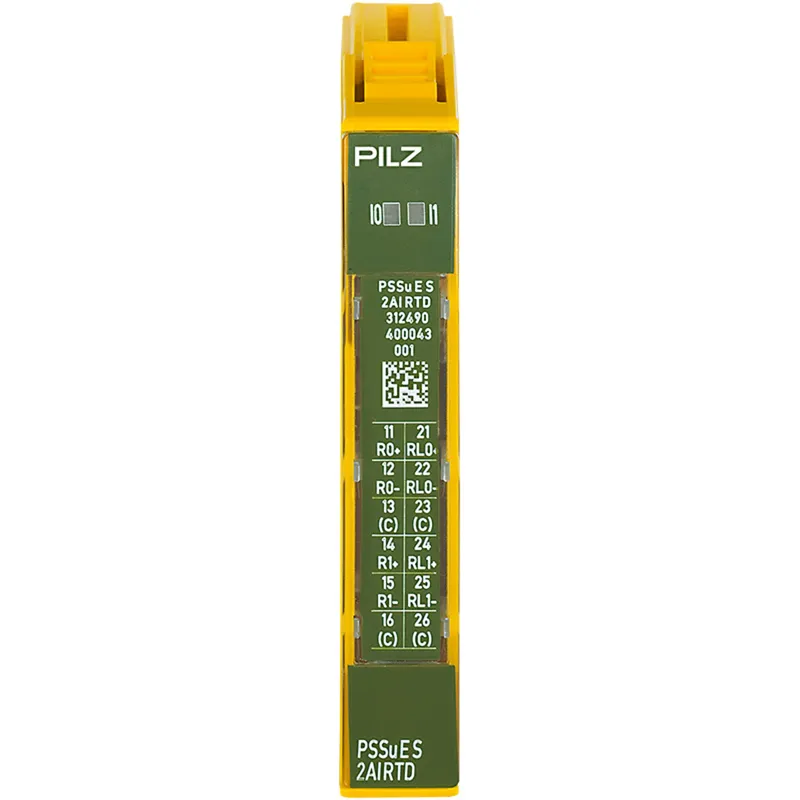

Pilz 312490
PSSu E S 2AI RTD
- MPN
- 312490
- EAN
- 4046548052565
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 312490?
PSSu, electronic module, standard, analogue inputs and outputs, 2inputs, resistance thermometer, Ni100, Ni120, Ni1000, Pt100, Pt200, Pt500, Pt1000, resistance 0 - 4000 Ohm.
Specifications
General data
| Product ID (Pilz order number) | 312490 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Analog inputs
| Number of analogue inputs | 2 |
| Type of analogue inputs | Resistance thermometer |
| Signal range analog input | Pt100, Pt200, Resistance, Ni1000, Pt500, Ni100, Pt1000, Ni120 |
| Platinum sensors standard | DIN EN 60751 |
| Analog input signal type 1 | Pt100 |
| Analog input Signal range 1 | -200 - 850 °C |
| Analog input signal type 2 | Pt200 |
| Analog input Signal range 2 | -200 - 850 °C |
| Analog input signal type 3 | Pt500 |
| Analog input Signal range 3 | -200 - 850 °C |
| Analog input signal type 4 | Pt1000 |
| Analog input Signal range 4 | -200 - 850 °C |
| Analog input signal type 5 | Ni100 |
| Analog input Signal range 5 | -60 - 250 °C |
| Analog input signal type 6 | Ni120 |
| Analog input Signal range 6 | -60 - 250 °C |
| Analog input signal type 7 | Ni1000 |
| Analog input Signal range 7 | -60 - 250 °C |
| Analog input signal type 8 | Resistance |
| Analog input Signal range 8 | 0 - 4000 Ohm |
| Type of input filter | Digital filter |
| Damping of input filter 1 | 90 dB (60 Hz) |
| Conversion method analog i/p | Delta sigma |
| Pot. isolation analog inp./ | Yes |
Inputs
| Potential isolation inputs | yes |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 60664-1, EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Height dimension | 76 mm |
| Width dimension | 12.6 mm |
| Depth dimension | 60.2 mm |
| Net weight | 35 g |
| Gross weight | 44 g |
| Name of coding element | G |
| Colour of coding element | Dark grey |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242601 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001596 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548052565 |
| Volume | 0.049 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
