Pepperl Fuchs WCS-IS321
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can WCS-IS321 be shipped?
WCS-IS321 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up WCS-IS321 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for WCS-IS321 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WCS-IS321, subject to availability and destination.

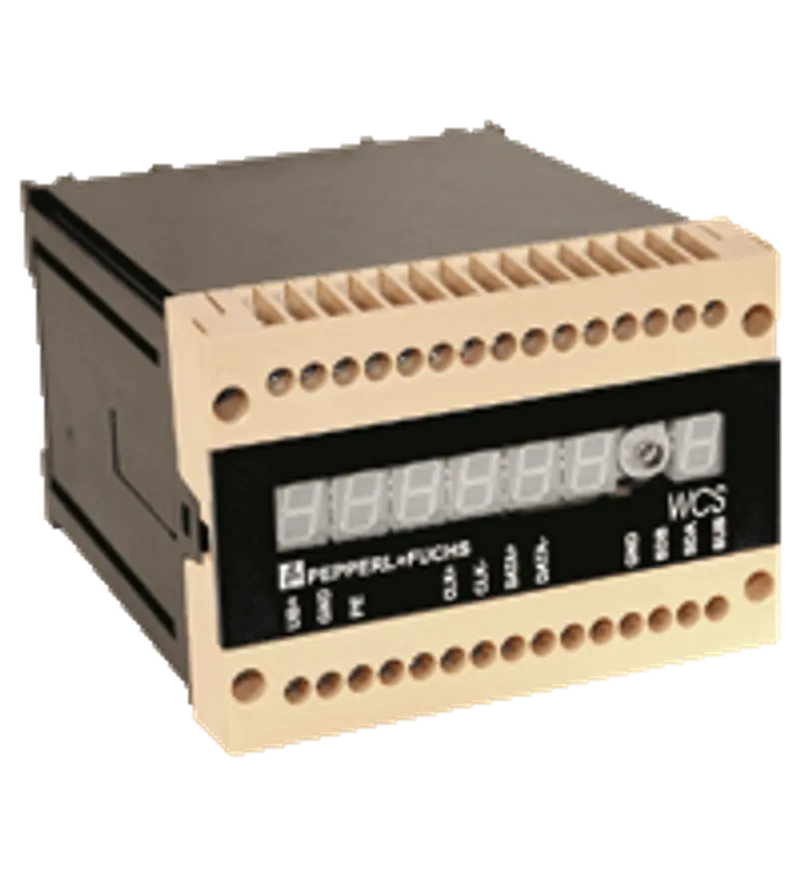

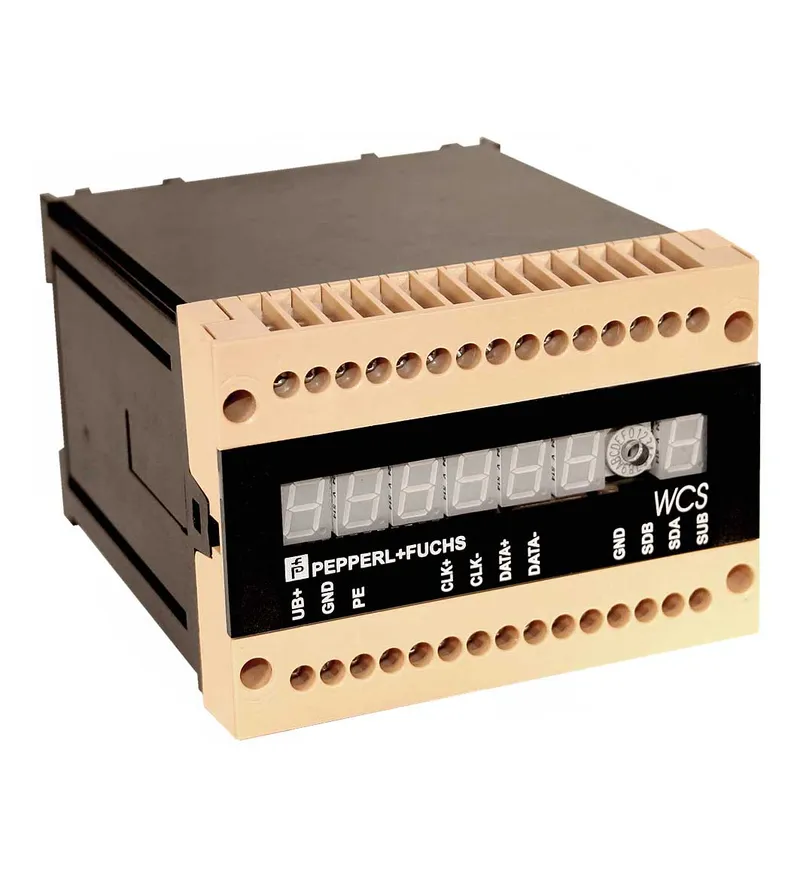

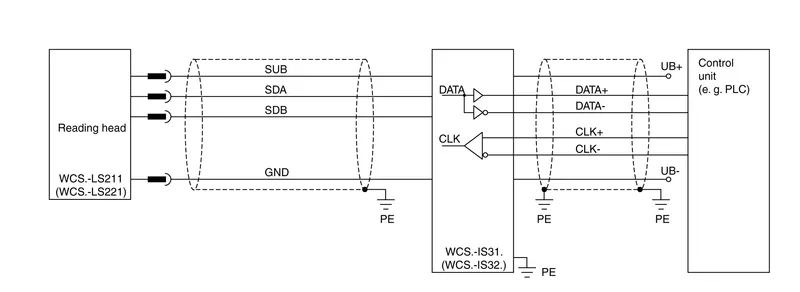

WCS interface module. WCS SSI interface module, Integrated display, Long possible cable legth between reading head and SSI master, DIN rail mounting. Installation: DIN rail mounting. Operating voltage: 24 V DC ± 20 %. Power consumption: ≤ 2 W (without read heads). Connection of: control system. Interface type: SSI. Transfer rate: max. 500 kHz. Data output format: Gray code. Bus termination resistor: integrated. Connection of: Read head. Connectable read heads: WCS-LS221. Interface type: RS-485. Transmission method: half duplex. Transfer rate: max. 62.5 kBit/s. RS485 termination resistor: integrated. Refresh cycle of read head: 1 ms. Emitted interference: EN 55011. Noise immunity: DIN EN 50082-2. Operating temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: ≤ 80 %. Connection type: removable terminal block. Degree of protection: IP20. Material: plastic. Installation position: any position. Mass: approx. 350 g. Dimensions: . Height74 mmWidth100 mmDepth121 mm: . Height: 74 mm. Width: 100 mm. Depth: 121 mm
Specifications
General specifications
| Installation | DIN rail mounting |
Electrical specifications
| Operating voltage | 24 V DC ± 20 % UB |
| Power consumption | ≤ 2 W (without read heads) P0 |
Interface 1
| Connection of | control system |
| Interface type | SSI |
| Transfer rate | max. 500 kHz |
| Data output format | Gray code |
| Bus termination resistor | integrated |
Interface 2
| Connection of | Read head |
| Connectable read heads | WCS-LS221 |
| Interface type | RS-485 |
| Transmission method | half duplex |
| Transfer rate | max. 62.5 kBit/s |
| RS485 termination resistor | integrated |
| Refresh cycle of read head | 1 ms |
Standard conformity
| Emitted interference | EN 55011 |
| Noise immunity | DIN EN 50082-2 |
Ambient conditions
| Operating temperature | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | ≤ 80 % |
Mechanical specifications
| Connection type | removable terminal block |
| Degree of protection | IP20 |
| Material | plastic |
| Installation position | any position |
| Mass | approx. 350 g |

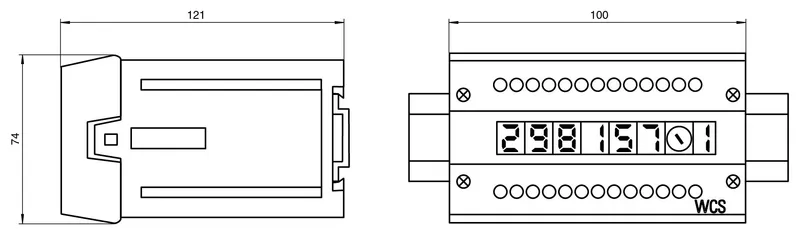

| Dimensions | |
| Height74 mmWidth100 mmDepth121 mm | Height |
| Height | 74 mm |
| Width | 100 mm |
| Depth | 121 mm |
