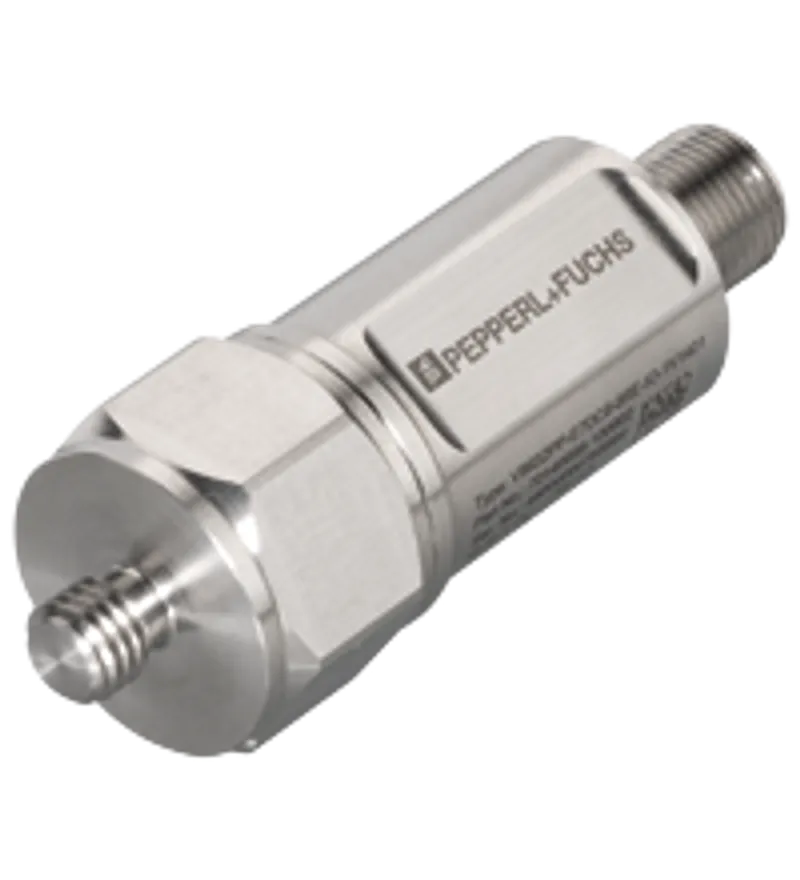

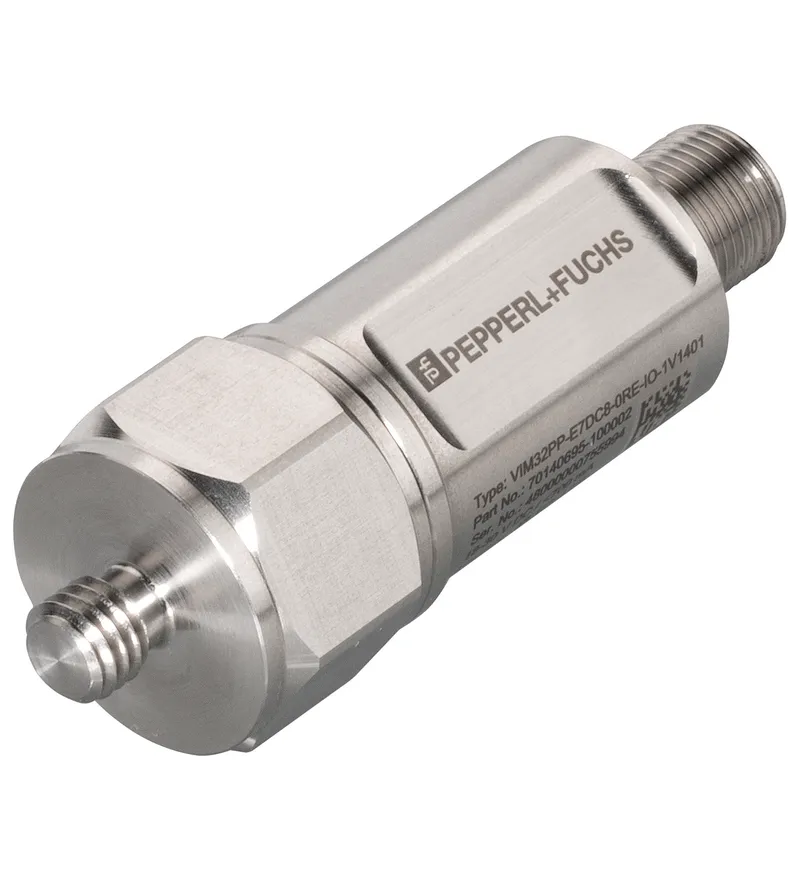

Pepperl Fuchs VIM32PP-E7DC8-0RE-IO-1V1401
Vibration sensor
- MPN
- VIM32PP-E7DC8-0RE-IO-1V1401
- Category
- Vibration Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VIM32PP-E7DC8-0RE-IO-1V1401?
Raw data for vibration acceleration a-Raw by means of BLOB transfer
Frequency range up to 12 kHz with sampling rate up to 64 kHz
Bearing status parameter according to DIN ISO 13373
Vibration velocity in mm/s (rms) acc. to DIN ISO 10816/20816
Vibration acceleration in g (rms) acc. to DIN ISO 10816/20816
Additional temperature value output
IO-Link Interface for process data, parameterization and diagnosis
Rugged stainless steel housing
Vibration sensor with IO-Link and programmable switching output or analog current output, Series: Performance Plus Line, Measured variable: Vibration velocity , Vibration acceleration , Bearing status parameter , Crest factor , Temperature, Vibration acceleration: 0 ... 34 g rms, Vibration acceleration: 0 ... 48 g peak value per 1 s, Vibration acceleration: -48 ... 48 g by means of BLOB transfer
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70140695-100002 |
| Type | Vibration sensor |
| Measuring technology | MEMS capacitive |
| Series | Performance Plus Line |
| Measured variable | Vibration velocity Vibration acceleration Bearing status parameter Crest factor Temperature |
| Measuring range: Vibration velocity | 0 ... 128 mm/s v-rms |
| Measuring range: Vibration acceleration | 0 ... 34 g rms a-rms |
| Measuring range: Vibration acceleration | 0 ... 48 g peak value per 1 s a-Peak |
| Measuring range: Vibration acceleration | -48 ... 48 g by means of BLOB transfer a-Raw |
| Measuring range: Bearing status parameter | 1 ... 4 see section characteristic curve |
| Measuring range: Crest factor | 0 ... 100 |
| Measuring range: Temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Measurement accuracy | Vibration velocity: ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measuring range greater than 8 mm/s Vibration acceleration: ± 0.01 g (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 |
| Cross-sensitivity | < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis |
| Resolution | Vibration velocity: 0.01 mm/s Vibration acceleration: 0.01 g Bearing status parameter: 0.01 |
| Frequency range | Vibration acceleration a-raw: 0 ... 12000 Hz , by means of BLOB transfer Vibration velocity rms: 10 ... 1000 Hz , acc. to DIN ISO 10816/20816 , programmable Vibration acceleration rms: 10 ... 1000 Hz , acc. to DIN ISO 10816/20816 , programmable Vibration acceleration a-peak: 10 ... 10000 Hz Crest factor: 10 ... 10000 Hz Bearing status parameter: 10 ... 10000 Hz , acc. to DIN ISO 13373-3 |
| Averaging time | for v-rms: 2 s for a-rms: 2 s |
| Sampling rate | Vibration acceleration a-raw: 64 kHz , programmable Vibration velocity rms: 8 kHz Vibration acceleration rms: 8 kHz Vibration acceleration a-peak: 32 kHz Crest factor: 32 kHz Bearing status parameter: 32 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 329 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Fusing | external fuse is required: 1 A , fast acting , 30 V DC |
| Operating voltage | 18 ... 30 V DC UB |
| Current consumption | max. 320 mA |
| Power consumption | max. 10 W P0 |
| Time delay before availability | ≤ 3.6 s tv |
| Surge protection | up to 2 kV |
Interface

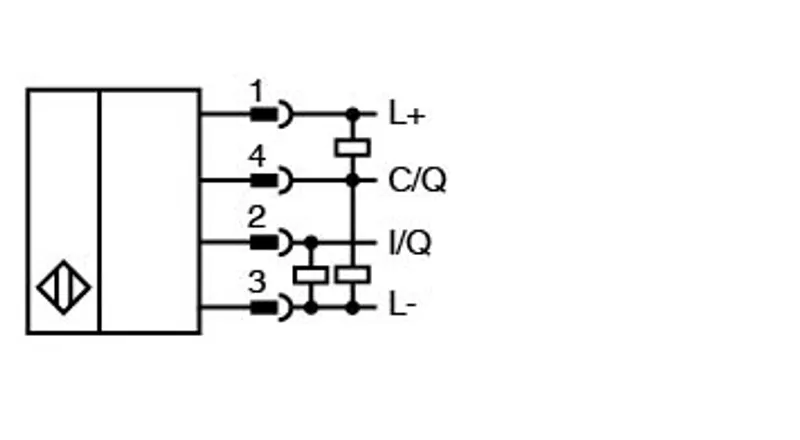

| Interface type | IO-Link (via C/Q = Pin 4) |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D , BLOB transfer |
| Process data | Input 24 Byte measurement channels: -rms value velocity - peak value acceleration - rms value acceleration - temperature - crest factor - bearing status parameter per measurement channel: - measurement value 2 Byte - scaling 8 Bit - switching signals 2 Bit status data |
| Vendor ID | 1 (0x0001) |
| Device ID | 5308673 (0x510101) |
| Transfer rate | COM3 (230.4 kbits/s) |
| Min. cycle time | 3.8 ms |
| SIO mode support | yes |
| Compatible master port type | Class A Class B (use 3-pole adapter or 3-wire cable) |
| BLOB size | 1.28 MByte , programmable |
| BLOB segments | 200 Byte per request and BLOB segment respectively |
Output 1
| Output type | C/Q - Pin 4 in SIO mode (switching signal of the measured variable is programmable) |
| Switching function | Normally open/closed (NO/NC) |
| Operating current | ≤ 100 mA |
| Short-circuit protection | yes |
Output 2
| Output type | I/Q - pin 2 (parameterizable as analog current output or switching signal) - I: analog output for the measured variable, current 4 ... 20 mA - Q: switching signal of the measured variable is parameterizable, PNP normally open |
| Switching function | Normally open/closed (NO/NC) |
| Operating current | ≤ 120 mA for switching signal |
| Voltage drop | < 2 V |
| Output current | 4 ... 20 mA at analog output |
| Load resistor | ≤ 500 Ω at analog output |
| Short-circuit protection | yes |
Standard conformity
| Degree of protection | DIN EN 60529, IP66, IP67 |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 12000 Hz |
| Vibration evaluation | DIN ISO 10816/20816 , DIN ISO 13373-3 |
Approvals and certificates
| UL approval: Ordinary Location | E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on request |
| UL approval: Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP66 / IP67 only in connected state |
| Connector: Threading | M12 |
| Connector: Number of pins | 4 |
| Mass | approx. 100 g |

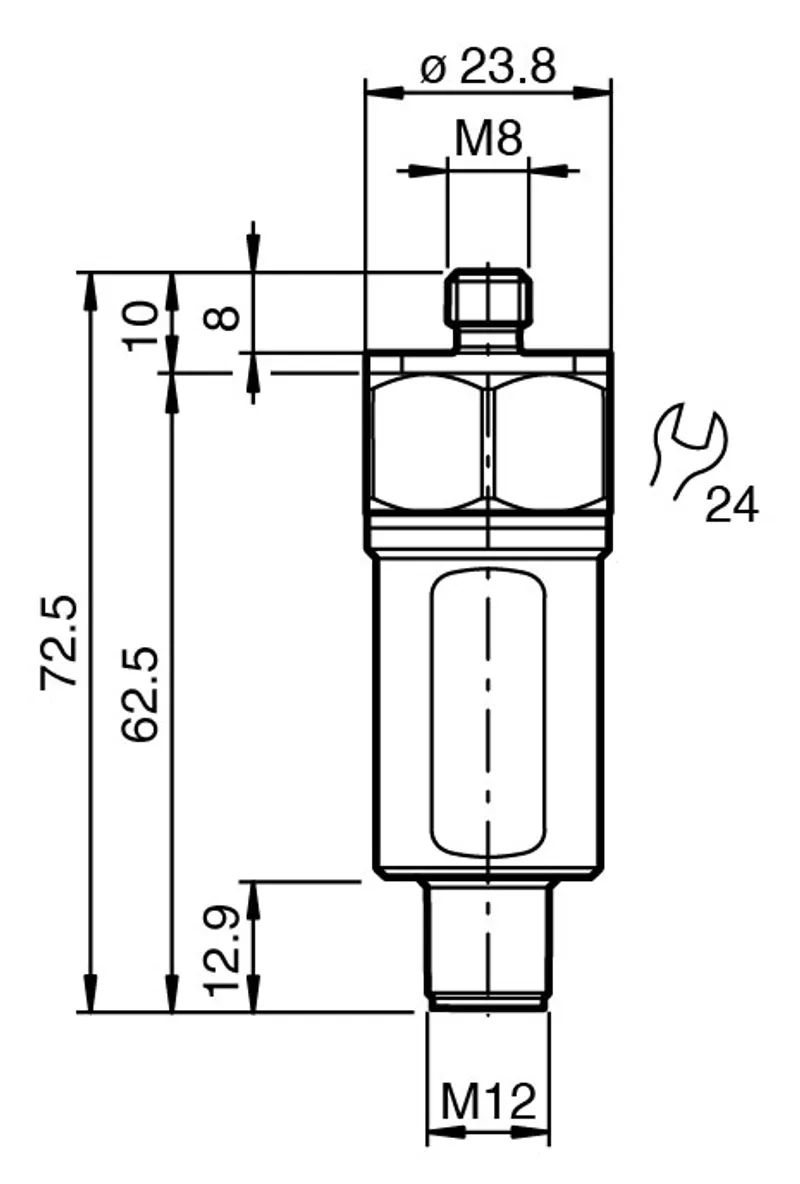

| Dimensions: Length | 72.5 mm |
| Dimensions: Diameter | 23.8 mm |
