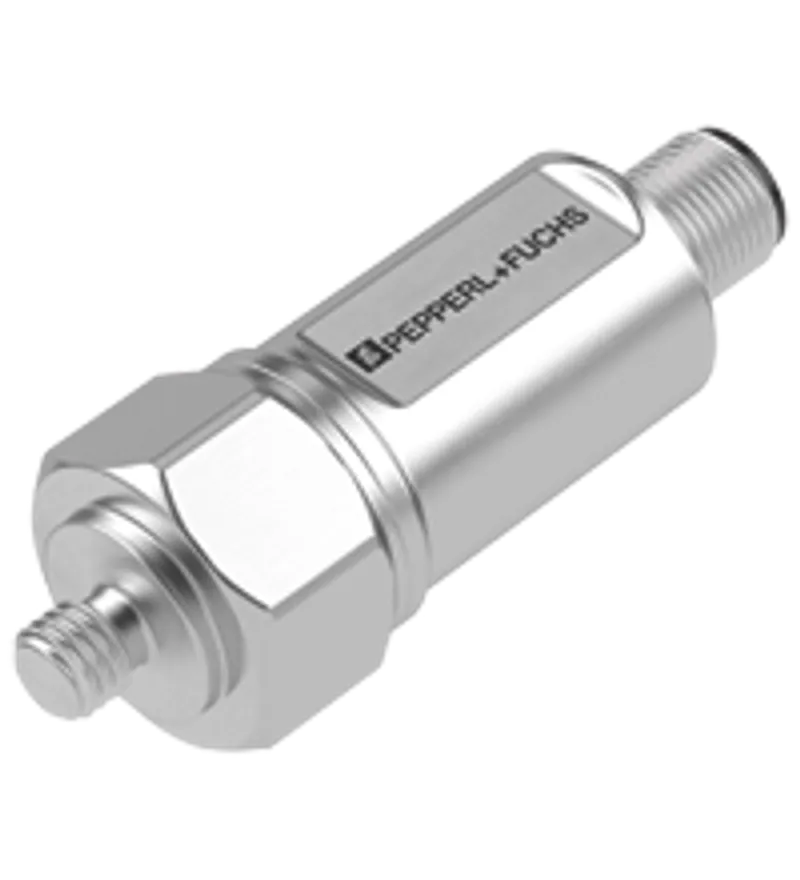

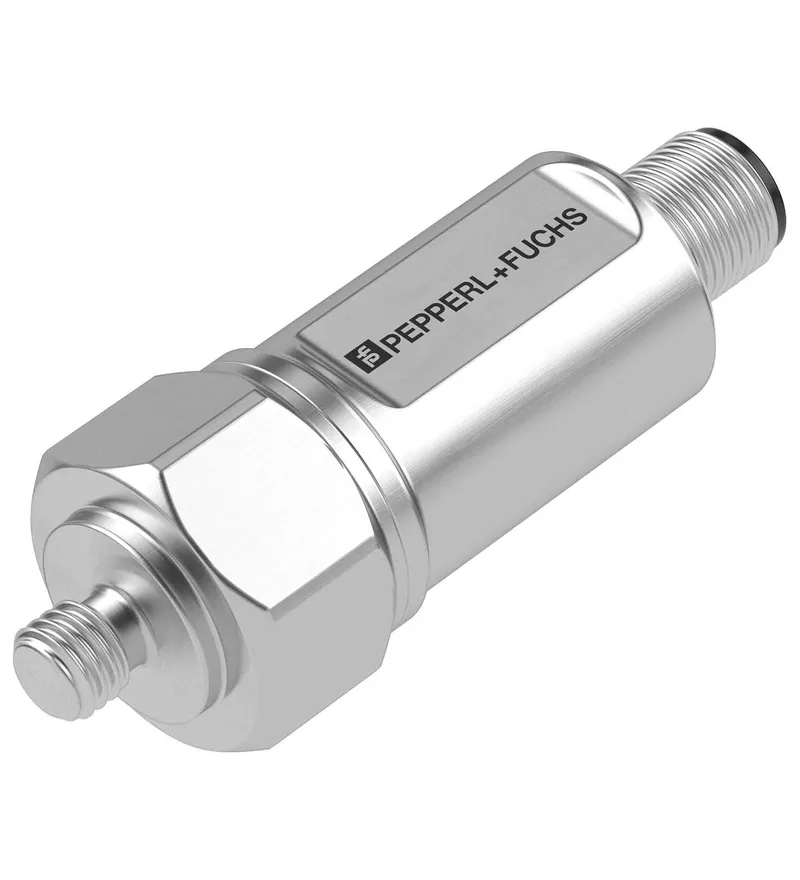

Pepperl Fuchs VIM32PL-E1V16-0RE-I421V14
Vibration sensor
- MPN
- VIM32PL-E1V16-0RE-I421V14
- Category
- Vibration Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VIM32PL-E1V16-0RE-I421V14?
Analog current output
Screw-in thread for simple installation
Simple electrical commissioning
Rugged stainless steel housing
Vibration velocity in mm/s (rms) acc. to DIN ISO 10816/20816
Switching output
Vibration sensor with switching output and analog current output, Series: Performance Line, Measured variable: Vibration velocity, Output type: analog output, current , output of the vibration variable, Output type: PNP, Ordinary Location: E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. , adapters providing field wiring on request, Adaption: M8 x 1.25 external thread , , Connection type: plug
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70146714-100000 |
| Type | Vibration sensor |
| Measuring technology | MEMS |
| Series | Performance Line |
| Measured variable | Vibration velocity |
| Measuring range: Vibration velocity | 0 ... 16 mm/s v-rms |
| Measurement accuracy | ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measuring range greater than 8 mm/s |
| Cross-sensitivity | < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis |
| Frequency range | 10 ... 1000 Hz |
| Averaging time | for v-rms: 2 s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 329 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Fusing | external fuse is required: 1 A , fast acting , 30 V DC |
| Operating voltage | 18 ... 30 V DC UB |
| Current consumption | max. 220 mA |
| Power consumption | max. 6.6 W P0 |
| Time delay before availability | 2 s (rms filter is calculated intially with measurement data before they are available at the output) tv |
| Surge protection | up to 2 kV |

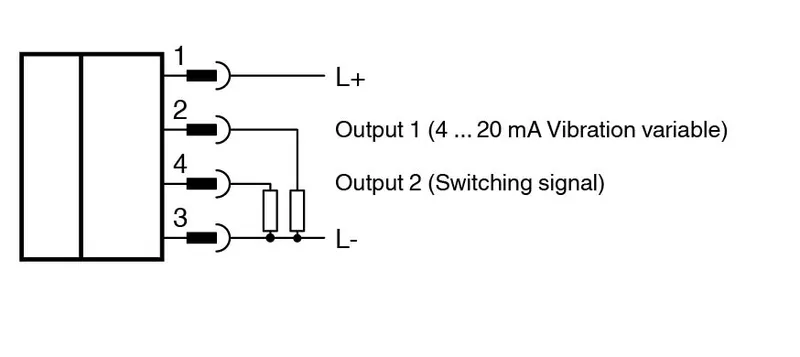

Output 1
| Output type | analog output, current output of the vibration variable |
| Output current | 4 ... 20 mA |
| Load resistor | ≤ 500 Ω |
Output 2
| Output type | PNP |
| Switching function | Normally closed (NC) |
| Operating current | ≤ 100 mA |
| Voltage drop | < 2 V |
| Switching threshold | 1.6 mm/s ( 10 % of the measuring range ) |
| Preset response time | 2 s (minimum time for a vibration event above the switching threshold so that the output switches) |
| Short-circuit protection | yes |
Standard conformity
| Degree of protection | DIN EN 60529, IP66, IP67 |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 1000 Hz |
| Vibration evaluation | DIN ISO 10816/20816 |
Approvals and certificates
| UL approval: Ordinary Location | E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on request |
| UL approval: Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP66 / IP67 only in connected state |
| Connector: Threading | M12 |
| Connector: Number of pins | 4 |
| Mass | approx. 100 g |

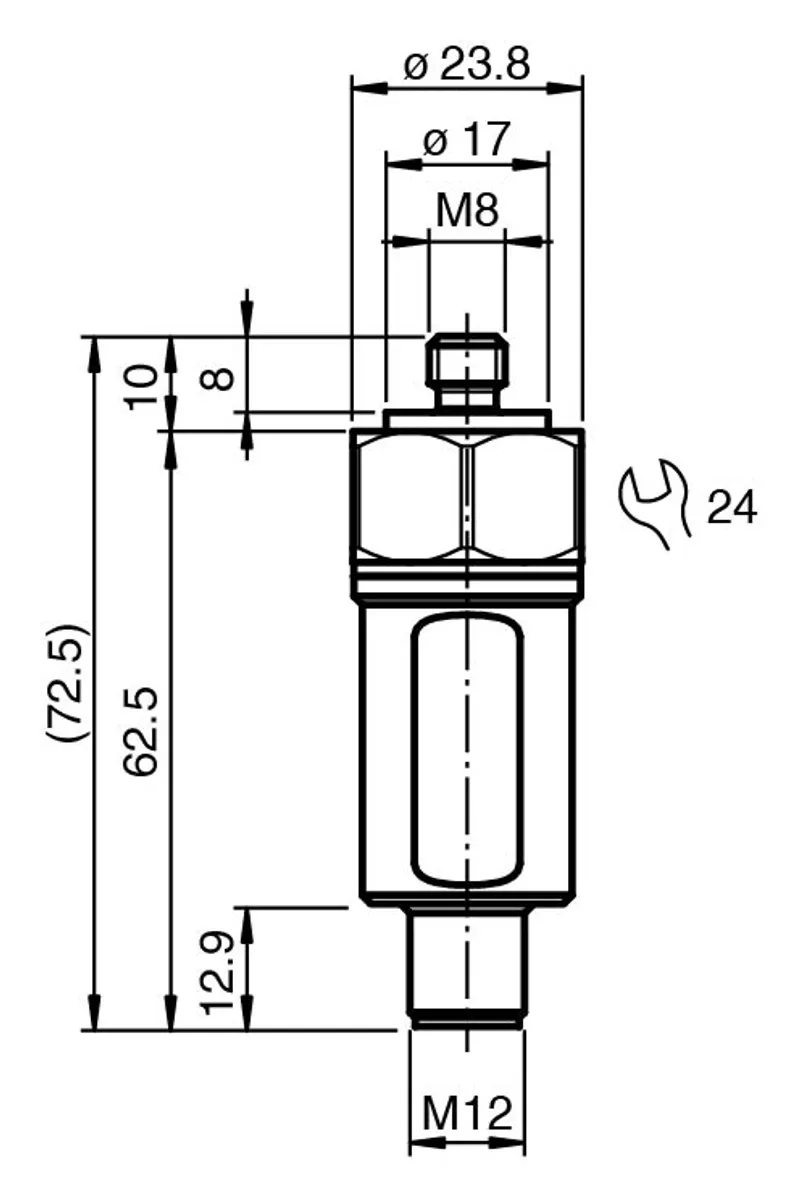

| Dimensions: Length | 72.5 mm |
| Dimensions: Diameter | 23.8 mm |
