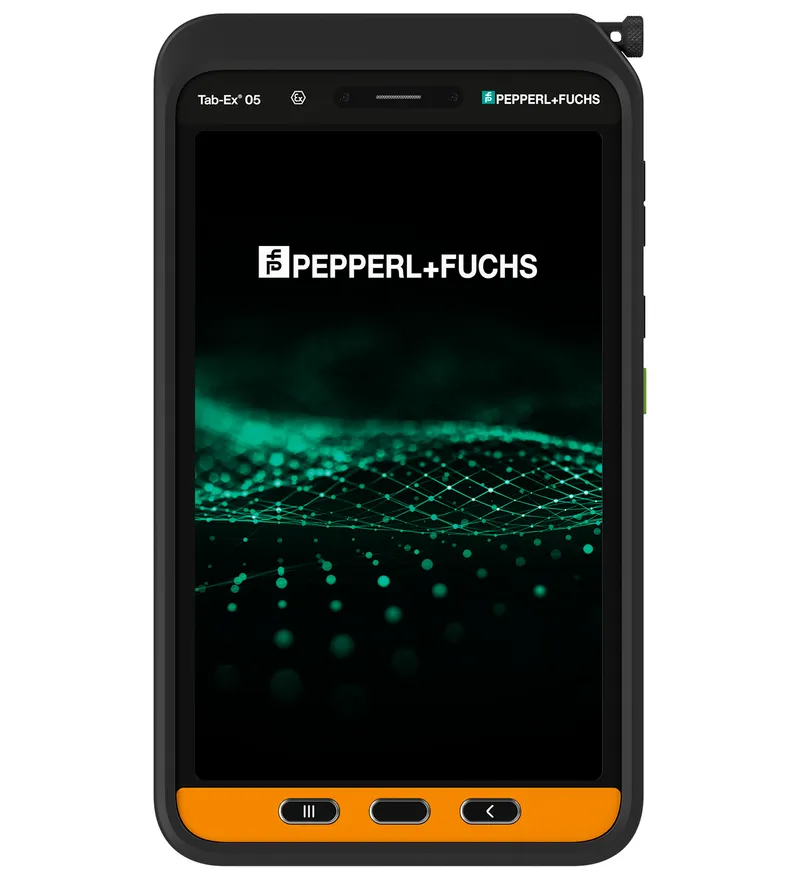

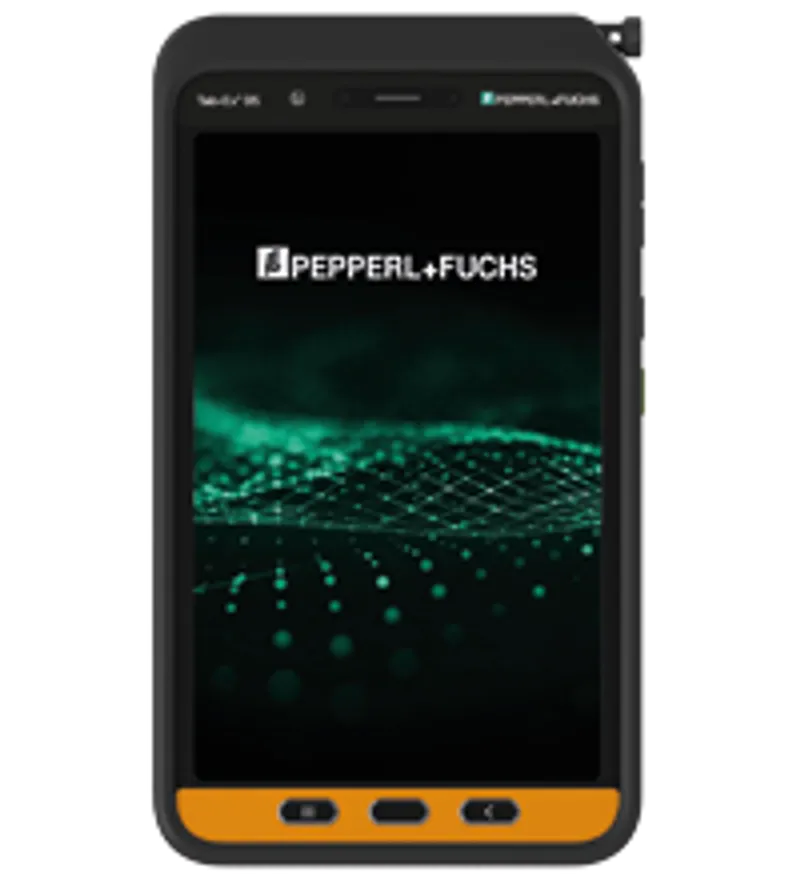

Pepperl Fuchs TAB-EX05-D2--*

Tablet computer

MPN: TAB-EX05-D2--*
Category: Division 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs TAB-EX05-D2--*?

Android™ 15 operating system

Portable rugged tablet with brilliant 8” display

Comprehensive security thanks to Samsung KNOX

Suitable for use with gloves

Google ARCore

Fast data transfer via 5G connectivity

Robust and protected against falls according to IP68 and MIL-STD-810H

Function button for quick access

Division 2, 8 inch display, Android™

Specifications

Hardware

Order code (Pepperl+Fuchs part number)	T221647
Processor	Exynos 1380 (S5E8835) Octa-Core 4 x 2.4 GHz + 4 x 2.0 GHz 64 Bit, 5 nm
RAM	6 GB LPDDR4X
Camera: Front camera	5 MP 1/5.0" sensor, F2.2 aperture
Camera: Main camera	13 MP 1/3.0" sensor, F1.9 aperture, autofocus, 8x digital zoom
Camera: Video recording resolution	UHD 4K (3840 x 2160) @ 30 fps
Internal data memory	128 GB UFS
Optional data memory	microSD (up to 1 TB)
Sensors	Accelerometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, RGB Light Sensor, Proximity Sensor
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

Display: Refresh rate	Standard (60 Hz) / Adaptive (up to 120 Hz)
Display: Touch screen technology	Capacitive
Display: Panel type	TFT
Display: Screen size	20.31 cm / 8 inch
Display: Aspect ratio	16:10
Display: Screen resolution	1920 x 1200 (WUXGA)
Display: Pixel density	283 ppi
Display: Brightness	max. 600 cd/m2 (nits)
Display: Colors	16 Mio.
Display: Screen protection	Corning® Gorilla ® Glass 5
Display: Special Features	Can be operated while wearing gloves Dark Mode, Adaptive Brightness, Eye Comfort, Screen Saver, Screen Zoom, Multi-Touch
Key	Function button, Active button

Electrical specifications

Battery type	Li-ion 3.8 V 5050 mAh 18.87 Wh (typically)
Operating duration	up to 14 h

Interface

I/O ports

USB 2.0 (Type-C) 3.5 mm jack connection POGO Pin

Communication

Mobile standard	Also available in a Wi-Fi only version.
4G	1 / 2 / 3 / 4 / 5 / 7 /8 / 12 / 13 / 14 / 20 / 25 / 26 / 28 / 29 / 30 / 40 / 41 / 48 / 66 / 71
5G	n2 / n5 / n12 / n25 / n30 / n41 / n48 / n66 / n71 / n77 / n78
WLAN	WLAN 802.11 a/b/g (2.4 GHz), WiFi 4, 5, 6 (2.4 GHz + 5 GHz ), HE80, MIMO, 1024 QAM, WiFi Direct, Mobile Hotspot, Hotspot 2.0, Auto Hotspot
Bluetooth	Bluetooth® 5.3
GPS sensor	GPS, Glonass, Beidou, Galileo
NFC	yes
Connections	Wireless DeX
SIM card	Nano (4FF) / eSIM (optional)

Software

Operating system

Android™ 15 Android™ Enterprise Recommended verified device Google ARCore ready

Cybersecurity

IT security: Biometrics	Facial recognition Fingerprint sensor
IT security: Updates	Security updates until 2032 Operating system upgrades up to Android™ 22
IT security: Mobile device protection	Samsung KNOX 3.10

Ambient conditions

Ambient temperature

-20 ... 50 °C (-4 ... 122 °F)

Mechanical specifications

Degree of protection	IP68 according to EN/IEC 60529 MIL-STD-810H
Mass	530 g
Dimensions: Height	14 mm
Dimensions: Width	130 mm
Dimensions: Length	228 mm

International approvals

SGS approval: SGS certificate	SGSNA/25/SUW/00031X
SGS approval: Approved for	Class I and II, Division 2, Class III, Division 1 & 2, Groups A-D, F, and G, T5 20°C = Ta = 50°C Zone 2 Group IIC T5 Zone 22 Group IIIB T100°C
Approved for	USA or Canada

General information

Scope of delivery

Tab-Ex® 05 Battery Ex-protective cover S Pen USB cable Charger Documentation Micro SD flash card (optional)
