Home / Pepperl Fuchs / Division 2 / Pepperl Fuchs TAB-EX04PRO-D2*

Pepperl Fuchs TAB-EX04PRO-D2*

Tablet computer

MPN: TAB-EX04PRO-D2*
Category: Division 2

Price and lead time confirmed within 1 business day

Discontinued by Pepperl Fuchs — we can still source the original TAB-EX04PRO-D2* (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs TAB-EX04PRO-D2*?

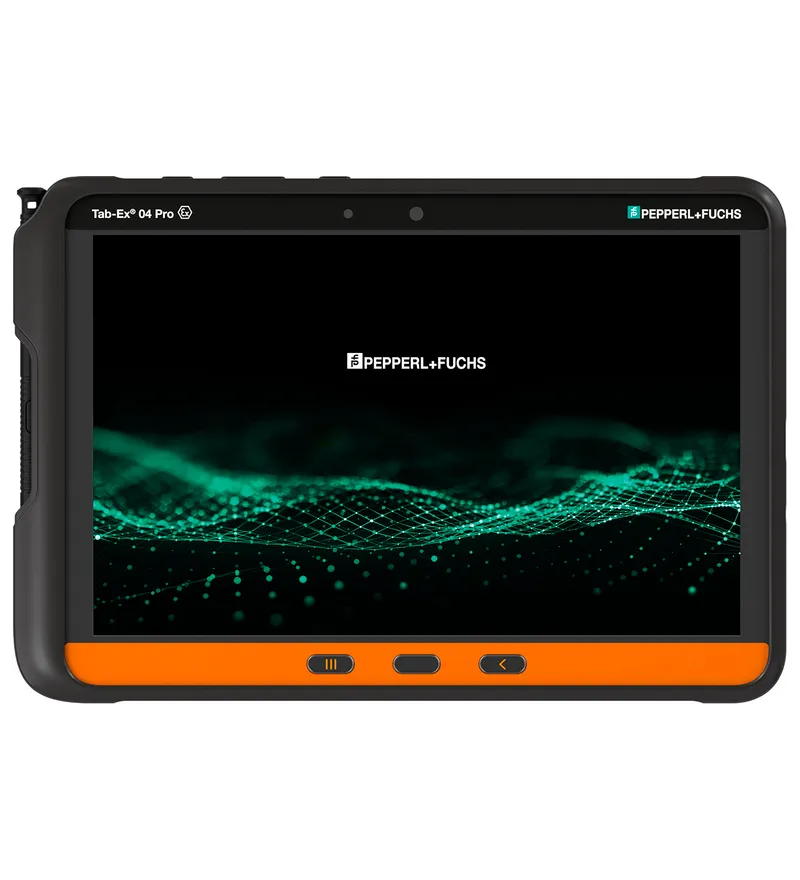

Rugged 10.1 " (25.66 cm) tablet for hazardous areas

Fast wireless data connection with 5G and Wi-Fi 6

Latest available Android™ version for this device

13 MP rear camera + 8 MP front camera

Comprehensive security thanks to Samsung KNOX

Suitable for use with gloves

Samsung DeX Mode

Replaceable battery

MIL-STD-810H

Memory expansion up to 1 TB possible

Replaceable SIM

Carrier approvals: AT&T, T-Mobile, Verizon

Division 2, 10.1 inch display, Android™

Pepperl+Fuchs has archived the TAB-EX04PRO-D2*: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.

Specifications

Hardware

Order code (Pepperl+Fuchs part number)	T217705
Processor	Octa-Core, 4 x 2.4 GHz + 4 x 1.8 GHz Qualcomm Snapdragon SM7325-2-AB
RAM	4 GByte or 6 GByte
Camera: Front camera	8 MP
Camera: Main camera	13 MP Autofocus
Camera: Video recording resolution	UHD 4K (3840 x 2160) @ 30 fps
Scanner	Fingerprint scanner
Internal data memory	WWAN: 128 GByte, available memory 104.6 GByte Wi-Fi: 64 GByte, available memory 45.6 GByte
Optional data memory	Micro SD flash card up to 1 TByte
Sensors	Accelerometer, barometer, fingerprint sensor, position sensor, compass, hall sensor, ambient light sensor, proximity sensor
Lifecycle	Discontinued — archived by Pepperl+Fuchs

Indicators/operating means

Display: Touch screen technology	Capacitive multitouch
Display: Panel type	TFT
Display: Screen size	10.1" (25.66 cm)
Display: Aspect ratio	21.6:18
Display: Resolution	1920 x 1200 (WUXGA)
Display: Brightness	480 cd/m2 (nit)
Display: Colors	16 Mio.
Display: Special Features	Can be operated while wearing gloves

Electrical specifications

Battery type	Li-Ion battery 28.12 WH 3.8 V 7400 mAh
Operating duration	up to 15 h

Communication

Mobile standard: 3G	UMTS Bands: 850, 900, 1800, 1900
Mobile standard: 4G	LTE Bands: B2, B4, B5, B13, B48 (for US model), B66 Domestic LTE Roaming Bands: B7, B12, B14, B25, B26, B29, B41, B71 Global LTE Roaming Bands: B1, B3, B8, B17, B20, B28
Mobile standard: 5G	5G NR Bands FR1: n2, n5, n25, n41, n66, n71, n77, n78
WLAN	802.11 a/b/g/n/ac/ax (2,4 GHz + 5 GHz), HE80, MIMO, 1024-QAM
Bluetooth	5.2 (BLE supported)
GPS sensor	GPS, GLONASS, Beidou, Galileo, QZSS
USB	USB 3.2 (Type C)
Connections	Wi-Fi Direct, NFC, ANT+
SIM card	Optional:1x Nano SIM (4FF)

Software

Operating system	Android™ 15
Languages	Deutsch , English (default)

Cybersecurity

IT security: Mobile device protection

Samsung KNOX 3.x

Ambient conditions

Ambient temperature

-20 ... 50 °C (-4 ... 122 °F)

Mechanical specifications

Degree of protection	IP68 according to EN/IEC 60529 MIL-STD-810H
Mass	850 g
Dimensions: Height	15 mm
Dimensions: Width	243.5 mm
Dimensions: Length	170.2 mm

International approvals

SGS approval: SGS certificate	SGSNA/23/SUW/00079X
SGS approval: Approved for	Class I, Division 2, Groups A - D T5
Approved for	Northern America or Canada

General information

Scope of delivery

Tab-Ex 04 Pro incl. battery S Pen Charger Documentation

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

ManualPDF · 2.6 MB

TAB-EX04PRO-D2*: frequently asked questions

Can I still buy the TAB-EX04PRO-D2* now that it is discontinued?

Yes. Pepperl Fuchs has discontinued the TAB-EX04PRO-D2*, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TAB-EX04PRO-D2* be shipped?

TAB-EX04PRO-D2* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TAB-EX04PRO-D2* in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TAB-EX04PRO-D2* and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TAB-EX04PRO-D2*, subject to availability and destination.
