Pepperl Fuchs PROSCAN/32
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Automatic Doors and Access Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PROSCAN/32 be shipped?
PROSCAN/32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PROSCAN/32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PROSCAN/32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PROSCAN/32, subject to availability and destination.

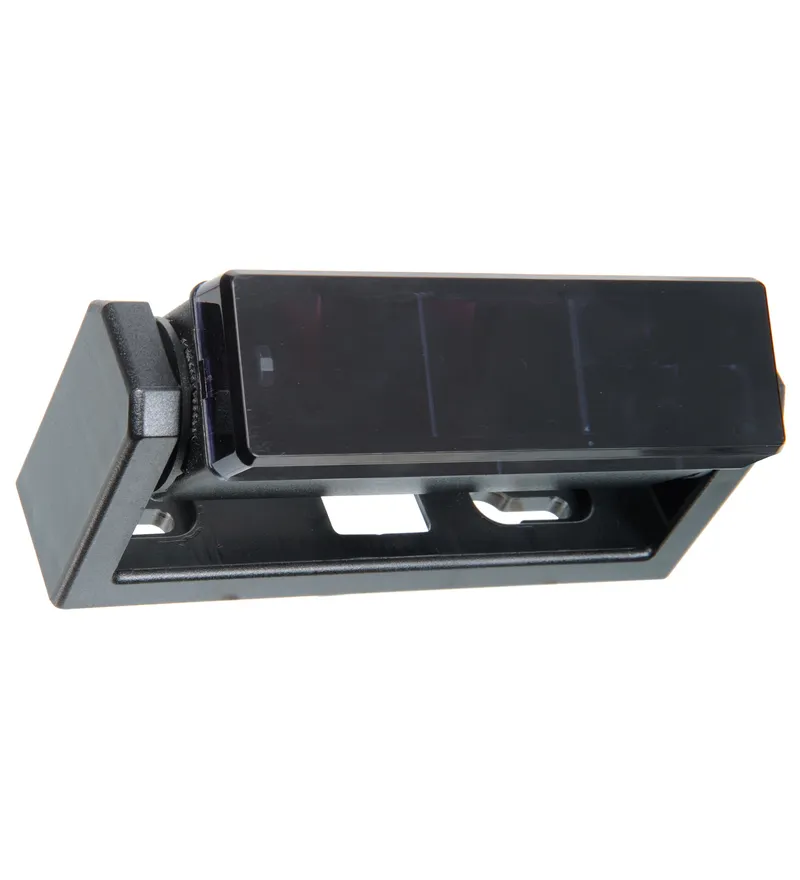

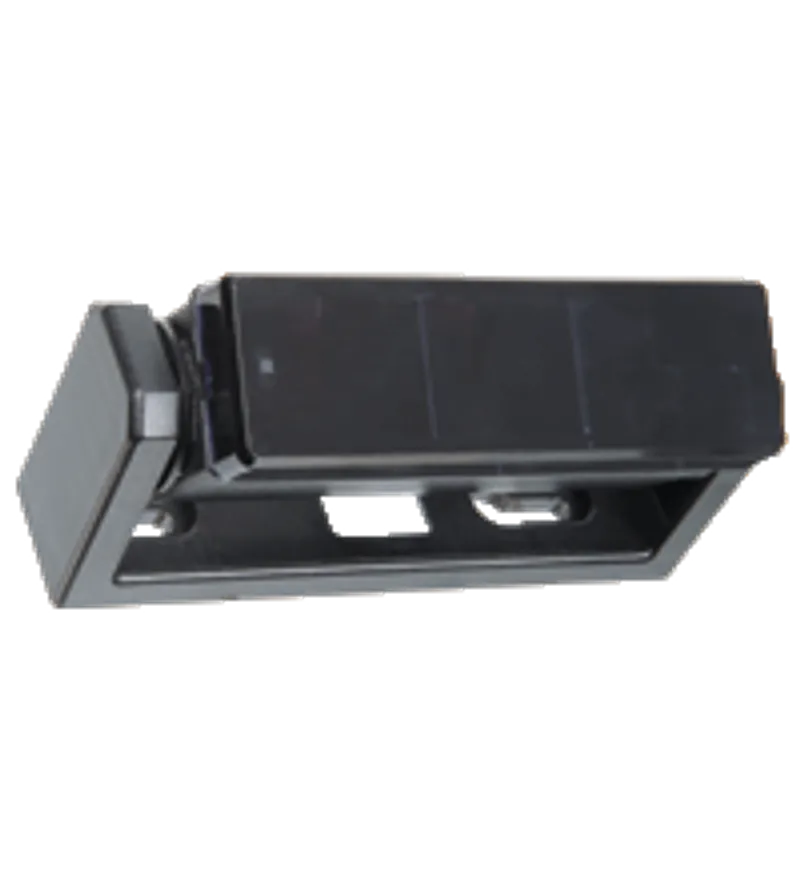

Active infrared scanner. Fan-shaped detection field with up to 12 beams, Closing safety monitoring over the complete door width, Adjustable detection fields for different door widths, Automatic drift compensation, Version with test input, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 12 ... 38 V DC, Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector, Connection: 5 m fixed cable. Detection field: total field: 2300 mm x 80 mmleft/right field: 1150 mm x 80 mmcenter field: 1000 mm x 80 mm || (installation height: 2 m). Light source: 12 x IRED. Light type: modulated infrared light. Teach-in time: approx. 4 s. Open time: 3 min/10 s, programmable. Accessories provided: Swivel bracket, Mounting bracket. MTTFd: 780 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED red: on for object detection, flashes during teaching phase. Control elements: Programmble switch for switching type, open time, detection field. Operating voltage: 12 ... 38 V DC. Ripple: 10 %. No-load supply current: 100 mA. Test input: emitter deactivation with +Ub. Switching type: Output active / inactive programmable. Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector. Switching voltage: 38 V DC. Switching current: 200 mA. Response time: < 50 ms. De-energized delay: 200 ms. Standard conformity: . Product standardEN 60947-5-2FlammabilityFlame retardant in accordance with UN/ECE-R118 or ISO 14572: . Product standard: EN 60947-5-2. Flammability: Flame retardant in accordance with UN/ECE-R118 or ISO 14572. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Mounting height: 1000 ... 2500 mm. Degree of protection: IP52. Connection: 5 m fixed cable. Material: . HousingPC/ABSOptical facePMMA: . Housing: PC/ABS. Optical face: PMMA. Mass: approx. 100 g. Dimensions: . Height45 mmWidth102 mmDepth32 mm: . Height: 45 mm. Width: 102 mm. Depth: 32 mm
Specifications
General specifications
| Detection field | total field: 2300 mm x 80 mmleft/right field: 1150 mm x 80 mmcenter field: 1000 mm x 80 mm || (installation height: 2 m) |
| Light source | 12 x IRED |
| Light type | modulated infrared light |
| Teach-in time | approx. 4 s |
| Open time | 3 min/10 s, programmable |
| Accessories provided | Swivel bracket, Mounting bracket |
Functional safety related parameters
| MTTFd | 780 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 60 % |
Indicators/operating means
| Function indicator | LED red: on for object detection, flashes during teaching phase |
| Control elements | Programmble switch for switching type, open time, detection field |
Electrical specifications
| Operating voltage | 12 ... 38 V DC UB |
| Ripple | 10 % |
| No-load supply current | 100 mA I0 |
Input
| Test input | emitter deactivation with +Ub |
Output
| Switching type | Output active / inactive programmable |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | 38 V DC |
| Switching current | 200 mA |
| Response time | < 50 ms |
| De-energized delay | 200 ms toff |
Compliance with standards and directives
| Standard conformity | |
| Product standardEN 60947-5-2FlammabilityFlame retardant in accordance with UN/ECE-R118 or ISO 14572 | Product standard |
| Product standard | EN 60947-5-2 |
| Flammability | Flame retardant in accordance with UN/ECE-R118 or ISO 14572 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Mounting height | 1000 ... 2500 mm |
| Degree of protection | IP52 |
| Connection | 5 m fixed cable |
| Material | |
| HousingPC/ABSOptical facePMMA | Housing |
| Housing | PC/ABS |
| Optical face | PMMA |
| Mass | approx. 100 g |

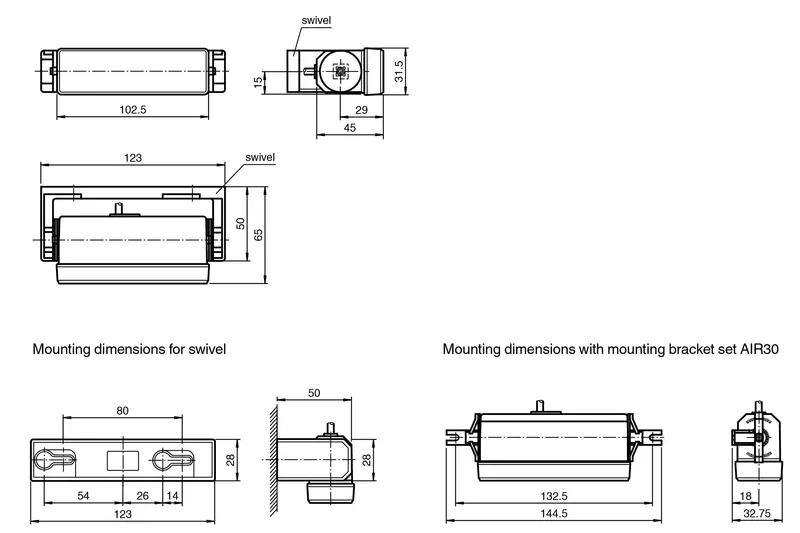

| Dimensions | |
| Height45 mmWidth102 mmDepth32 mm | Height |
| Height | 45 mm |
| Width | 102 mm |
| Depth | 32 mm |
