Pepperl Fuchs OIZ-DM500
Mounting aid
- MPN
- OIZ-DM500
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs OIZ-DM500?
Deviation mirror enables reading from a short distance
Slotted holes for flexible mirror angle adjustment

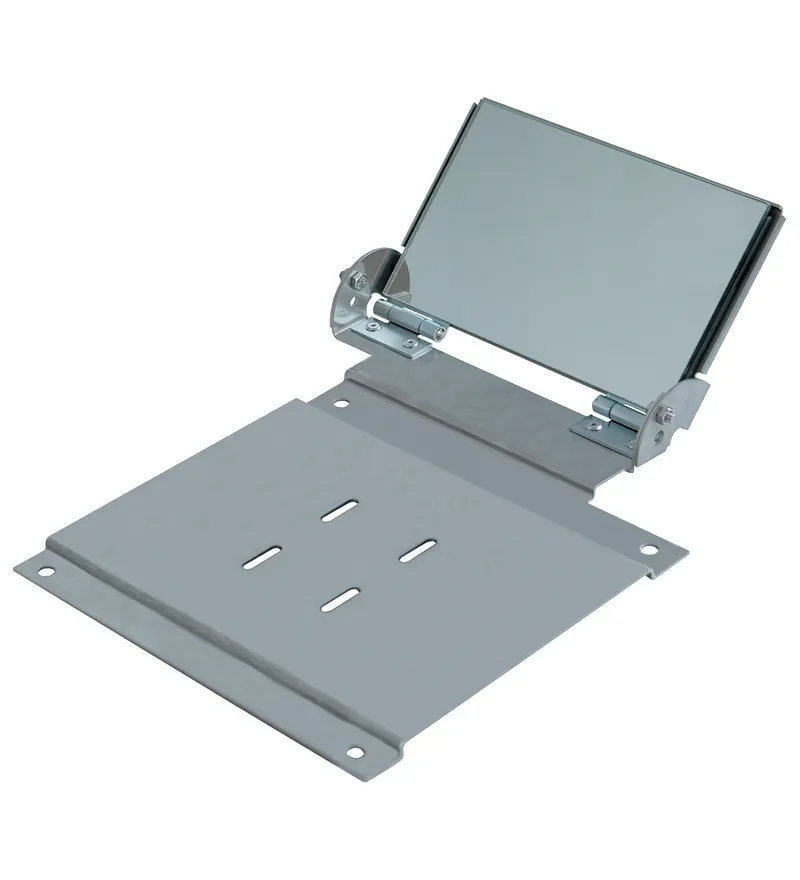

Mounting bracket with deviation mirror for OIT500, Deviation mirror enables reading from a short distance, Slotted holes for flexible mirror angle adjustment
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70176203 |
| Read distance | min. 130 mm measured from the floor for OIT500 |
| Reading field | 170 mm x 100 mm at a distance of 130 mm when using OIT500-F113-B17-CB |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Material | high-grade steel, Deviation mirror: glass |
| Mass | approx. 2420 g |
Suitable series
| Series | OIT |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

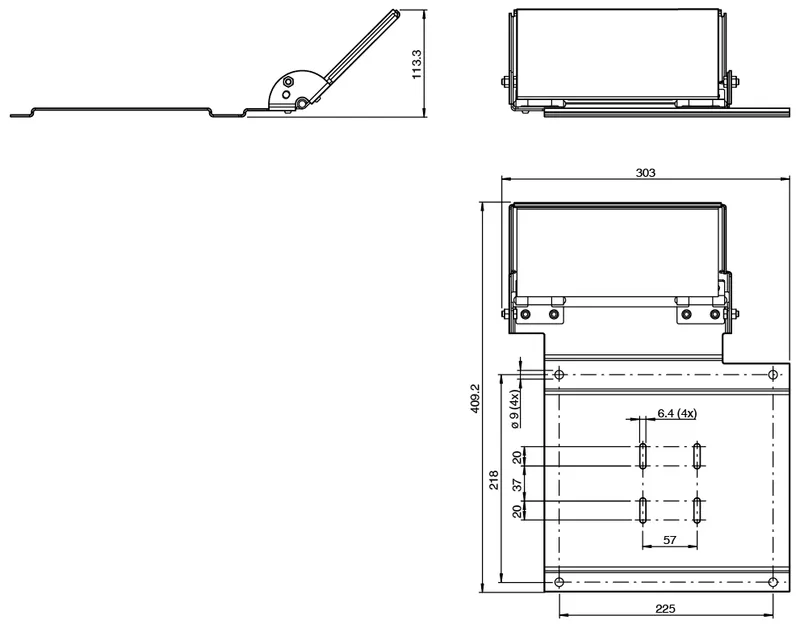

CAD & dimension drawings
