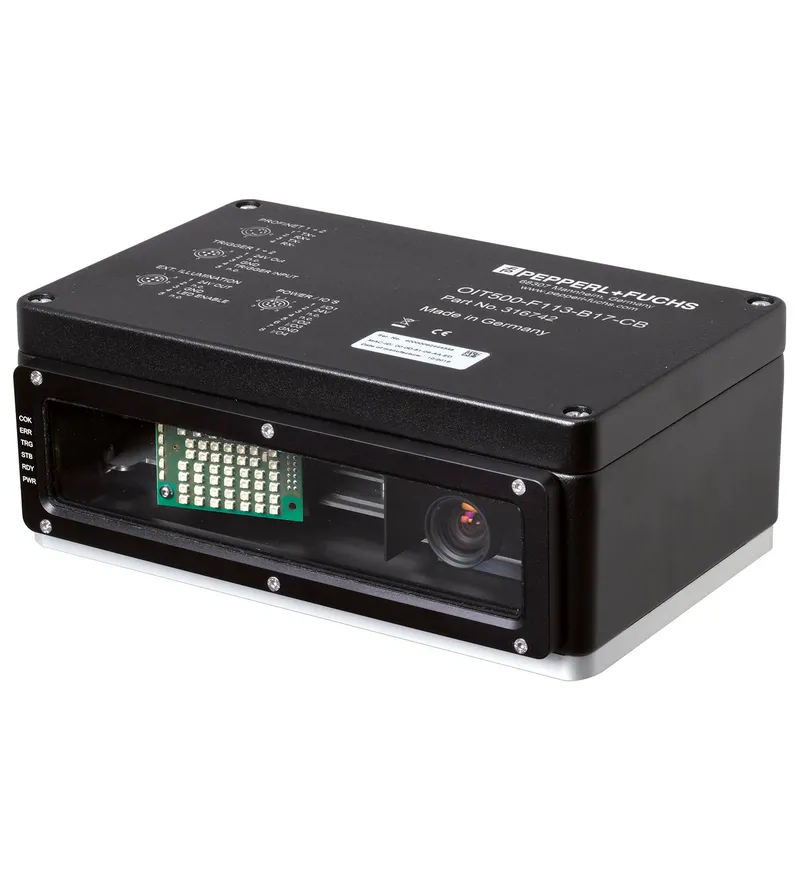

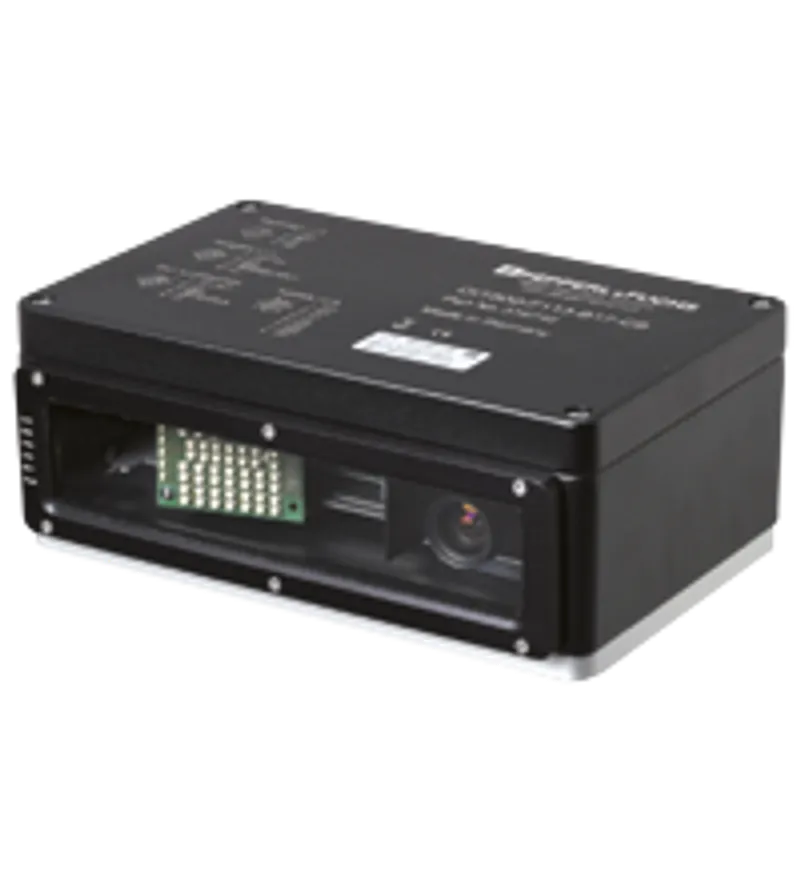

Pepperl Fuchs OIT500-F113-B17-CB

High temperature identification system

MPN: OIT500-F113-B17-CB
Category: Ethernet Devices

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs OIT500-F113-B17-CB?

High-temperature code carrier up to 500 °C (932 °F)

PROFINET interface with integrated switch

Connection to Ethernet TCP/IP

Optional reading of CB3 code plates

Sturdy and compact design

Integrated illumination

High operating range

Large sensing range

High depth of focus

Optical high temperature identification system, 300 to 450 mm

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	316742
Light source	Integrated LED lightning
Light type	Infrared
Symbologies	CB1: perforated matrix 6 x 6 6 decimal digits
Read distance	CB1: 300 ... 520 mm
Reading field	335 mm x 185 mm at max. read distance
Evaluation frequency	5 Hz
Target velocity	triggered max. 1.5 m/s
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	86 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

LED indication

status , Function , communication

Electrical specifications

Operating voltage	24 V DC ± 15% , PELV UB
Operating current	200 mA without output drivers IB

Interface 1

Interface type	100 BASE-TX
Protocol	PROFINET IO Real-Time (RT) Conformance Class B Netload Class III
Transfer rate	100 Bit/s

Interface 2

Interface type	Ethernet
Protocol	TCP/IP
Transfer rate	100 MBit/s

Input

Input voltage	24 V DC low: 12 V
Number/Type	2 trigger input and supply max. 4 switching inputs

Output

Number/Type	supply max. 200 mA and 1 control output for External lighting max. 4 switching outputs programmable
Switching voltage	operating voltage minus voltage drop typ. 1.1 V
Switching current	100 mA each output

Conformity

Shock resistance	EN 60068-2-27:2009
Vibration resistance	EN 60068-2-6:2008
Emitted interference	EN 61000-6-4:2007+A1:2011
Noise immunity	EN 61000-6-2:2005
Photobiological safety	EN 62471:2008 exempt group

Approvals and certificates

CE conformity

Ambient conditions

Ambient temperature	0 ... 60 °C (32 ... 140 °F)
Storage temperature	-20 ... 75 °C (-4 ... 167 °F)

Mechanical specifications

Degree of protection	IP67

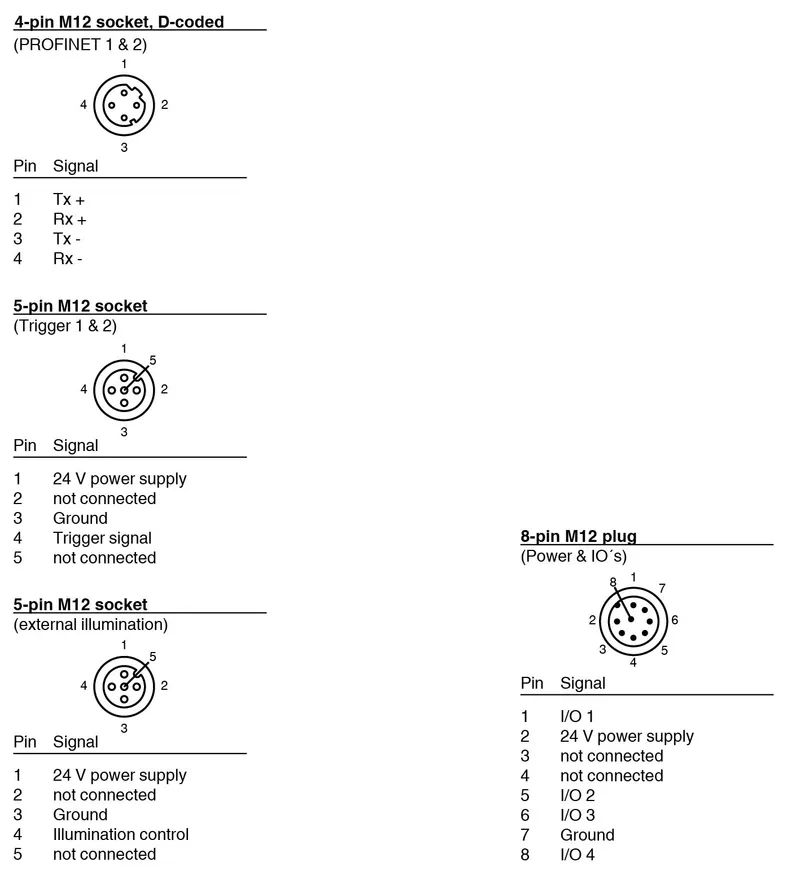

Connection	8-pin, M12x1 connector, standard (supply+IO) 2 x 4-pin, M12x1 socket, D-coded (LAN) 3 x 5-pin, M12x1 socket, A-coded ( Trigger , External lighting )
Material: Housing	diecast aluminum powder coated
Mass	approx. 4000 g
Dimensions: Height	101 mm
Dimensions: Width	261 mm
Dimensions: Depth	171 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

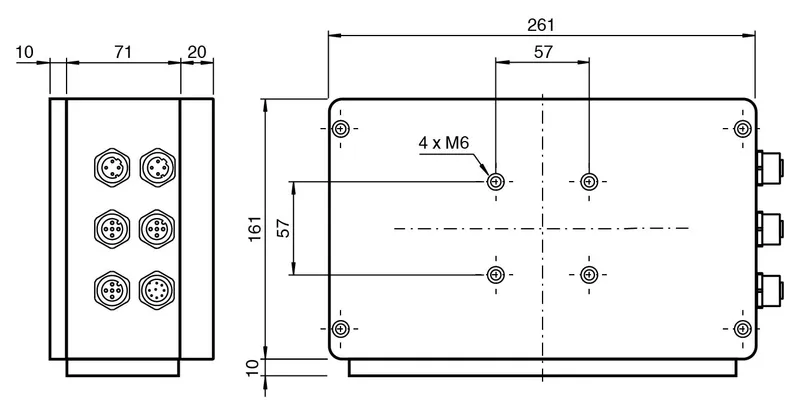

CAD & dimension drawings
