Pepperl Fuchs OIC-C10V2A-CB1-yyyyyy-zzzzzz
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for Optical Identification |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OIC-C10V2A-CB1-yyyyyy-zzzzzz be shipped?
OIC-C10V2A-CB1-yyyyyy-zzzzzz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OIC-C10V2A-CB1-yyyyyy-zzzzzz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OIC-C10V2A-CB1-yyyyyy-zzzzzz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OIC-C10V2A-CB1-yyyyyy-zzzzzz, subject to availability and destination.

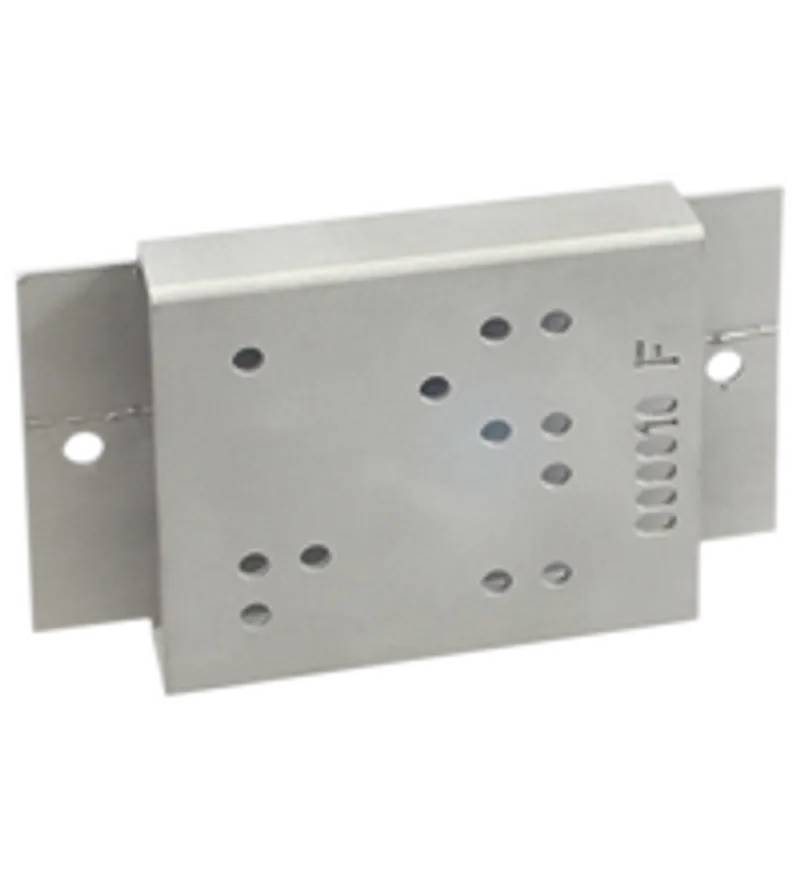

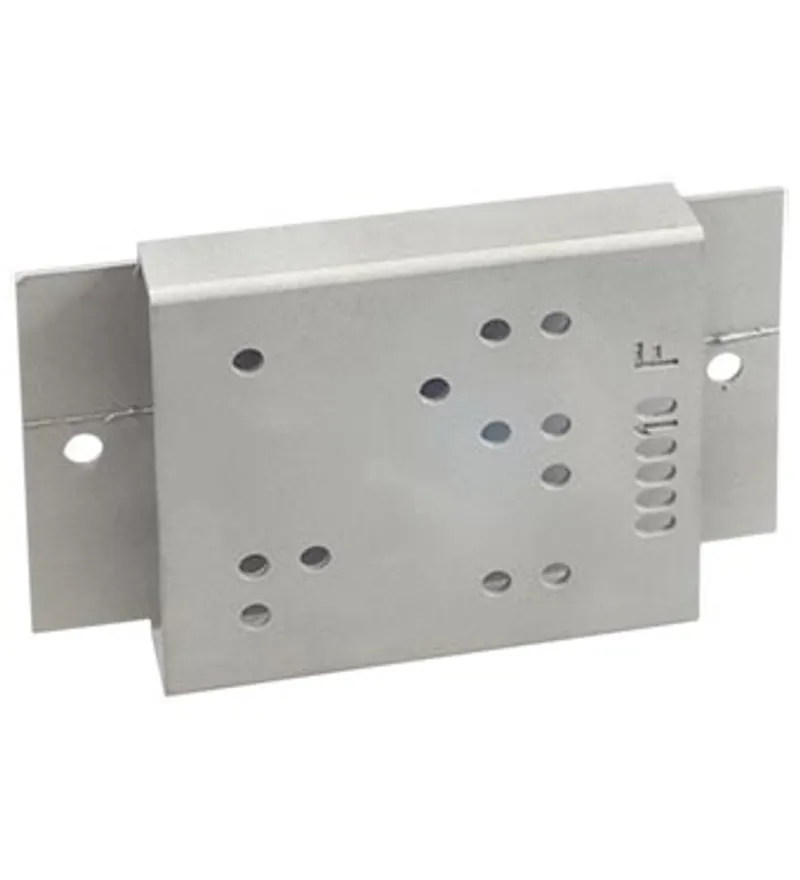

Code carrier. Code carrier for optical high-temperature identification system, stainless steel. Read distance: 250 ... 450 mm Depending on the respective read device. Data storage: Range of values: 6-character numerical,between 000.000 and 999.999 plus 1 check digit. Ambient temperature: -25 ... 500 °C (-13 ... 932 °F). Material thickness: 2 mm. Material: . HousingStainless steel V2A: . Housing: Stainless steel V2A. Installation: Parallel to the reader at the respective reading distance Tilt angle 10° max.. Mass: approx. 280 g. Note: Coating of the code sheets is possible, provided that reliable hole detection is guaranteed.. Hole diameter: 5 mm. Ordering information: yyyyyy: starting value zzzzzz: number The final value is determined as follows:Final value = start value + number - 1Note: The code plate numbers are always increased by the value 1 from the start value to the final value.
Specifications
General specifications
| Read distance | 250 ... 450 mm Depending on the respective read device |
| Data storage | Range of values: 6-character numerical,between 000.000 and 999.999 plus 1 check digit |
Ambient conditions
| Ambient temperature | -25 ... 500 °C (-13 ... 932 °F) |
Mechanical specifications
| Material thickness | 2 mm |
| Material | |
| HousingStainless steel V2A | Housing |
| Housing | Stainless steel V2A |
| Installation | Parallel to the reader at the respective reading distance Tilt angle 10° max. |
| Mass | approx. 280 g |
| Note | Coating of the code sheets is possible, provided that reliable hole detection is guaranteed. |
| Hole diameter | 5 mm |
General information
| Ordering information | yyyyyy: starting value zzzzzz: number The final value is determined as follows:Final value = start value + number - 1Note: The code plate numbers are always increased by the value 1 from the start value to the final value. |
