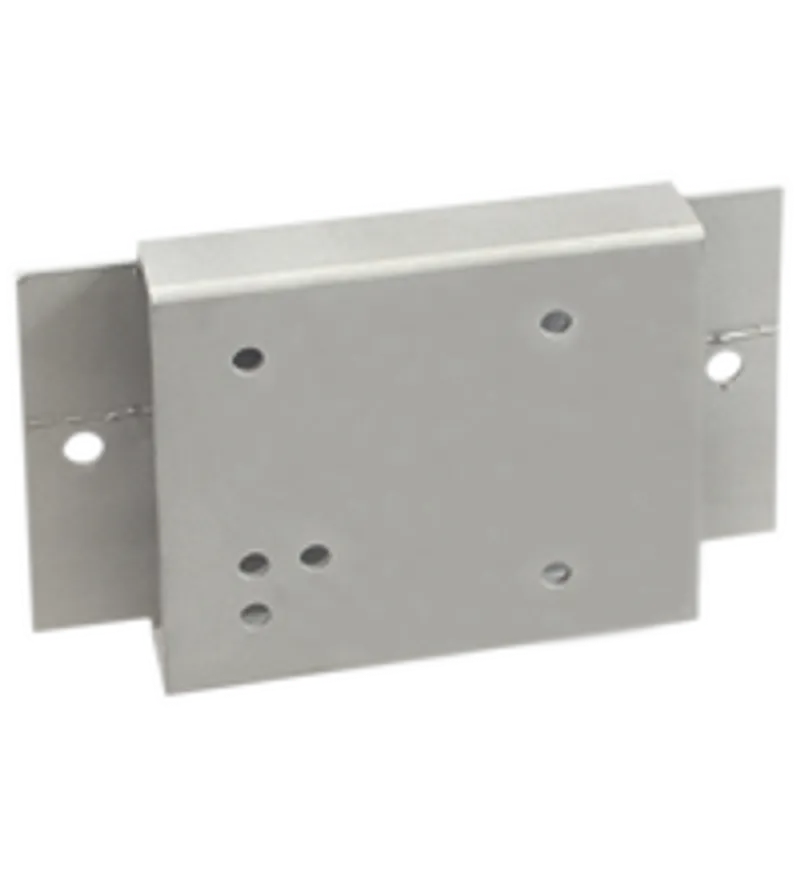

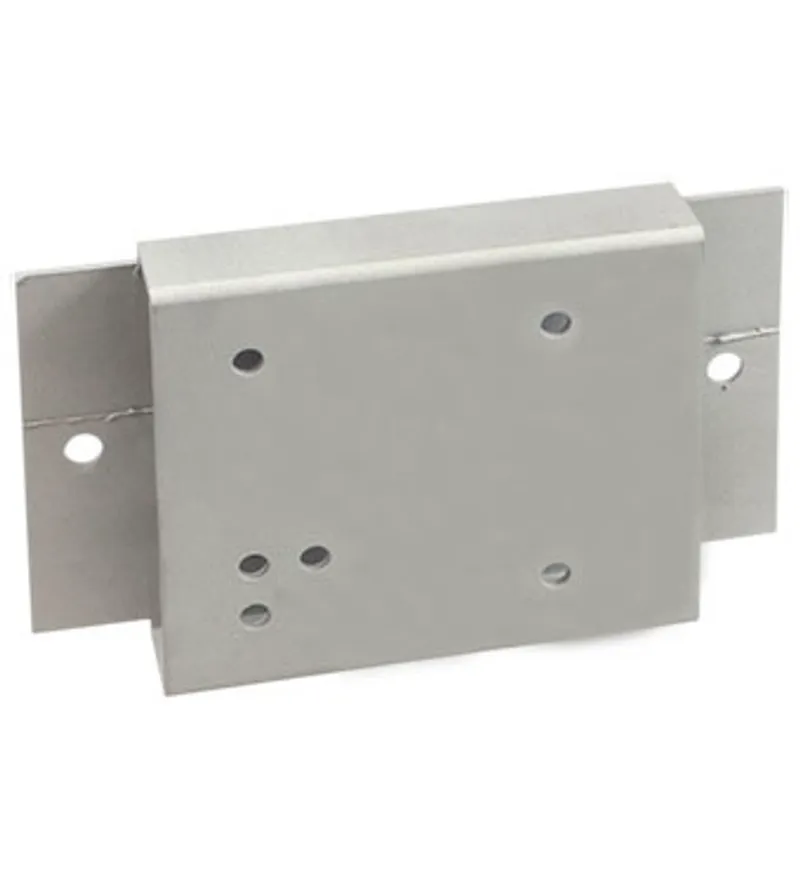

Pepperl Fuchs OIC-C10V2A-CB1-BLANK
Code carrier
- MPN
- OIC-C10V2A-CB1-BLANK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs OIC-C10V2A-CB1-BLANK?
Sturdy code carrier for temperatures up to 500 °C (932 °F)
High chemical resistance
Non-rusting
Suitable for cleaning with aggressive and abrasive media
Blank code carrier for self-production for optical high-temperature identification system
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70152022 |
| Read distance | 250 ... 450 mm Depending on the respective read device |
| Data storage | Range of values: 6-character numerical, between 000.000 and 999.999 plus 1 check digit |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -25 ... 500 °C (-13 ... 932 °F) |
Mechanical specifications
| Material thickness | 2 mm |
| Material | Stainless steel V2A |
| Installation | Parallel to the reader at the respective reading distance Tilt angle 10° max. |
| Mass | approx. 280 g |
| Note | Coating of the code sheets is possible, provided that reliable hole detection is guaranteed. |
| Hole diameter | 5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
OIC-C10V2A-CB1-BLANK: frequently asked questions
When can OIC-C10V2A-CB1-BLANK be shipped?
OIC-C10V2A-CB1-BLANK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OIC-C10V2A-CB1-BLANK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OIC-C10V2A-CB1-BLANK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OIC-C10V2A-CB1-BLANK, subject to availability and destination.
