Pepperl Fuchs MB80-12GH50-E2-PUR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MB80-12GH50-E2-PUR be shipped?
MB80-12GH50-E2-PUR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MB80-12GH50-E2-PUR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MB80-12GH50-E2-PUR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MB80-12GH50-E2-PUR, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 80 mm. Installation: flush in non-magnetic metal. Output polarity: DC. Assured operating distance: 20 ... 64.8 mm. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 5000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN 60947-5-2: . Standards: EN 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m ± 100 mm: . Wire end ferrules: yes. Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m ± 100 mm. Mass: 45 g. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 80 mm sn |
| Installation | flush in non-magnetic metal |
| Output polarity | DC |
| Assured operating distance | 20 ... 64.8 mm sa |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 5000 Hz f |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 20 mA I0 |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN 60947-5-2 | Standards |
| Standards | EN 60947-5-2 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable | |
| Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m ± 100 mm | Wire end ferrules |
| Wire end ferrules | yes |
| Cable diameter | 3 mm - 0.2 mm |
| Bending radius | > 12 x cable diameter |
| Material | PUR |
| Color | black |
| Number of cores | 3 |
| Core cross section | 0.14 mm2 |
| Length | 2 m ± 100 mm L |
| Mass | 45 g |

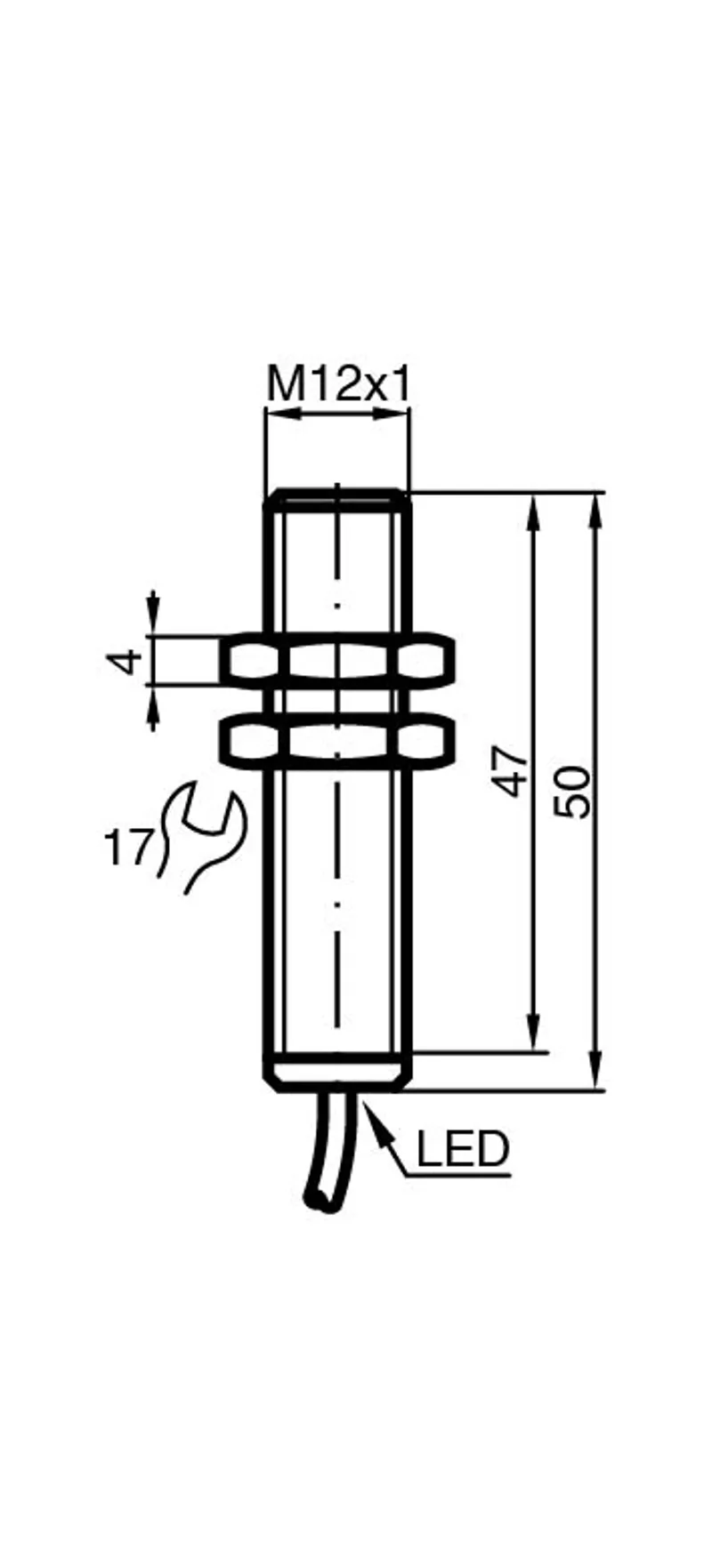

| Dimensions | |
| Length50 mmDiameter12 mm | Length |
| Length | 50 mm |
| Diameter | 12 mm |
