Pepperl Fuchs M-LB-1.NPE.M

Name: Pepperl Fuchs M-LB-1.NPE.M
Brand: Pepperl Fuchs
SKU: M-LB-1.NPE.M

MPN: M-LB-1.NPE.M · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Devices for Supply Line Protection
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can M-LB-1.NPE.M be shipped?

M-LB-1.NPE.M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up M-LB-1.NPE.M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for M-LB-1.NPE.M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for M-LB-1.NPE.M, subject to availability and destination.

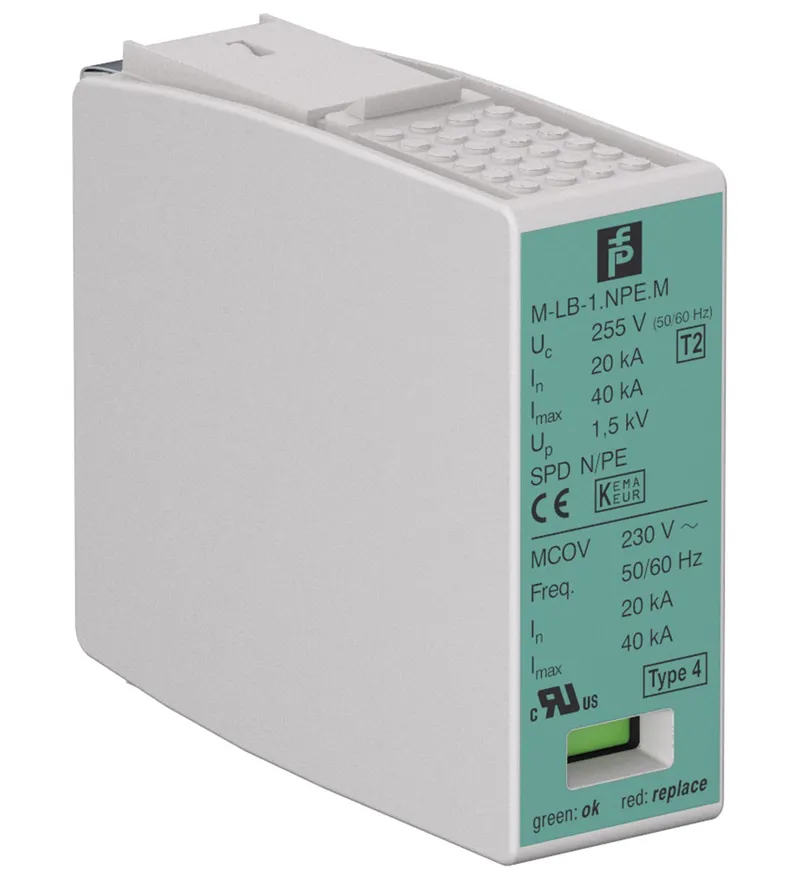

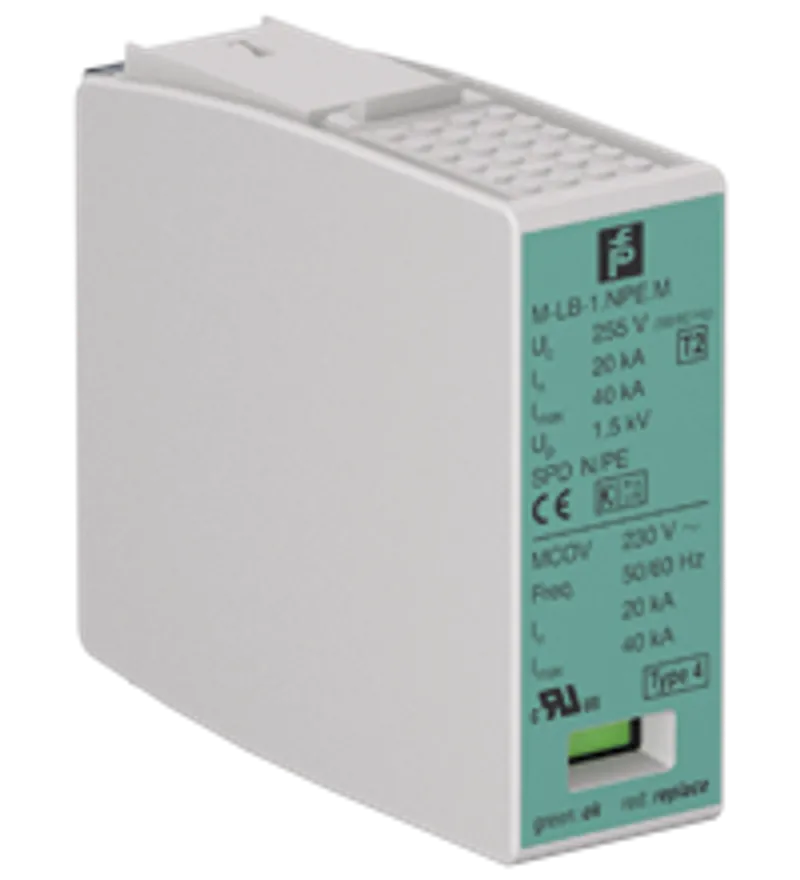

Protection Module for Surge Protection Barrier. Protection module for 1 supply line, Type 2 acc. to EN 61643-11, Exchange device for surge protection barrier M-LB-*.275TT.D, Easy replacement of protection modules wihtout tools, High discharge capacity, Module can be exchanged under voltage (hot swap), Device type: type 2 acc. to EN 61643-11<br>class II acc. to IEC 61643-1, Number of protected supply lines: 1. Device type: type 2 acc. to EN 61643-11class II acc. to IEC 61643-1. Number of protected supply lines: 1. Maximum continuous operating voltage: 255 V AC. Nominal discharge current (8/20 µs): 20 kA. Max. surge current (8/20 µs): 40 kA. Display elements: status display operating state (green)fault indication (red). Low voltage: . Directive 2014/35/EUEN 61643-11:2012: . Directive 2014/35/EU: EN 61643-11:2012. Degree of protection: IEC 60529. Shock resistance: EN 60068-2. Vibration resistance: EN 60068-2. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Degree of protection: IP20. Material: . Housingthermoplastic, color grey , UL 94 V-0: . Housing: thermoplastic, color grey , UL 94 V-0. Mass: approx. 50 g. Dimensions: 18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880. Mounting: in the surge protection barrier M-LB-*.****.*. UL approval: E346845. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Specifications

General specifications

Device type	type 2 acc. to EN 61643-11class II acc. to IEC 61643-1
Number of protected supply lines	1

Electrical specifications

Maximum continuous operating voltage	255 V AC Uc
Nominal discharge current (8/20 µs)	20 kA In
Max. surge current (8/20 µs)	40 kA Imax

Indicators/settings

Display elements

status display operating state (green)fault indication (red)

Directive conformity

Low voltage
Directive 2014/35/EUEN 61643-11:2012	Directive 2014/35/EU
Directive 2014/35/EU	EN 61643-11:2012

Conformity

Degree of protection	IEC 60529
Shock resistance	EN 60068-2
Vibration resistance	EN 60068-2

Ambient conditions

Ambient temperature

-40 ... 80 °C (-40 ... 176 °F)

Mechanical specifications

Degree of protection	IP20
Material
Housingthermoplastic, color grey , UL 94 V-0	Housing
Housing	thermoplastic, color grey , UL 94 V-0
Mass	approx. 50 g
Dimensions	18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880
Mounting	in the surge protection barrier M-LB-.**.
