Devices for Supply Line Protection Parts
Compare Devices for Supply Line Protection
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Number of protected supply lines | Nominal discharge current (8/20 µs) | Max. surge current (8/20 µs) | Mass |
|---|---|---|---|---|---|
| M-LB-2.30.T3.M | 70172496 | 1 | 1 kA In | 2 kA Imax | approx. 50 g |
| M-LB-2.255.T3.M | 70172498 | 1 | 3 kA In | 5 kA Imax | approx. 50 g |
| M-LB-1.NPE.M | 70172494 | 1 | 20 kA In | 40 kA Imax | approx. 50 g |

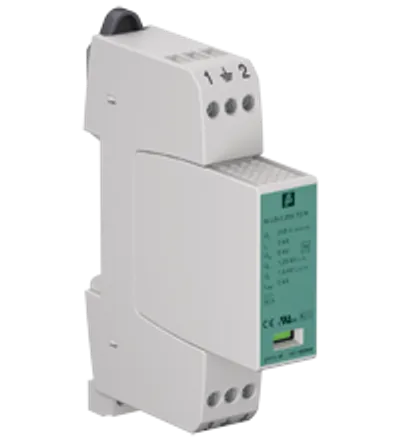

| M-LB-2.255.T3.D | 70174647 | 2 | 3 kA In | 5 kA Imax | approx. 120 g |
| M-LB-2.150.T3.M | 70172497 | 1 | 2 kA In | 4 kA Imax | approx. 50 g |
| M-LB-2.150.T3.D | 70174646 | 2 | 2 kA In | 4 kA Imax | approx. 120 g |
| M-LB-2.30.T3.D | 70174645 | 2 | 1 kA In | 2 kA Imax | approx. 120 g |

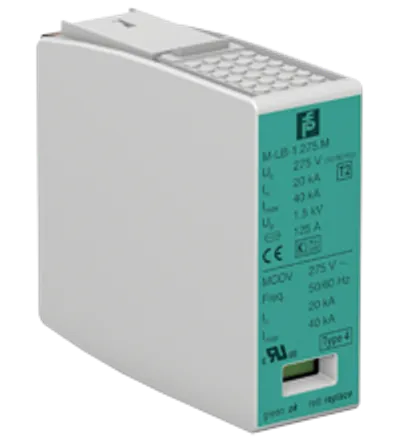

| M-LB-1.275.M | 70172493 | 1 | 20 kA In | 40 kA Imax | approx. 50 g |
| M-LB-2.275TT.D | 70172492 | 2 | 20 kA In | 40 kA Imax | approx. 240 g |

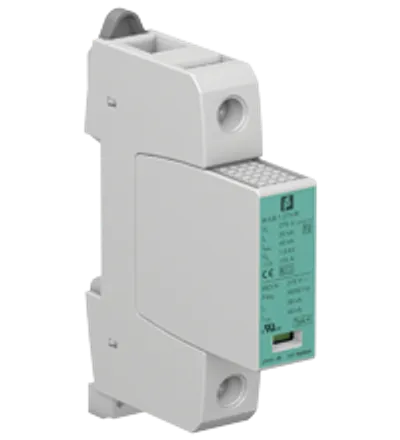

| M-LB-1.275.D | 235891 | 1 | 20 kA In | 40 kA Imax | approx. 240 g |
| M-LB-1.150.D | 235905 | 1 | 15 kA In | 40 kA Imax | approx. 240 g |
| M-LB-4.150TNS.D | 235912 | 4 | 15 kA In | 40 kA Imax | approx. 480 g |
| M-LB-4.275TNS.D | 235911 | 4 | 20 kA In | 40 kA Imax | approx. 480 g |
| M-LB-3.150TNC.D | 235910 | 3 | 15 kA In | 40 kA Imax | approx. 360 g |
| M-LB-2.150TN.D | 235907 | 2 | 15 kA In | 40 kA Imax | approx. 240 g |

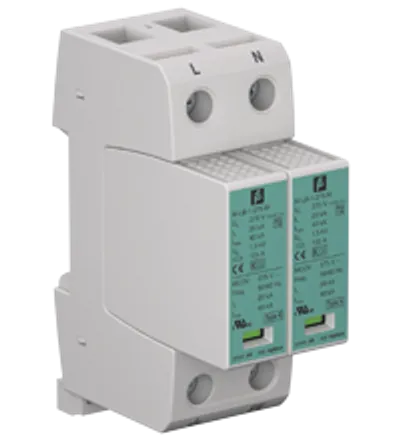

| M-LB-2.275TN.D | 235906 | 2 | 20 kA In | 40 kA Imax | approx. 240 g |

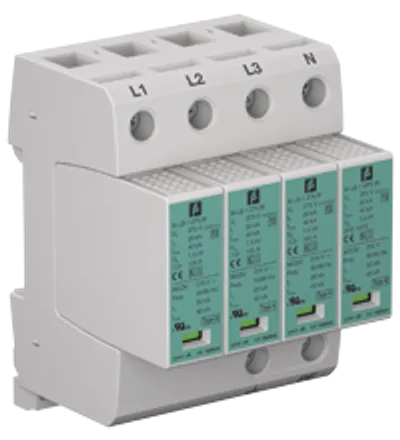

| M-LB-4.275TT.D | 235913 | 4 | 20 kA In | 40 kA Imax | approx. 480 g |

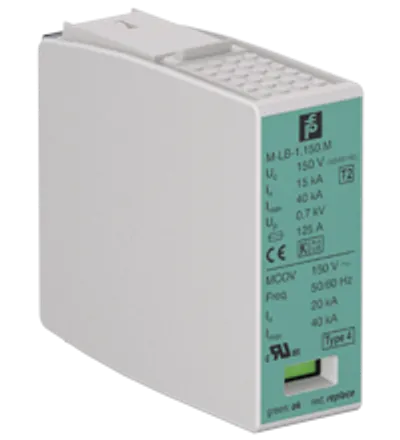

| M-LB-1.150.M | 235915 | 1 | 15 kA In | 40 kA Imax | approx. 50 g |

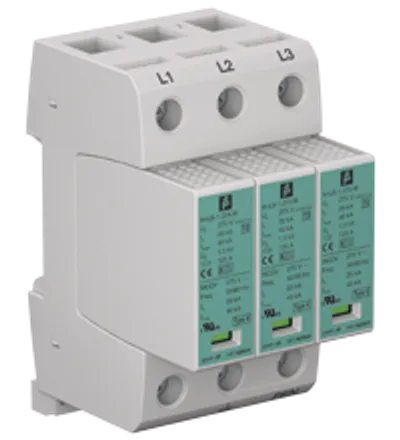

| M-LB-3.275TNC.D | 235909 | 3 | 20 kA In | 40 kA Imax | approx. 360 g |
| M-LB-2.30.T3.M | 263959 | 1 | 1 kA In | 2 kA Imax | approx. 50 g |
Common to all listed parts
| Display elements | status display operating state (green) fault indication (red) |
| Low voltage: Directive 2014/35/EU | EN 61643-11:2012 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Material: Housing | thermoplastic, color grey , UL 94 V-0 |
