Pepperl Fuchs LB9019A
Terminal Block
- MPN
- LB9019A
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

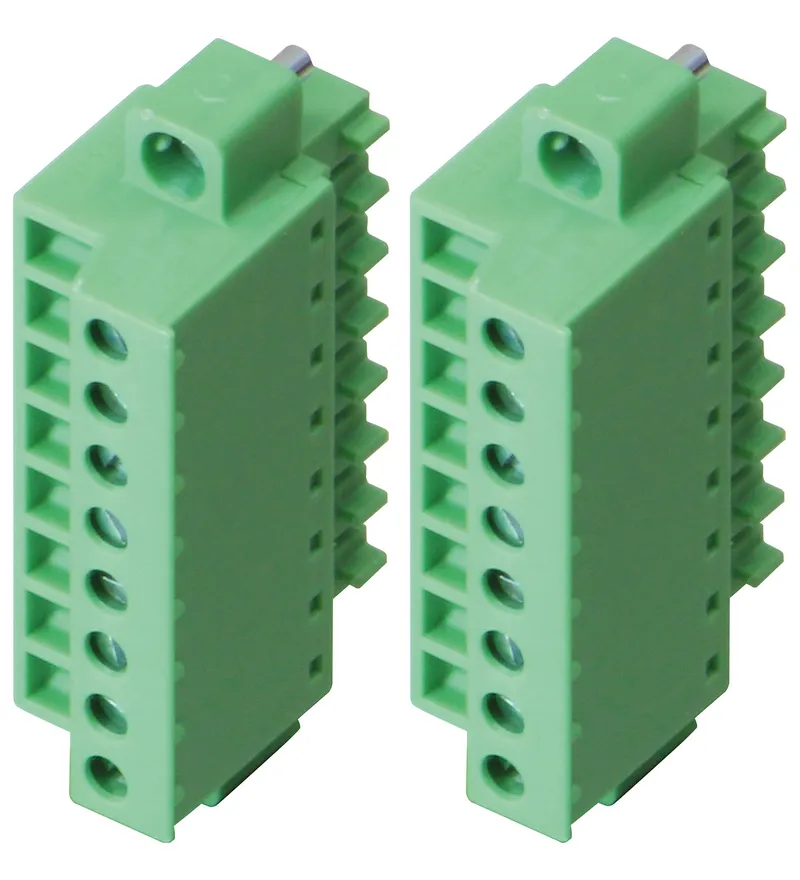

What is the Pepperl Fuchs LB9019A?
Front screw terminal
For LB modules
2 x 8-pole
Labeled 1 ... 8 and 9 ... 16
Color green
For non-intrinsically safe or Ex ic applications
Front screw terminal, For LB modules, 2 x 8-pole, Labeled 1 ... 8 and 9 ... 16, Color green, For non-intrinsically safe or Ex ic applications, Construction type: front screw terminal
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 542022 |
| Number of pins | 2 x 8 |
| Labeling | 1 ... 8 & 9 ... 16 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated voltage | 160 V Ur |
| Rated current | 8 A Ir |
Mechanical specifications
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | green |
| Mass | approx. 5 g |

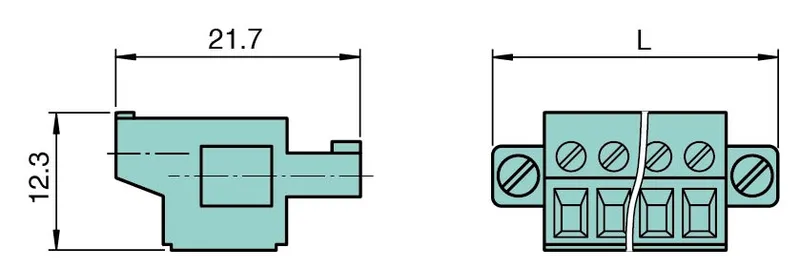

| Dimensions | (W x H x D) 40.9 mm x 12.3 mm x 21.7 mm |
| Height | 12.3 mm |
| Width | 40.9 mm |
| Depth | 21.7 mm |
| Construction type | front screw terminal |
International approvals
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval: Lloyd Register | 15/20021 |
| Marine approval: American Bureau of Shipping | T1450280/UN |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
LB9019A: frequently asked questions
When can LB9019A be shipped?
LB9019A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9019A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9019A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9019A, subject to availability and destination.
