Pepperl Fuchs LB9015A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | FB (Zone 1) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9015A be shipped?
LB9015A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9015A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9015A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9015A, subject to availability and destination.

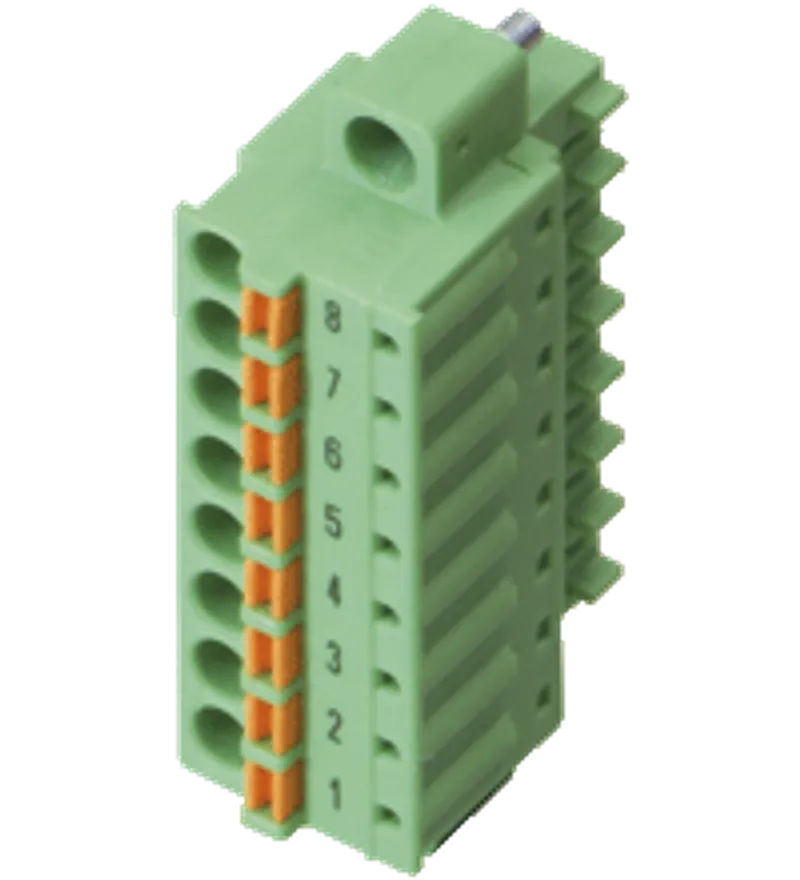

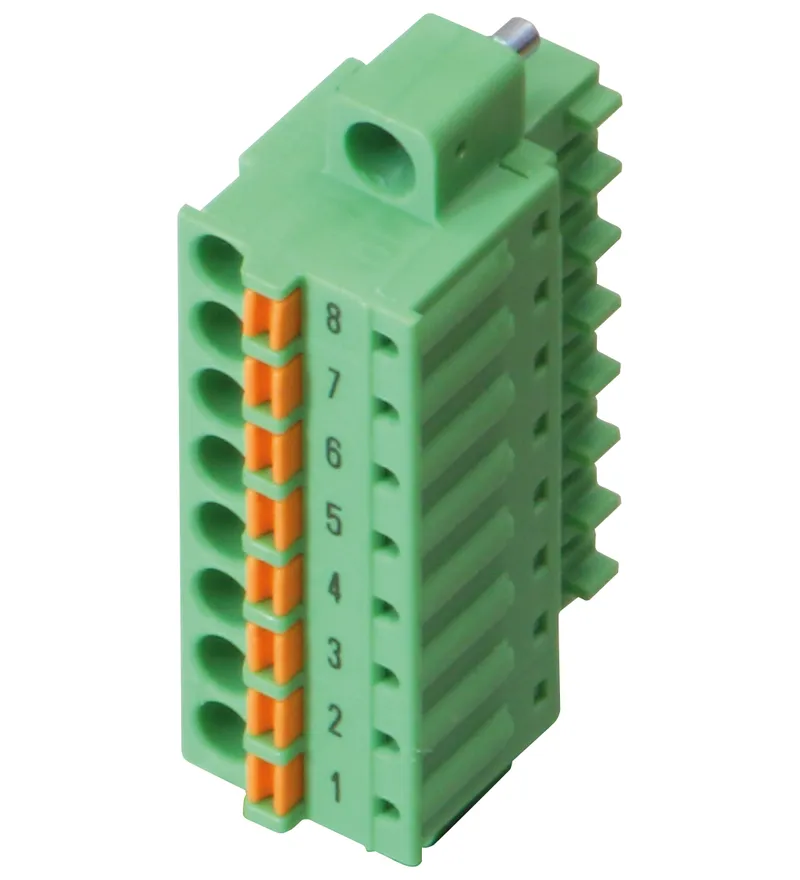

Terminal Block. Spring terminal, For LB modules, 8-pole, Labeled 1 ... 8, Color green, For non-intrinsically safe or Ex ic applications, Construction type: spring terminal. Number of pins: 8. Labeling: 1 ... 8. Rated voltage: 160 V. Rated current: 8 A. Core cross section: 0.14 ... 1.5 mm2. Housing: green. Mass: approx. 5 g. Dimensions: (W x H x D) 40.9 mm x 12.4 mm x 20.8 mm. Height12.4 mmWidth40.9 mmDepth20.8 mm: . Height: 12.4 mm. Width: 40.9 mm. Depth: 20.8 mm. Construction type: spring terminal. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021American Bureau of ShippingT1450280/UN: . Lloyd Register: 15/20021. American Bureau of Shipping: T1450280/UN
Specifications
General specifications
| Number of pins | 8 |
| Labeling | 1 ... 8 |
Electrical specifications
| Rated voltage | 160 V Ur |
| Rated current | 8 A Ir |
Mechanical specifications
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | green |
| Mass | approx. 5 g |
| Dimensions | (W x H x D) 40.9 mm x 12.4 mm x 20.8 mm |
| Height12.4 mmWidth40.9 mmDepth20.8 mm | Height |
| Height | 12.4 mm |
| Width | 40.9 mm |
| Depth | 20.8 mm |
| Construction type | spring terminal |
International approvals
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | |
| Lloyd Register15/20021American Bureau of ShippingT1450280/UN | Lloyd Register |
| Lloyd Register | 15/20021 |
| American Bureau of Shipping | T1450280/UN |
