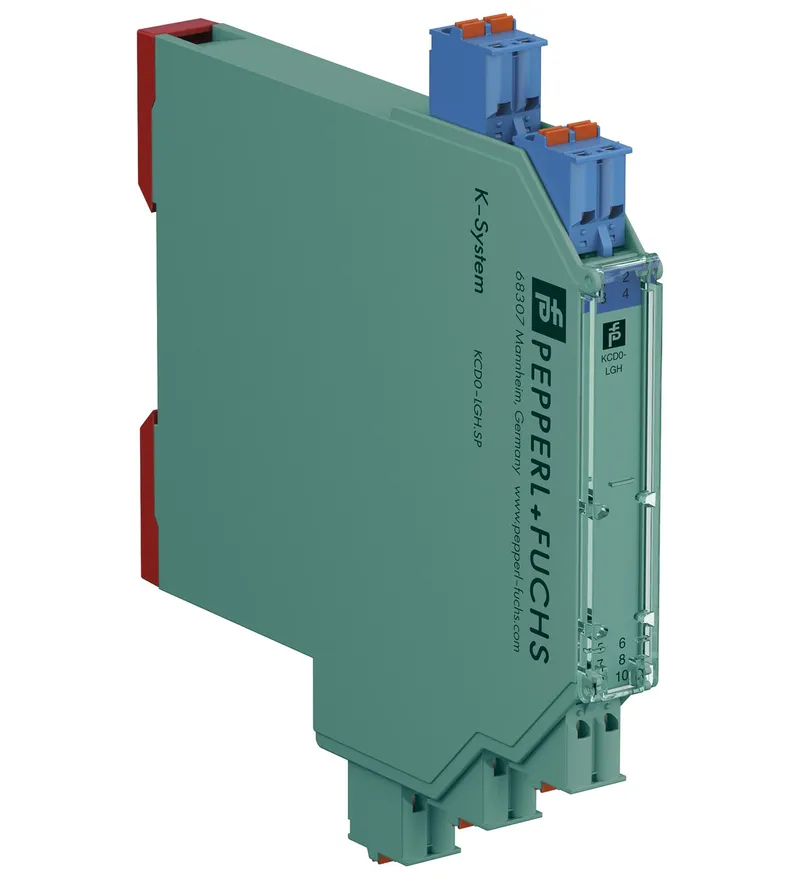

Pepperl Fuchs KCD0-LGH.SP
Place Holder Barrier
- MPN
- KCD0-LGH.SP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs KCD0-LGH.SP?
K-System place holder module
Housing width 12.5 mm
Marshalling for field and control side circuits
Configurable via plug-in jumpers
Connection via spring terminals with push-in connection technology
K-System place holder module, Housing width 12.5 mm, Marshalling for field and control side circuits, Configurable via plug-in jumpers, Connection via spring terminals with push-in connection technology
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 240632 |
| Rated voltage | ≤ 50 V Ur |
| Rated current | ≤ 2 A Ir |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/settings
| Configuration | via internal wire jumpers |
| Labeling | space for labeling at the front |
Conformity
| Degree of protection | IEC 60529 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | spring terminals |
| Mass | approx. 80 g |
| Dimensions | 12.5 x 114 x 104 mm (0.5 x 4.5 x 4.1 inch) (W x H x D) , housing type A2 |
| Height | 104 mm |
| Width | 12.5 mm |
| Depth | 114 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Data for application in connection with hazardous areas
| Certificate | PF 08 CERT 1214 X |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-15:2010 |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
