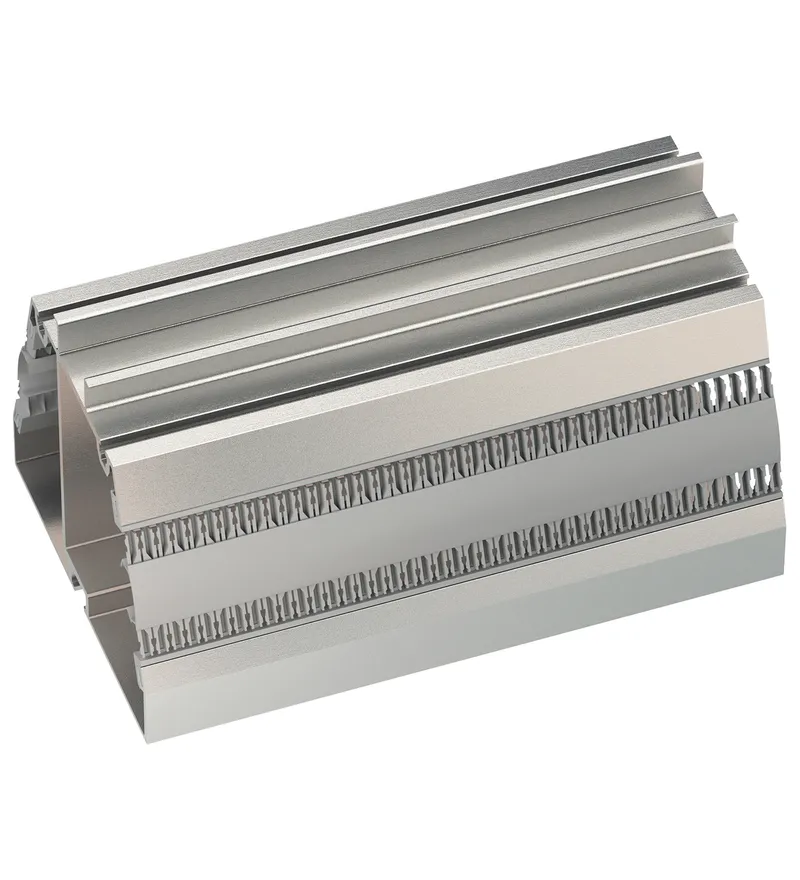

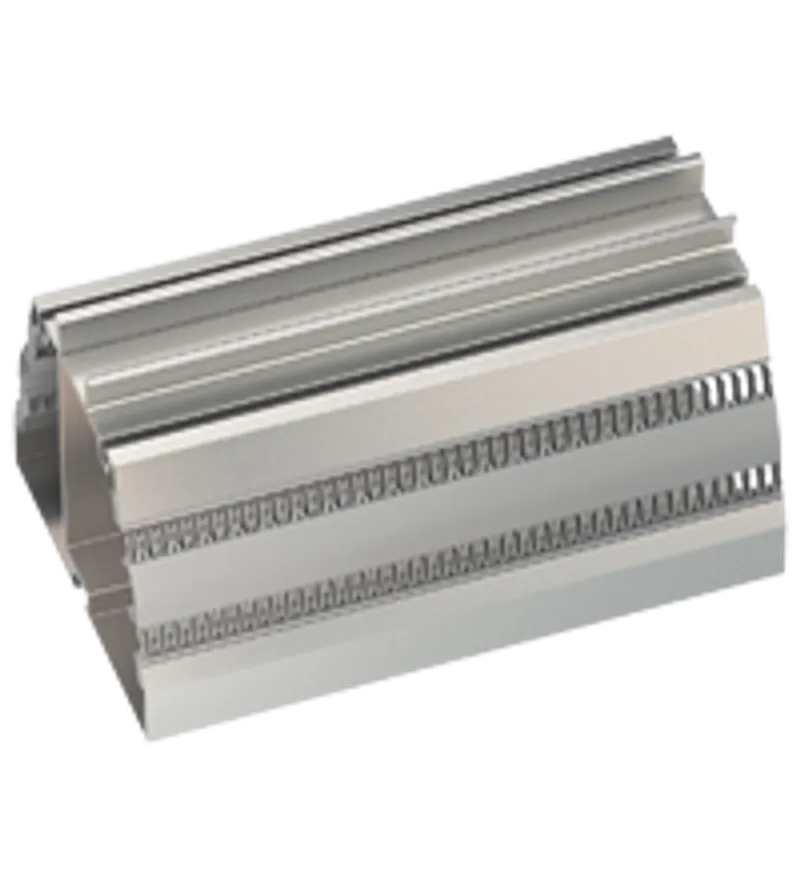

Pepperl Fuchs K-DUCT-GY

Profile Rail

MPN: K-DUCT-GY
Category: K-System (DIN Rail Mounting, Highly Functional)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs K-DUCT-GY?

Cable trunking is integrated in the mounting profile

Safe spacious separation of field and control signals

No additional cable guides necessary

Standard length 1.8 m (5.8 ft), simple to customize to application space

With mounting aids

Cable trunking is integrated in the mounting profile, Safe spacious separation of field and control signals, No additional cable guides necessary, Standard length 1.8 m (5.8 ft), simple to customize to application space, With mounting aids

Specifications

Mechanical specifications

Order code (Pepperl+Fuchs part number)	248959
Connection: Field side	wiring comb , grey
Connection: Control side	wiring comb , grey
Material	profile rail: aluminum wiring comb: plastic
Mass	approx. 6.5 kg

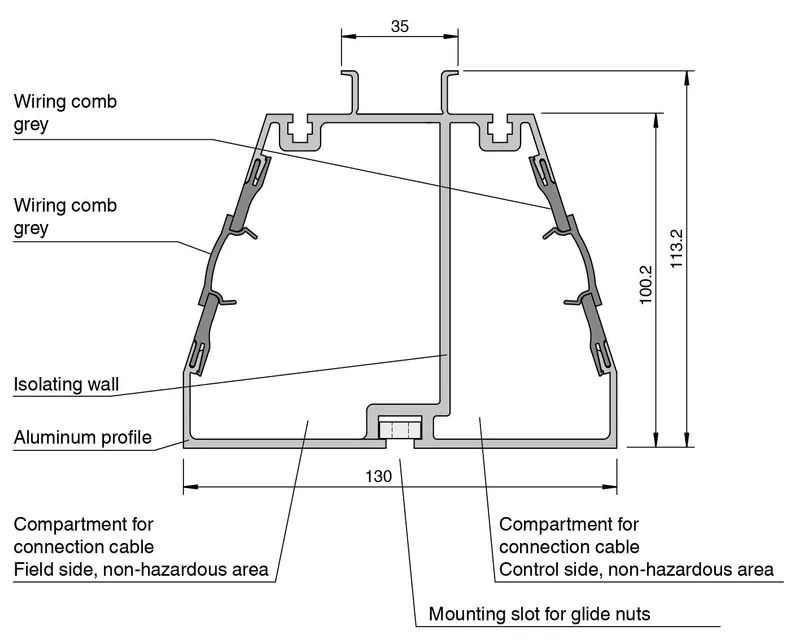

Dimensions	130 x 113.2 x 1800 mm (5 x 4.46 x 71 inch)
Height	113.2 mm
Width	130 mm
Length	1800 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Accessories

Designation

provided accessories: mounting aids (glide nuts and glide nut retainers)

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet K-DUCT-GYPDF
