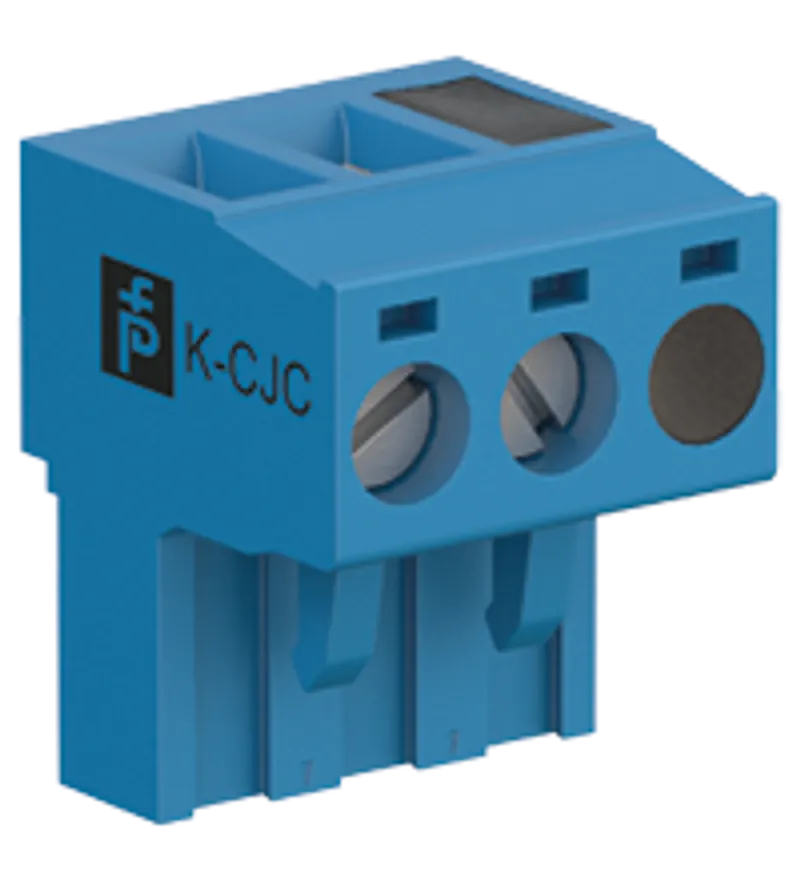

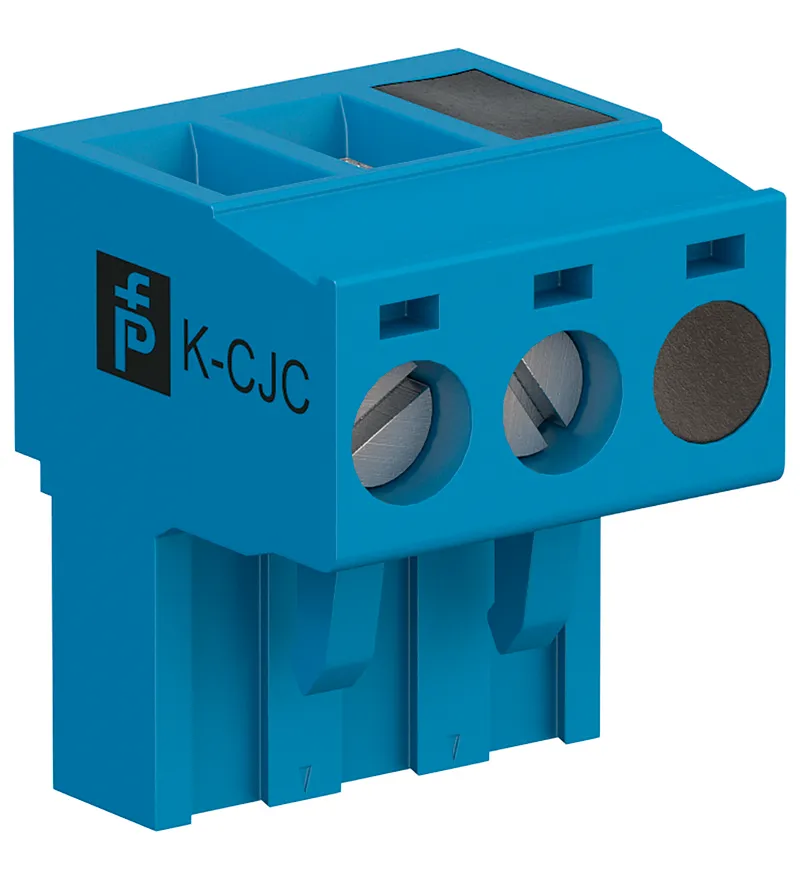

Pepperl Fuchs K-CJC-BU

Terminal Block for Cold Junction Compensation

MPN: K-CJC-BU
Category: K-System (DIN Rail Mounting, Highly Functional)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs K-CJC-BU?

3-pin screw terminal

For KF modules

Integrated Pt100 resistance thermometer for cold junction compensation

Packaging unit: 1 piece, blue

3-pin screw terminal, For KF modules, Integrated Pt100 resistance thermometer for cold junction compensation, Packaging unit: 1 piece, blue

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	071901
Number of pins	3
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Core cross section	max. 2.5 mm2
Material: Color	blue
Mass	approx. 5 g

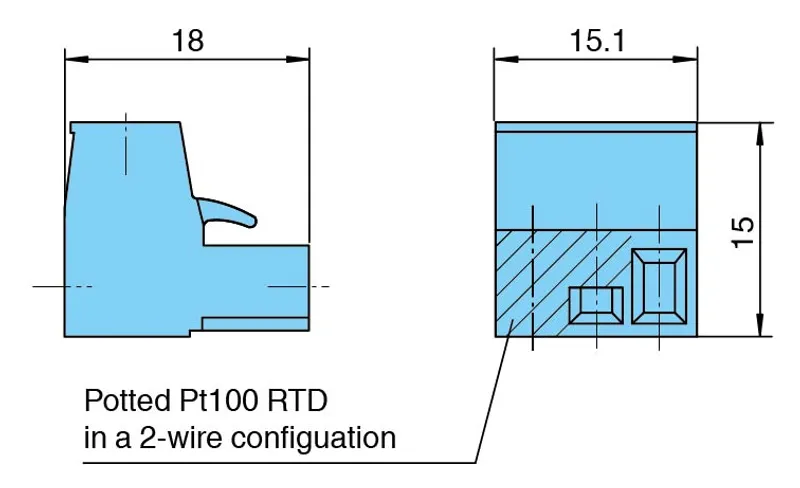

Dimensions	15.1 x 15 x 18 mm (0.6 x 0.6 x 0.7 inch)
Construction type	screw terminal with integrated Pt100 resistance thermometer , removable
Structure	single-row

General information

Packing unit

1 item(s)

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet K-CJC-BUPDF
