Pepperl Fuchs DoorScan Interface Set
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Automatic Doors and Access Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DoorScan Interface Set be shipped?
DoorScan Interface Set is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DoorScan Interface Set in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DoorScan Interface Set and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DoorScan Interface Set, subject to availability and destination.

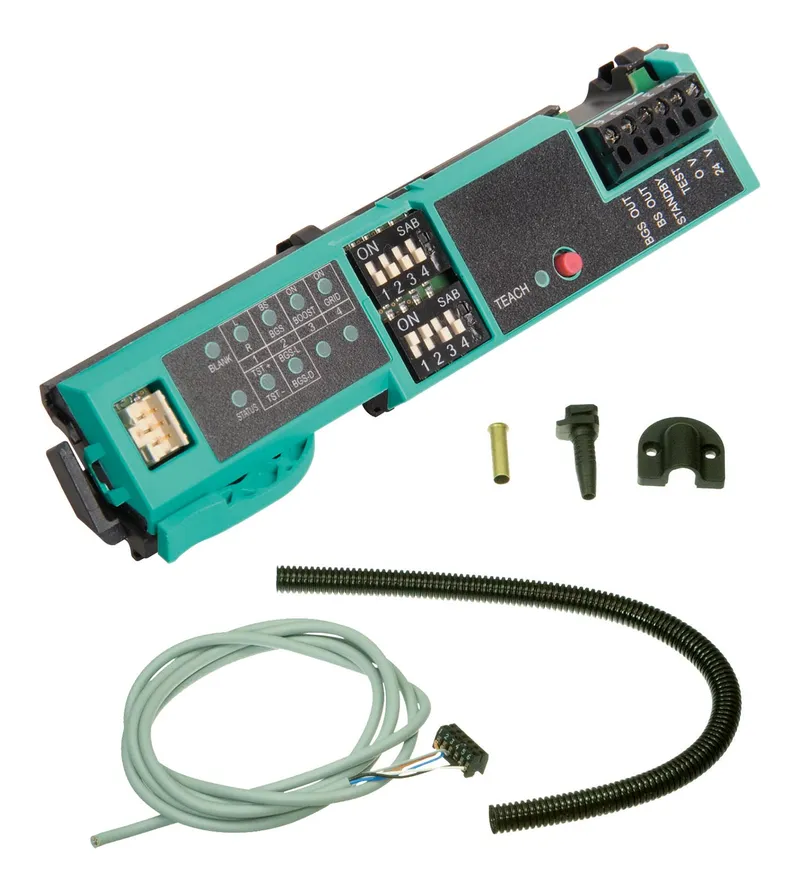

Sensor module, interface. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Multi-function interface with full operation, Complete system supply for the entire system for one door, Can also be used to supply the emitter and receiver modules with power, Single button commissioning with automatic Teach-in function, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 24 V DC +/- 20 %, Signal output: NPN , short-circuit protected. Operating mode: Background evaluation. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: 2716 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: Interface: Red LED: detection, operating reserve, fault code Yellow LED: teach statusGreen LED: blank statusGreen LED: DIP switch status. Operating voltage: 24 V DC +/- 20 %. No-load supply current: 30 mA. Test input: High active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC. Control input: Standby active at U = 11 V DC at 30 V DC. Switching type: Hinge edge light on Leading edge light on/dark on, switchable. Signal output: NPN , short-circuit protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Response time: ≤ 52 ms ≤ 200 ms in boost operating mode. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 12978. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Mounting height: max. 3500 mm. Degree of protection: IP54 (when mounted). Connection: plug strip , 6-pin Cable: screw terminal , 6-pin. Material: Cable sheathing: polyamide PA 6, black , Wall bracket: ABS. Cable: PUR, gray, 6-wire. Sheath diameterapprox. 4.8 mmBending radiusmin. 48 mmLengthL5000 mm: . Sheath diameter: approx. 4.8 mm. Bending radius: min. 48 mm. Length: 5000 mm. Mass: approx. 140 g. Dimensions: . Height24 mmDepth31 mmLength126 mm: . Height: 24 mm. Depth: 31 mm. Length: 126 mm. Scope of delivery: Sensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet. Series: DoorScan®
Specifications
General specifications
| Operating mode | Background evaluation |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
| Performance level (PL) | PL d |
| Category | Cat. 2 |
| MTTFd | 2716 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 90 % |
Indicators/operating means
| Function indicator | Interface: Red LED: detection, operating reserve, fault code Yellow LED: teach statusGreen LED: blank statusGreen LED: DIP switch status |
Electrical specifications
| Operating voltage | 24 V DC +/- 20 % UB |
| No-load supply current | 30 mA I0 |
Input
| Test input | High active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC |
| Control input | Standby active at U = 11 V DC at 30 V DC |
Output
| Switching type | Hinge edge light on Leading edge light on/dark on, switchable |
| Signal output | NPN , short-circuit protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Response time | ≤ 52 ms ≤ 200 ms in boost operating mode |
Conformity
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 |
| Product standard | EN 12978 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
Mechanical specifications
| Mounting height | max. 3500 mm |
| Degree of protection | IP54 (when mounted) |
| Connection | plug strip , 6-pin Cable: screw terminal , 6-pin |
| Material | Cable sheathing: polyamide PA 6, black , Wall bracket: ABS |
| Cable | PUR, gray, 6-wire |
| Sheath diameterapprox. 4.8 mmBending radiusmin. 48 mmLengthL5000 mm | Sheath diameter |
| Sheath diameter | approx. 4.8 mm |
| Bending radius | min. 48 mm |
| Length | 5000 mm L |
| Mass | approx. 140 g |

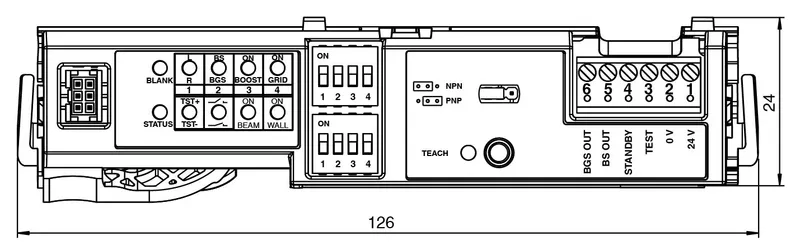

| Dimensions | |
| Height24 mmDepth31 mmLength126 mm | Height |
| Height | 24 mm |
| Depth | 31 mm |
| Length | 126 mm |
General information
| Scope of delivery | Sensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet |
Suitable series
| Series | DoorScan® |
More Pepperl Fuchs parts
NewPepperl + Fuchs KFD2-GUT-EX1.D New open box
Available on requestPepperl Fuchs V19-W-BK15M-PUR-U-V19-G
Available on requestPepperl Fuchs V1SD-G-GN65M-PUR-E1S-V45-G
