Pepperl Fuchs CFP.RC.SP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.RC.SP be shipped?
CFP.RC.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.RC.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.RC.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.RC.SP, subject to availability and destination.

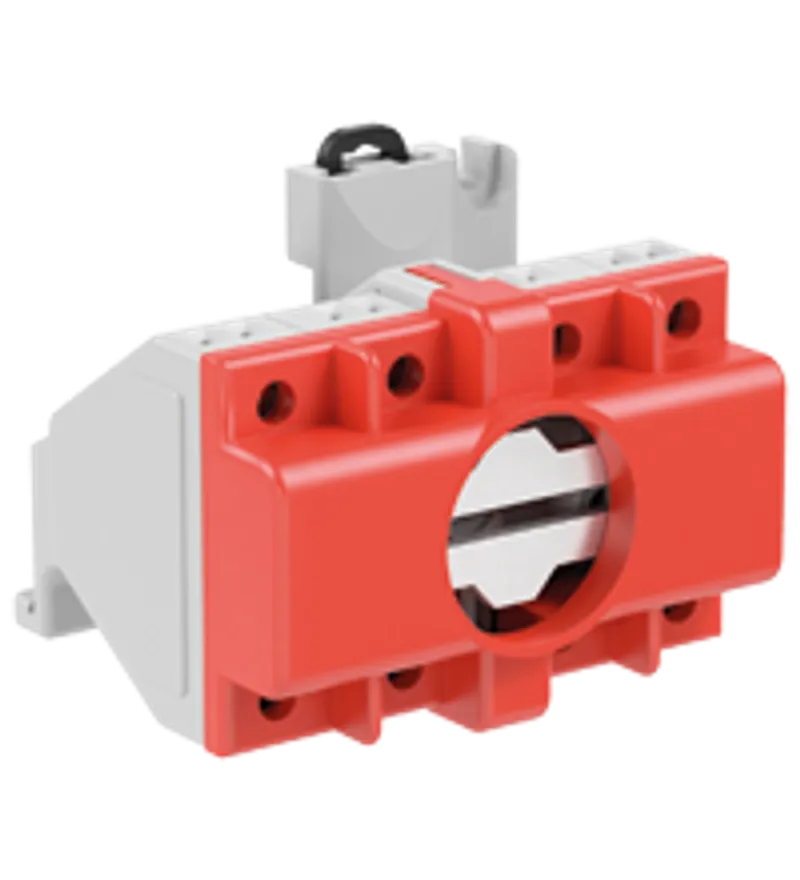

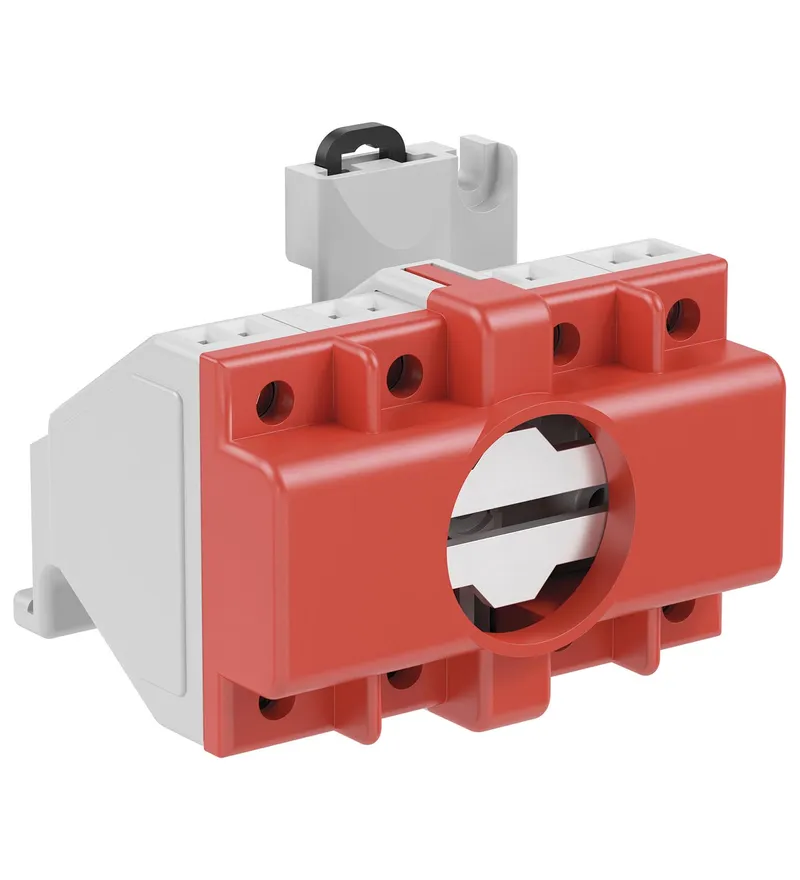

Contact Block Ex e, 2 Pole with Resistors, Base-mounted. Contact block 2x NC, Line fault detection, Component for appropriately certified Ex e enclosures, DIN rail mountable, Ex de certified, Polyamide, For use with enclosure types LR* and GR*, Function: contact block, Housing: Polyamide (PA), Marking: [exsign] II 2 G <BR>Ex db eb IIC Gb. Operating voltage: 30 V max.. Operating current: 30 mA max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Resistor: R1 in series, R2 switch bypass R1 = 1 kΩ R2 = 10 kΩ. Function: contact block. Contact configuration2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mANumber of poles2: . Contact configuration: 2x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mA. Number of poles: 2. Degree of protection: IP20. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: 165 g. Mechanical life: 1000000 switching operations. Dimensions: . External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58.6 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm: . External dimension (A): 63 mm. External dimension (B): 74 mm. External dimension (C): 58.6 mm. Mounting holes distance (G): 52 mm. DIN mounting rail receptacle (G3): 35.6 mm. Mounting holes distance (H): 58 mm. Mounting holes diameter (J): 4.2 mm. Thickness of mounting brackets (N): 8 mm. Mounting: base-mounted DIN rail mounting. Service temperature: -40 ... 90 °C (-40 ... 194 °F). EU-type examination certificate: CML 19 ATEX 1177U. Marking II 2 G Ex db eb IIC Gb: . Marking: II 2 G Ex db eb IIC Gb. IECEx approval: IECEx CML 19.0053U. Degree of protection: EN 60529. CE marking: 2829. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: LR* GR.CS*. Optional accessories:
Specifications
Electrical specifications
| Operating voltage | 30 V max. |
| Operating current | 30 mA max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque |
| Terminal torque | 0.8 Nm |
| Resistor | R1 in series, R2 switch bypass R1 = 1 kΩ R2 = 10 kΩ |
| Function | contact block |
| Contact configuration2x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mANumber of poles2 | Contact configuration |
| Contact configuration | 2x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mA |
| Number of poles | 2 |
Mechanical specifications
| Degree of protection | IP20 |
| Material | |
| HousingPolyamide (PA) | Housing |
| Housing | Polyamide (PA) |
| Mass | 165 g |
| Mechanical life | 1000000 switching operations |
| Dimensions | |

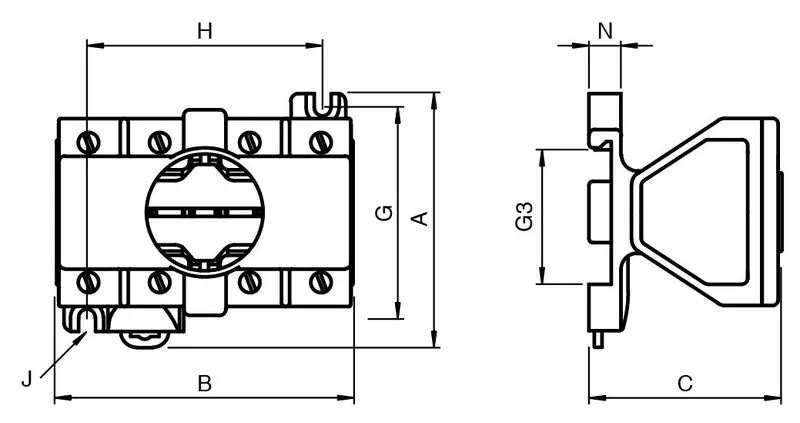

| External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58.6 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm | External dimension (A) |
| External dimension (A) | 63 mm |
| External dimension (B) | 74 mm |
| External dimension (C) | 58.6 mm |
| Mounting holes distance (G) | 52 mm |
| DIN mounting rail receptacle (G3) | 35.6 mm |
| Mounting holes distance (H) | 58 mm |
| Mounting holes diameter (J) | 4.2 mm |
| Thickness of mounting brackets (N) | 8 mm |
| Mounting | base-mounted DIN rail mounting |
Ambient conditions
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 19 ATEX 1177U |
| Marking II 2 G Ex db eb IIC Gb | Marking |
| Marking | II 2 G Ex db eb IIC Gb |
International approvals
| IECEx approval | IECEx CML 19.0053U |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 2829 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
Accessories
| Optional accessories |
