Pepperl Fuchs CFP.PZ5.SP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.PZ5.SP be shipped?
CFP.PZ5.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.PZ5.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.PZ5.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.PZ5.SP, subject to availability and destination.

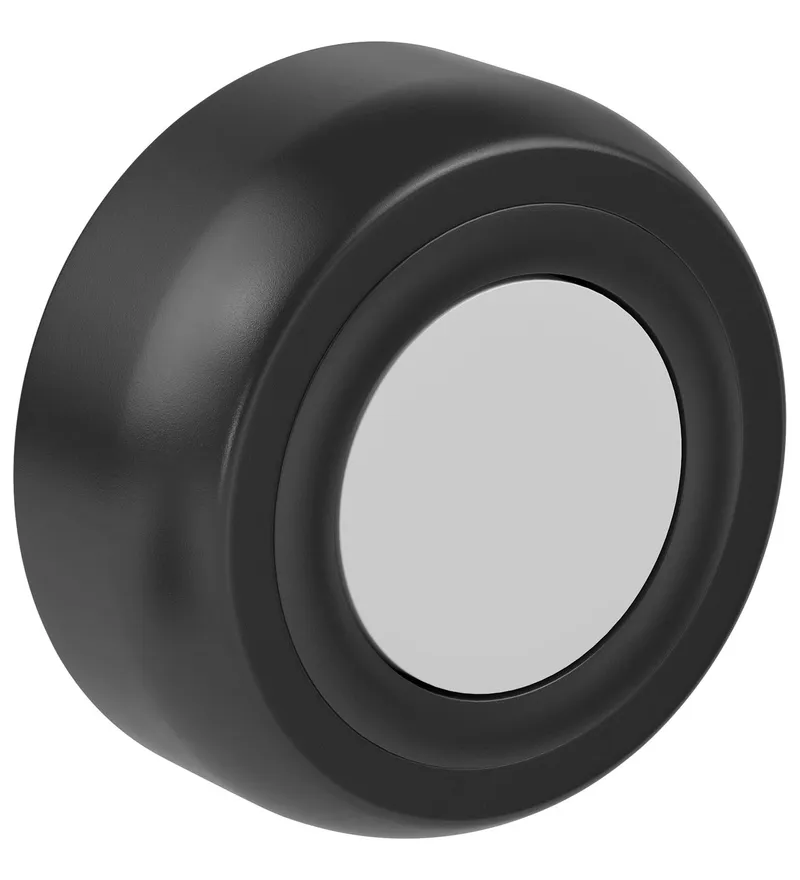

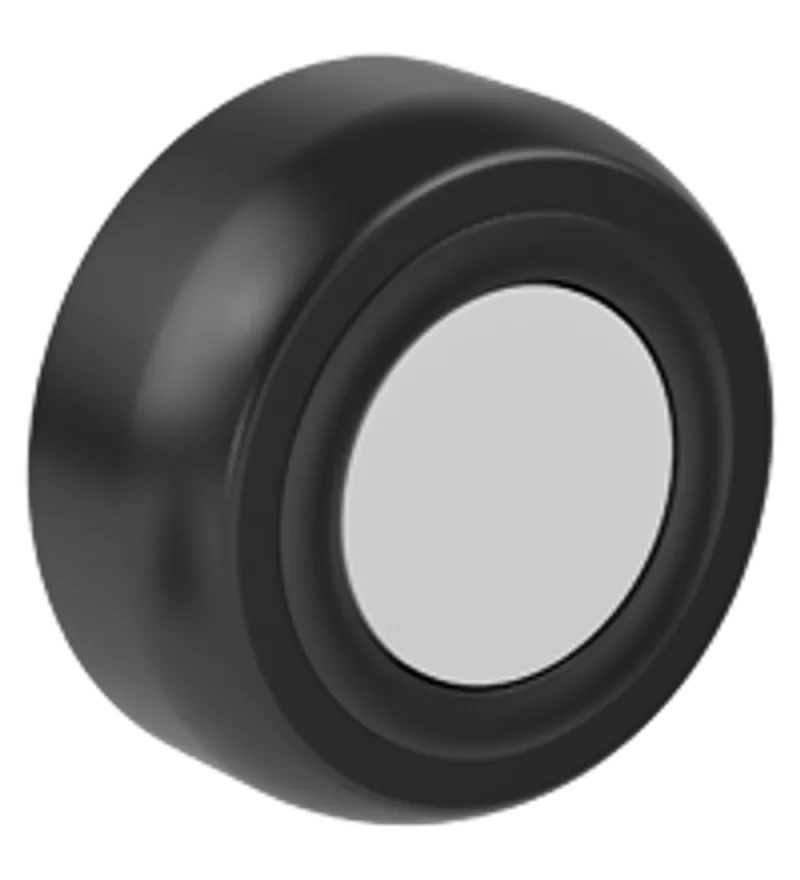

Actuator Head Ex e - Pushbutton. Color blue, black, Labeling: RESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black), Component for appropriately certified Ex e enclosures, For use with base-mounted and lid-mounted contact modules, Ex e and Ex tb certified, Polyamide, Function: push button, Housing: Polyamide (PA), Marking: [exsign] II 2 GD <BR>Ex e IIC Gb <BR>Ex tb IIIC Db. Function: push button. Color of insertblue, blackOperator actionspring returnLabelingRESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black): . Color of insert: blue, black. Operator action: spring return. Labeling: RESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black). Degree of protection: IP66. Material: . HousingPolyamide (PA)Finishinherent color blackWasher gasketsilicone: . Housing: Polyamide (PA). Finish: inherent color black. Washer gasket: silicone. Mass: 25 g. Dimensions: . Actuator head diameter (D2)39 mmPanel wall thickness (PT)1 ... 6 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)15.5 mmTotal length (L)35.4 mm: . Actuator head diameter (D2): 39 mm. Panel wall thickness (PT): 1 ... 6 mm. Diameter thru-hole (DT): 30.6 mm. Length outside enclosure (H): 15.5 mm. Total length (L): 35.4 mm. Tightening torque: 2.8 ... 3.4 Nm. Mounting: use with base-mounted and cover-mounted contact modules. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Service temperature: -40 ... 65 °C (-40 ... 149 °F). EU-type examination certificate: CML 16 ATEX 3339U. Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db: . Marking: II 2 GD Ex e IIC Gb Ex tb IIIC Db. IECEx approval: IECEx CML 16.0114U. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: LR* SR*.CS* GR.CS*. Optional accessories: CFP.TP
Specifications
Electrical specifications
| Function | push button |
| Color of insertblue, blackOperator actionspring returnLabelingRESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black) | Color of insert |
| Color of insert | blue, black |
| Operator action | spring return |
| Labeling | RESET (blue), 0 (black), I (black), II (black), III (black), IV (black), arrow up (black) |
Mechanical specifications
| Degree of protection | IP66 |
| Material | |
| HousingPolyamide (PA)Finishinherent color blackWasher gasketsilicone | Housing |
| Housing | Polyamide (PA) |
| Finish | inherent color black |
| Washer gasket | silicone |
| Mass | 25 g |
| Dimensions | |
| Actuator head diameter (D2)39 mmPanel wall thickness (PT)1 ... 6 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)15.5 mmTotal length (L)35.4 mm | Actuator head diameter (D2) |
| Actuator head diameter (D2) | 39 mm |
| Panel wall thickness (PT) | 1 ... 6 mm |
| Diameter thru-hole (DT) | 30.6 mm |
| Length outside enclosure (H) | 15.5 mm |
| Total length (L) | 35.4 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Mounting | use with base-mounted and cover-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Service temperature | -40 ... 65 °C (-40 ... 149 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db | Marking |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* SR*.CS* GR.CS* |
Accessories
| Optional accessories | CFP.TP |
