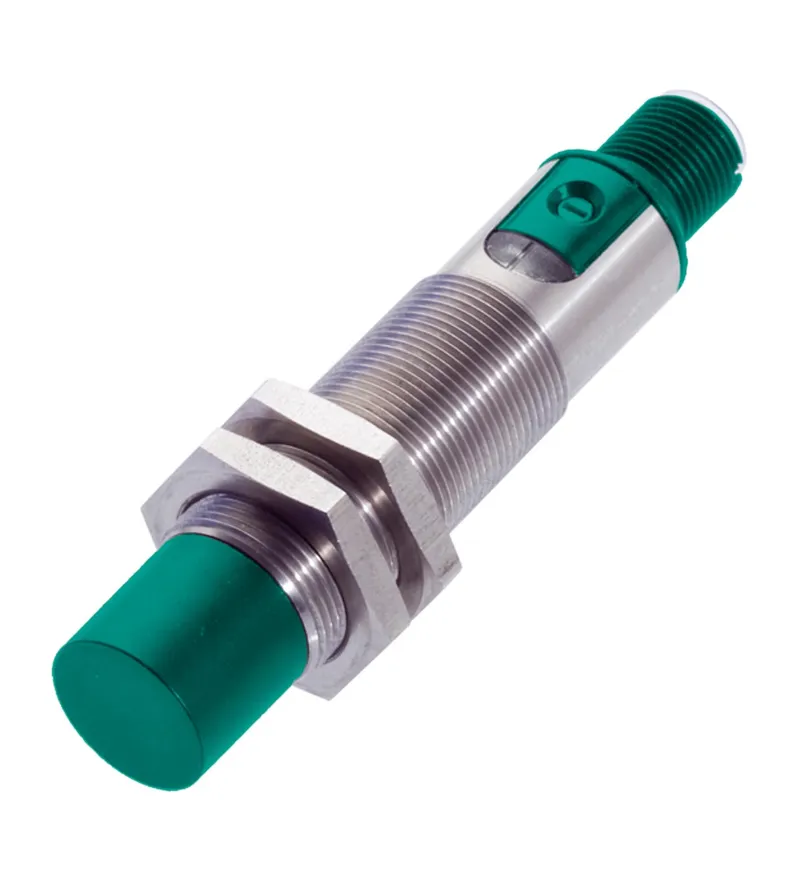

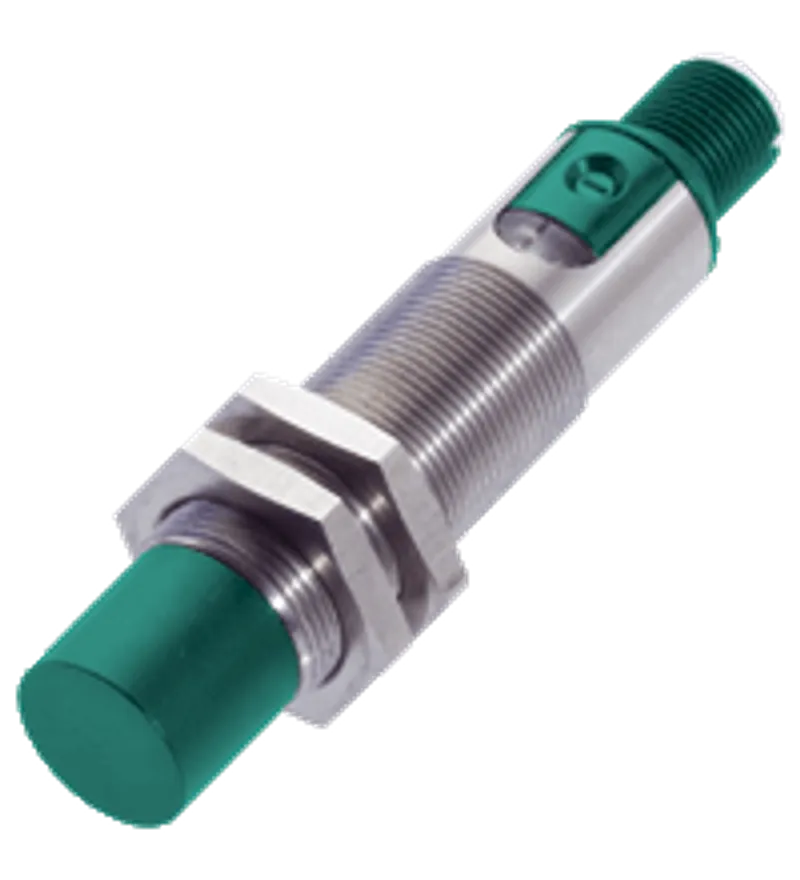

Pepperl Fuchs CBN15-18GS75-E2-V1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Capacitive Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CBN15-18GS75-E2-V1 be shipped?
CBN15-18GS75-E2-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CBN15-18GS75-E2-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CBN15-18GS75-E2-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBN15-18GS75-E2-V1, subject to availability and destination.
Capacitive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 ... 15 mm. Installation: non-flush. Output polarity: DC. Output type: 3-wire. Installation conditions: . A30 mmB18 mmC30 mmF36 mm: . A: 30 mm. B: 18 mm. C: 30 mm. F: 36 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 100 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Temperature drift: max. 20 % at -5 ... 55 °C (23 ... 131 °F). Operating current: 0 ... 100 mA. No-load supply current: ≤ 15 mA. Time delay before availability: max. 300 ms. MTTFd: 226 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED green: Operating display. LED yellow: indication switching state. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Dimensions: . Length88 mmDiameter18 mm: . Length: 88 mm. Diameter: 18 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 2 ... 15 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Output type | 3-wire |
Nominal ratings
| Installation conditions | |
| A30 mmB18 mmC30 mmF36 mm | A |
| A | 30 mm |
| B | 18 mm |
| C | 30 mm |
| F | 36 mm |
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 100 Hz f |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 1.5 V Ud |
| Temperature drift | max. 20 % at -5 ... 55 °C (23 ... 131 °F) |
| Operating current | 0 ... 100 mA IL |
| No-load supply current | ≤ 15 mA I0 |
| Time delay before availability | max. 300 ms tv |
Safety-relevant product characteristics
| MTTFd | 226 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| LED green | Operating display |
| LED yellow | indication switching state |
| Potentiometer | sensitivity adjustment |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN IEC 60947-5-2 | Standards |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector | |
| ThreadingM12 x 1Number of pins3 | Threading |
| Threading | M12 x 1 |
| Number of pins | 3 |

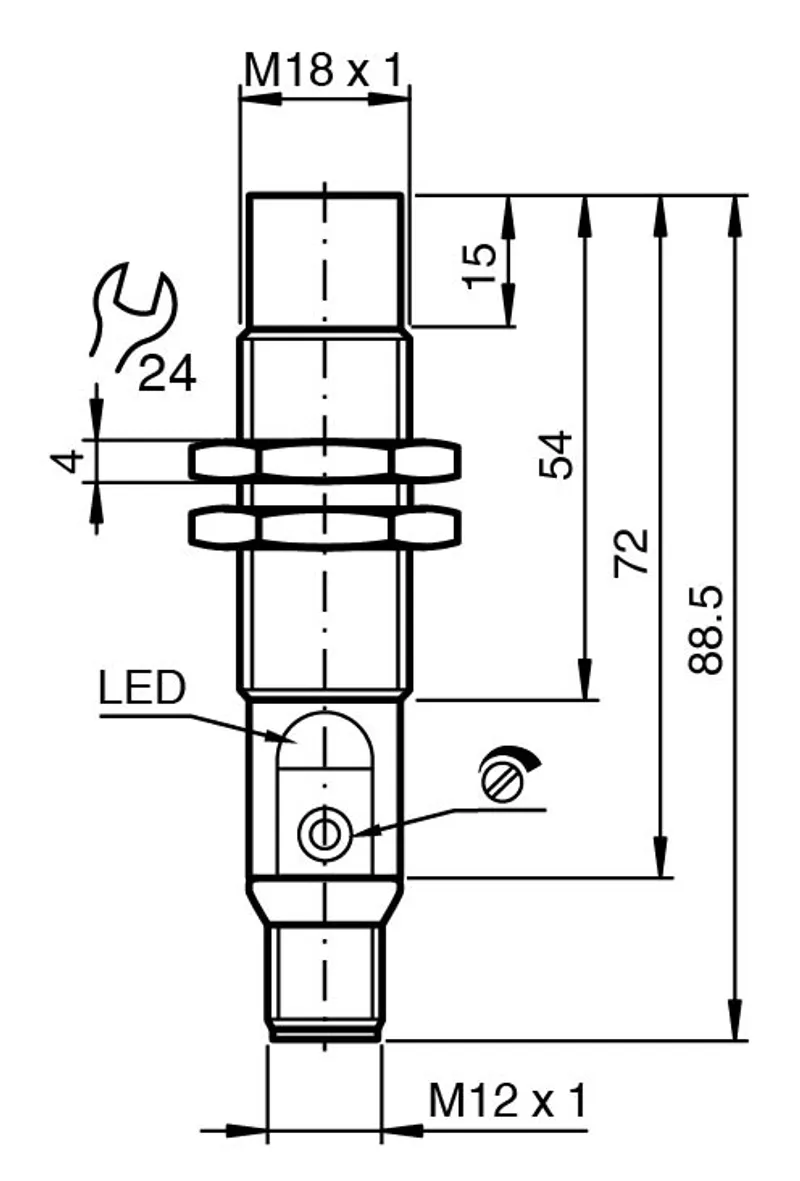

| Dimensions | |
| Length88 mmDiameter18 mm | Length |
| Length | 88 mm |
| Diameter | 18 mm |
