Capacitive Sensors Parts
Compare Capacitive Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Rated operating distance | Assured operating distance | Dimensions: Length | MTTFd |
|---|---|---|---|---|---|

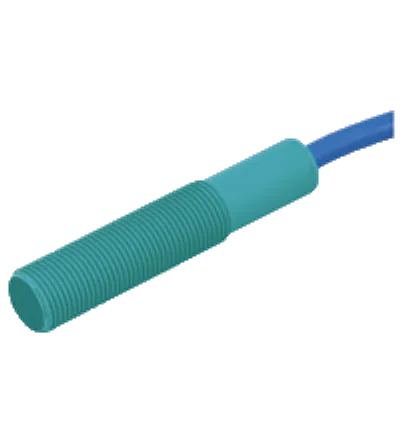

| CJ1-12GK-N-15M | 70135019 | 1 mm sn | 0 ... 0.72 mm sa | 60 mm | — |

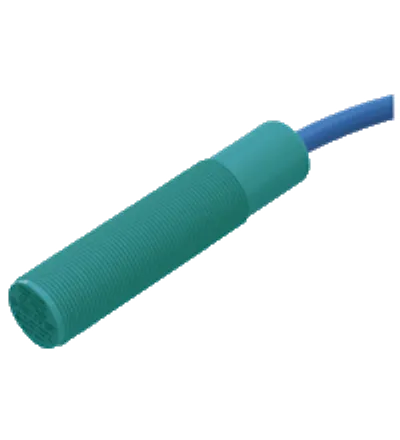

| CJ2-18GK-N | 70135021 | 2 mm sn | 0 ... 1.44 mm sa | 80 mm | 5030 a |
| CJ4-12GK-N-10M | 70135024 | 4 mm sn | 0 ... 2.88 mm sa | 60 mm | 3299 a |
| CJ1-12GK-N-5M | 70135020 | 1 mm sn | 0 ... 0.72 mm sa | 60 mm | — |
| CJ6-18GK-N | 70135025 | 6 mm sn | 0 ... 4.32 mm sa | 80 mm | 5030 a |

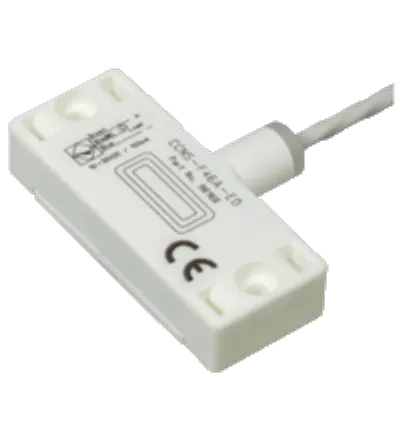

| CCN5-F46A-E2 | 096566 | 5 mm sn | 0 ... 3.5 mm sa | 30.4 mm | 672 a |

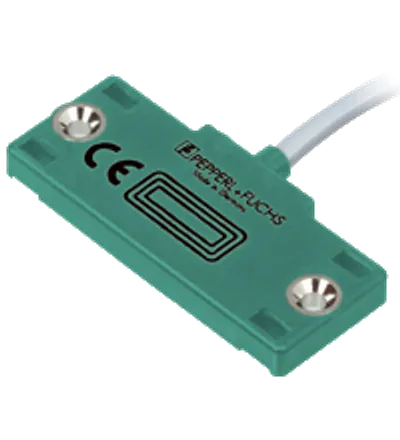

| CBN5-F46-E0 | 051972 | 5 mm sn | 0 ... 3.5 mm sa | 25 mm | — |
| CJ4-12GK-N-5M | 70135023 | 4 mm sn | 0 ... 2.88 mm sa | 60 mm | 3299 a |
| CBN2-F46-E2 | 051970 | 2 mm sn | 0 ... 1.4 mm sa | 25 mm | 1200 a |
| CBN5-F46-E2 | 051974 | 5 mm sn | 0 ... 3.5 mm sa | 25 mm | 1200 a |
| CBN60-FPA-E5-P1A | 70156869 | 60 mm sn | 0 ... 48.6 mm sa | 105 mm | — |
| CBN5-F46-E3-0,76M-V1-Y | 70110609 | 5 mm sn | 0 ... 3.5 mm sa | 5 mm | 672 a |

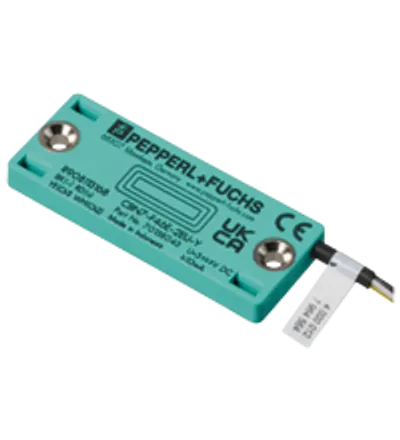

| CBN7-F46E-2EU-Y70154186 | 70154186 | 6.5 mm sn | — | 5 mm | > 7500 a |
| CBN7-F46E-2EU-Y70138043 | 70138043 | 6.5 mm sn | — | 5 mm | > 7500 a |
| CBN5-F46-E2-Y70121258 | 70121258 | 5 mm sn | 0 ... 3.5 mm sa | 25 mm | — |
| CBN5-F46-E0-Y70121257 | 70121257 | 5 mm sn | 0 ... 3.5 mm sa | 25 mm | — |

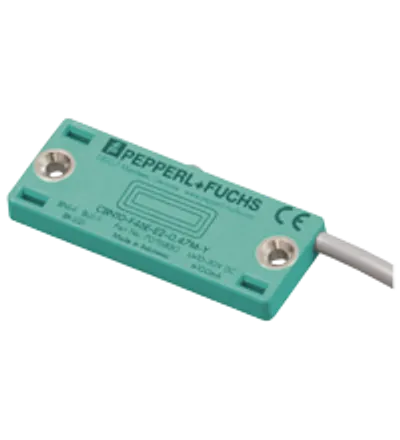

| CBN10-F46E-E2-0,47M-Y70115830 | 70115830 | 10 mm sn | 0 ... 7 mm sa | 5 mm | 1210 a |
| CBN5-F46-E2-Y320222 | 320222 | 5 mm sn | 0 ... 3.5 mm sa | 22 mm | 1200 a |
| CJ4-12GK-N-Y235563 | 70135026 | 4 mm sn | 0 ... 2.88 mm sa | 60 mm | — |
| CJ1-12GK-N | 70135017 | 1 mm sn | 0 ... 0.72 mm sa | 60 mm | 5670 a |

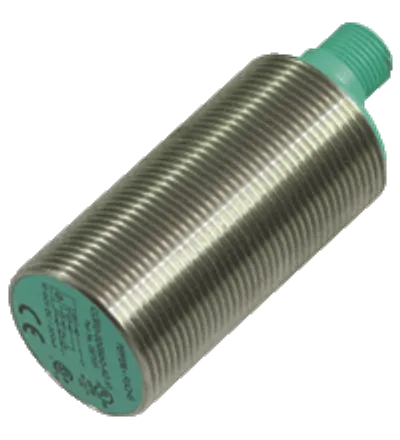

| CCB10-30GS60-A2-V1 | 237551 | 10 mm sn | 0 ... 8.1 mm sa | 60 mm | 760 a |
| CBN7-F46-E2 | 239734 | 7 mm sn | 0 ... 5.67 mm sa | 25 mm | 673 a |

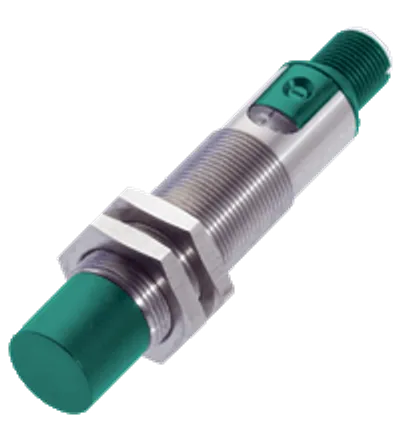

| CBN15-18GS75-E2-V1 | 237042 | 2 ... 15 mm sn | — | 88 mm | 226 a |

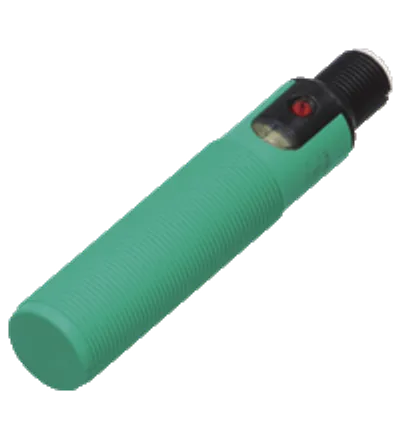

| CBB8-18GK75-E2-V1 | 237039 | 1 ... 8 mm sn | — | 88 mm | 343 a |
