Pepperl Fuchs 7500-MAN-BK-**-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type Z) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 7500-MAN-BK-**-* be shipped?
7500-MAN-BK-**-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7500-MAN-BK-**-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7500-MAN-BK-**-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7500-MAN-BK-**-*, subject to availability and destination.

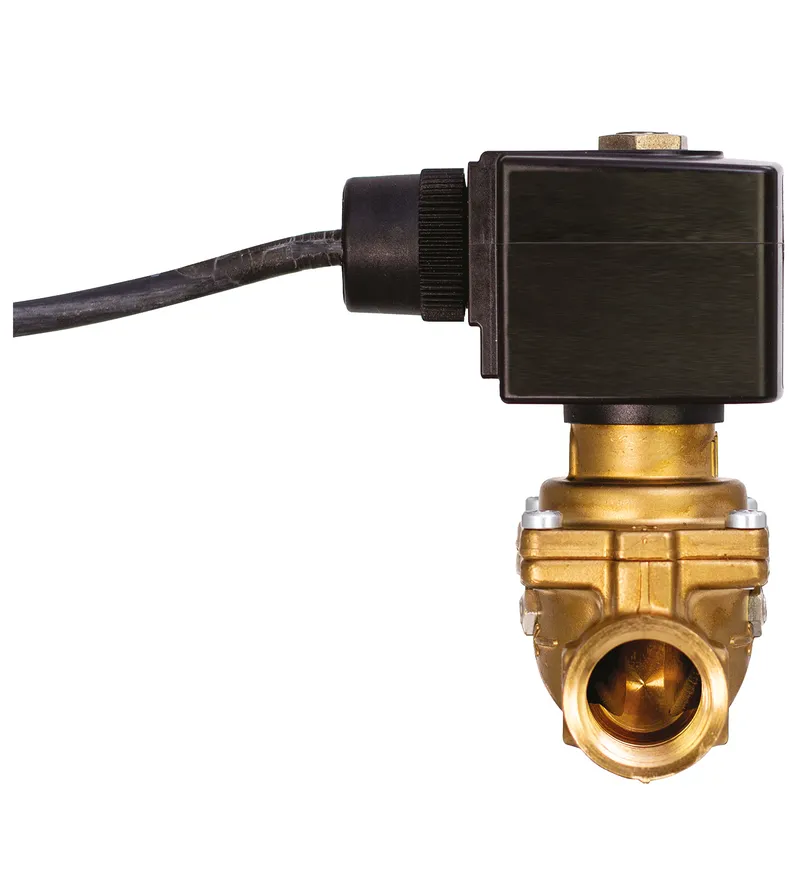

7500 Series manifold. Series: 7500. System: Type Z Purge ; Ex pzc Purge. Hazardous environment: gas or dust. Rated voltage: 230 VAC ±10%115 VAC ± 10%24 VDC ±10%. Power consumption: 230 VAC @ 1.8 W 115 VAC @ 9 W 24 VDC @ 9 W. Protective gas supply: instrument grade air or inert gas. Pressure requirement: T6 version: 0.2 bar (2.9 psi) to 4.0 bar (58 psi)T4 version: 0.2 bar (2.9 psi) to 16 bar (232 psi). Purge flow rate: Kv value water 3.8 m3/h. Connections: G1/2 (13 mm). Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Connection type: Inlet/outlet size: G 1/2 (13 mm) Jet size: 3.0 mm and 4.5 mm size (included). Degree of protection: IP65. Material: Body: brassValve (intenal): brassSeal: NBR. EU-type examination certificate: . Marking II 2 G Ex mb IIC T4/T6 Gb [exsign] II 2 D Ex mb IIIC T130 °C / T80 °C Db Protection by encapsulation EPS 18 ATEX 1232 X: . Marking: II 2 G Ex mb IIC T4/T6 Gb [exsign] II 2 D Ex mb IIIC T130 °C / T80 °C Db Protection by encapsulation EPS 18 ATEX 1232 X. Certificate: CCC approvals. MarkingEx mb IIC T4/T5/T6 GbEx mbD 21 T80°C/T95°C/T130°C: . Marking: Ex mb IIC T4/T5/T6 GbEx mbD 21 T80°C/T95°C/T130°C. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018, EN IEC 60079-7:2015/A1:2018, EN 60079-18:2015/A1:2017, EN 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018, EN IEC 60079-7:2015/A1:2018, EN 60079-18:2015/A1:2017, EN 60079-31:2014. IECEx approval: IECEx EPS 18.0110XEx mb IIC T4/T6 GbEx mb IIIC T130 °C/T80 °C Db
Specifications
General specifications
| Series | 7500 |
| System | Type Z Purge ; Ex pzc Purge |
| Hazardous environment | gas or dust |
Supply
| Rated voltage | 230 VAC ±10%115 VAC ± 10%24 VDC ±10% Ur |
| Power consumption | 230 VAC @ 1.8 W 115 VAC @ 9 W 24 VDC @ 9 W |
Pneumatic parameters
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | T6 version: 0.2 bar (2.9 psi) to 4.0 bar (58 psi)T4 version: 0.2 bar (2.9 psi) to 16 bar (232 psi) |
| Purge flow rate | Kv value water 3.8 m3/h |
| Connections | G1/2 (13 mm) |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |

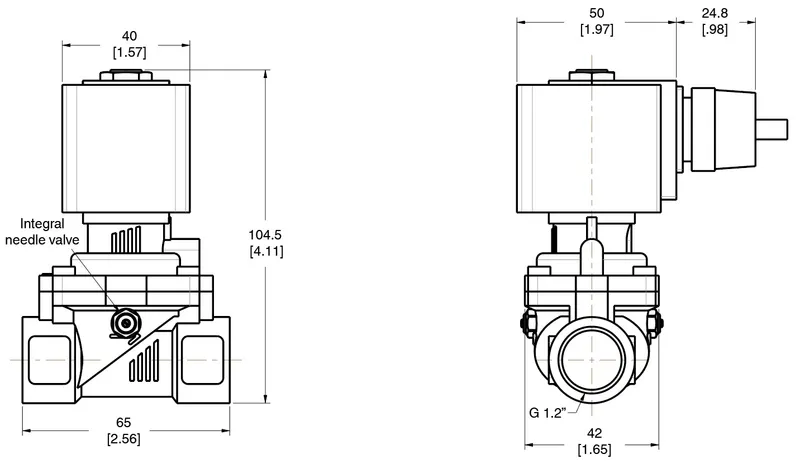

Mechanical specifications
| Connection type | Inlet/outlet size: G 1/2 (13 mm) Jet size: 3.0 mm and 4.5 mm size (included) |
| Degree of protection | IP65 |
| Material | Body: brassValve (intenal): brassSeal: NBR |
Data for application in connection with hazardous areas
| EU-type examination certificate | |
| Marking II 2 G Ex mb IIC T4/T6 Gb [exsign] II 2 D Ex mb IIIC T130 °C / T80 °C Db Protection by encapsulation EPS 18 ATEX 1232 X | Marking |
| Marking | II 2 G Ex mb IIC T4/T6 Gb [exsign] II 2 D Ex mb IIIC T130 °C / T80 °C Db Protection by encapsulation EPS 18 ATEX 1232 X |
| Certificate | CCC approvals |
| MarkingEx mb IIC T4/T5/T6 GbEx mbD 21 T80°C/T95°C/T130°C | Marking |
| Marking | Ex mb IIC T4/T5/T6 GbEx mbD 21 T80°C/T95°C/T130°C |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018, EN IEC 60079-7:2015/A1:2018, EN 60079-18:2015/A1:2017, EN 60079-31:2014 | Directive 2014/34/EU |
| Directive 2014/34/EU | EN IEC 60079-0:2018, EN IEC 60079-7:2015/A1:2018, EN 60079-18:2015/A1:2017, EN 60079-31:2014 |
International approvals
| IECEx approval | IECEx EPS 18.0110XEx mb IIC T4/T6 GbEx mb IIIC T130 °C/T80 °C Db |
