Pepperl Fuchs 7500-ACC-KIT-01

7500 Series hardware fittings kit

MPN: 7500-ACC-KIT-01
Category: Purge and Pressurization System (Type Z)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs 7500-ACC-KIT-01?

CG.NA cable glands and bulkhead fitting for electrical connections with gaskets

Pneumatic fittings and tubing for manifold connection to enclosure with gaskets

SEELOC washers for NEMA 4/IP66 panel to enclosure mounting

Assembly drawing for external and panel mounting

Can be used with any 7500-MTD-*-01 control unit

Accessory kit for mounting, electrical, and pneumatic fittings for 7500-MTD control unit

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70185540
Series	7500
System	Type Z Purge ; Ex pzc Purge
Lifecycle	Active (current Pepperl+Fuchs product)

Pneumatic parameters

Maximum pressure

Tube fitting: 0-120 psigBulkhead fitting:0-120 psig

Mechanical specifications

Degree of protection	APM SEELOC 75041 washers: Type 4X and Type 6 enclosure protection
Material	Tube Fitting for Manifold (88000-06-08): Nickel-plated brassPoly Tubing: Polyester baseAPM SEELOC 75041 washers for mounting screws: 300 series stainless steel and silicone rubberBulkhead Fitting for Manifold Tubing (88050-06): Nickel-plated brassBulkhead fitting gasket (WA.FL.M20S): Aramid fibers bonded with NBR
Dimensions	Tube fitting for manifolds (88000-06-08): ½" MNPT 0.375" (9.5 mm)Poly Tubing Tube O.D: 0.375" (9.5 mm) Tube I.D.: 0.25" (6.4 mm) Length: 78" (2 m)APM SEELOC 75041 washers Washer O.D.: 12.7 mm (for M4 thread size) Max thru hole size: 6.35 mmBulkhead fitting Hole size for enclosure: 20 mm Tube size (for poly): 0.375" (9.5 mm)Bulkhead fitting washer (WA.FL.M20S)O.D.: 23.8 mmI.D.: 20.1 mmThickness: 1.5 mm

General information

Scope of delivery

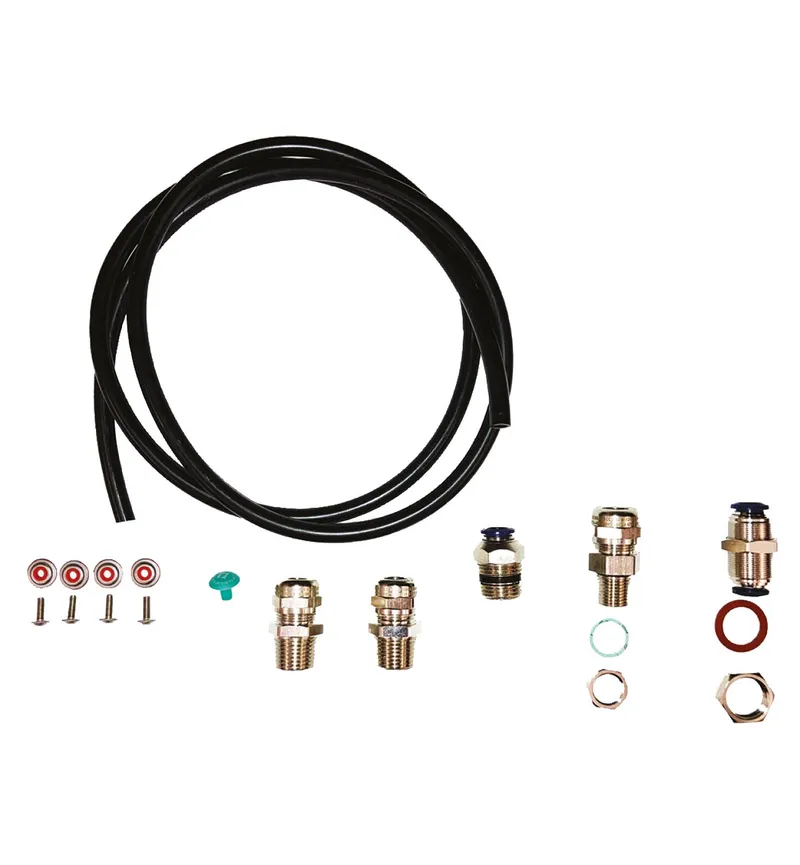

(2) Cable gland CG,NA.NPT1/2BN.C.16,BR.(1) Stopping plug BP.NA.M16-M20S.PA.GN(1) Cable bulkhead fitting CG.NA.M16.BN.C.16.K01(1) ½" to 3/8" Tube fitting for manifold (88000-06-08) 3/8" poly tubing (4 feet)(4) APM SEELOC 75041 mounting washers(4) M4 L=12 mm mounting screws for 7500-MTD(1) WA.FL.M205 washer for pneumatic bulkheadAssembly drawing 110-5128(x)
