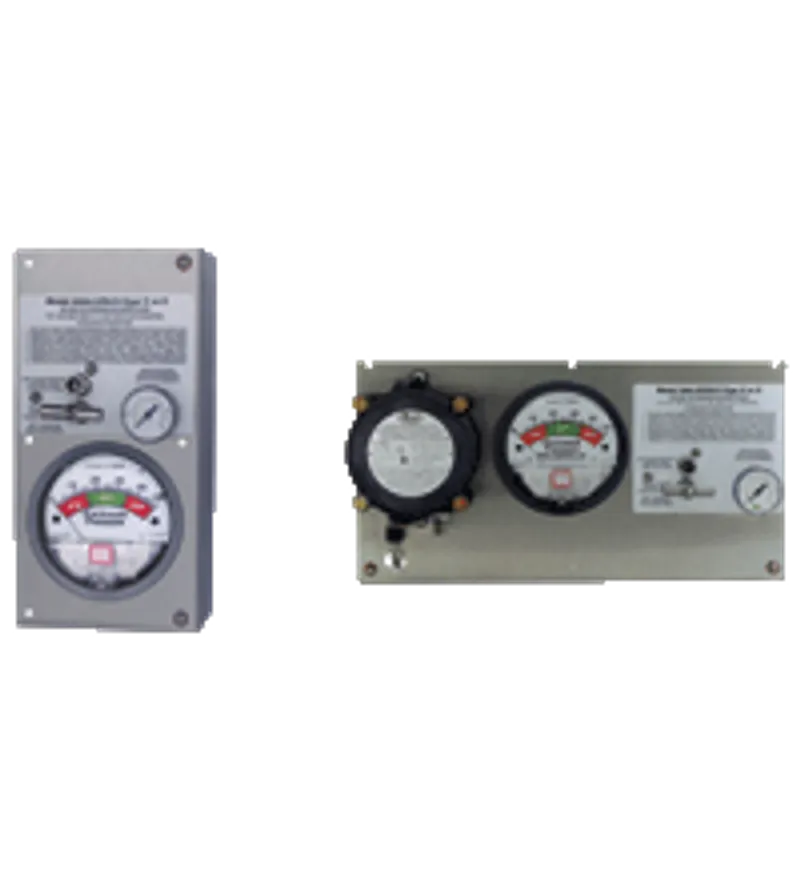

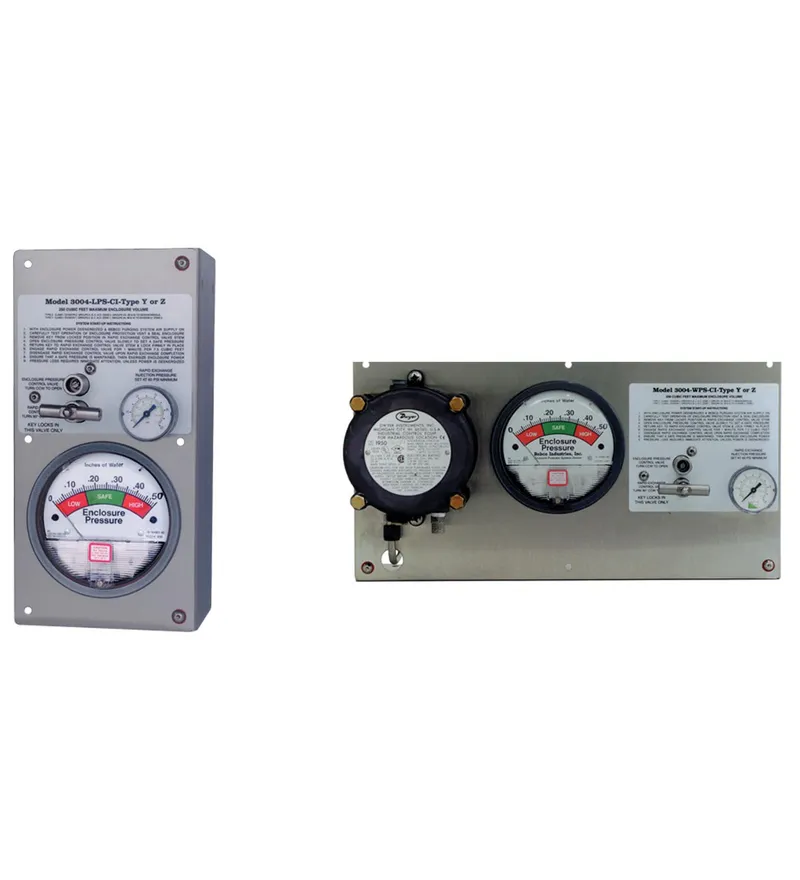

Pepperl Fuchs 3004

Series control unit, Type Y and Z

MPN: 3004
Category: Purge and Pressurization System (Type Y)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs 3004?

NFPA 496, ISA 12.4

Optional alarm output indicates air lock failure

Optional differential pressure switch for Class I, Group A-D, hazardous area locations

Type Y system certified for Class I, Division 1 to Division 2

Type Z system certified for Class I, Division 2 to nonhazardous area

Enclosure volume up to 7.08 m3 (250 ft3)

Type Y & Z pressurization system for Class I areas

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T156348
Series	3004 Series
System	Type Y Purge , Type Z Purge
Hazardous environment	gas
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Connection

Terminal blocks

Output

Output I	-WPS-
Output type	Switch contacts
Contact loading	120 VAC @ 15 A
Output II	-WPSA-
Output type	Switch contacts
Contact loading	120/220 VAC; 24 VDC @ 10 A; 125 VDC @ 50 mA power requirements: 24 / 120 / 240 VDC @ 3 / 4 / 11 watts

Pneumatic parameters

Protective gas supply	instrument grade air or inert gas
Pressure requirement	80 - 120 psi (5.5 - 8.3 bar) For WPSA models using the optional inline filter, the max. supply pressure is 80 psi.
Safe pressure	Setpoint: 0.25" (6.35 mm) Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr)
Purge flow and enclosure pressure rate	30 SCFM /1800 SCFH (850 l /m / 50976 l/hr) (With regulator set to 60 psi min. during exchange)

Operating conditions

Process conditions: Exchange time

4 volume exchange rate: 1 min / 7.5 ft3 (212.4 l/m)5 volume exchange rate: 1 min / 6.0 ft3 (169.9 l/m)

Ambient conditions

Ambient temperature

-29 °C - 49 °C (-20 °F - 120 °F) -18 °C - 49 °C (-0 °F - 120 °F) For WPSA models using the "B" option (with BUNA-N diaphragm)

Mechanical specifications

Connection type	System supply port: 1/2" FPT Enclosure supply port: 1/2" FPT Enclosure reference fitting: 1/4" tube Switch conduit port size: 1/2" FPT
Material	Regulator body: zinc w/enamel finish Regulator handle & bowl: polycarbonate Enclosure pressure gauge: alum. w/enamel finish Rapid Exchange® gauge: poly & nickel plated Tube fitting: 316 SS forged body Tubing: 316 SS 1/4" .035 welded Fastener hardware: alum. & stainless steel System face plate: 316 14 ga #3 brush SS System mounting flange: 316 SS tumble finish Manifold body: anodized aluminum Manifold valves: 316 SS Mfr. ID nameplate: silkscreen Lexan®
Mass	3004-LPS-* 5.4 kg (12 lb) 3004-WPS-* 7.7 kg (17 lb)

International approvals

FM approval	Type Y LPS: Class I, Division 1, Groups A, B, C, D WPS: Class 1, Division 1, Groups C, D WPSA: Class I, Division 1, Groups A, B, C, D Type ZLPS: Class I, Division 2, Groups A, B, C, D WPS: Class 1, Division 2, Groups C, D WPSA: Class I, Division 2, Groups A, B, C, D
UL approval: cULus	Type Y LPS: Class I, Division 1, Groups A, B, C, D WPS: Class 1, Division 1, Groups C, D WPSA: Class I, Division 1, Groups A, B, C, D Type ZLPS: Class I, Division 2, Groups A, B, C, D WPS: Class 1, Division 2, Groups C, D WPSA: Class I, Division 2, Groups A, B, C, D
