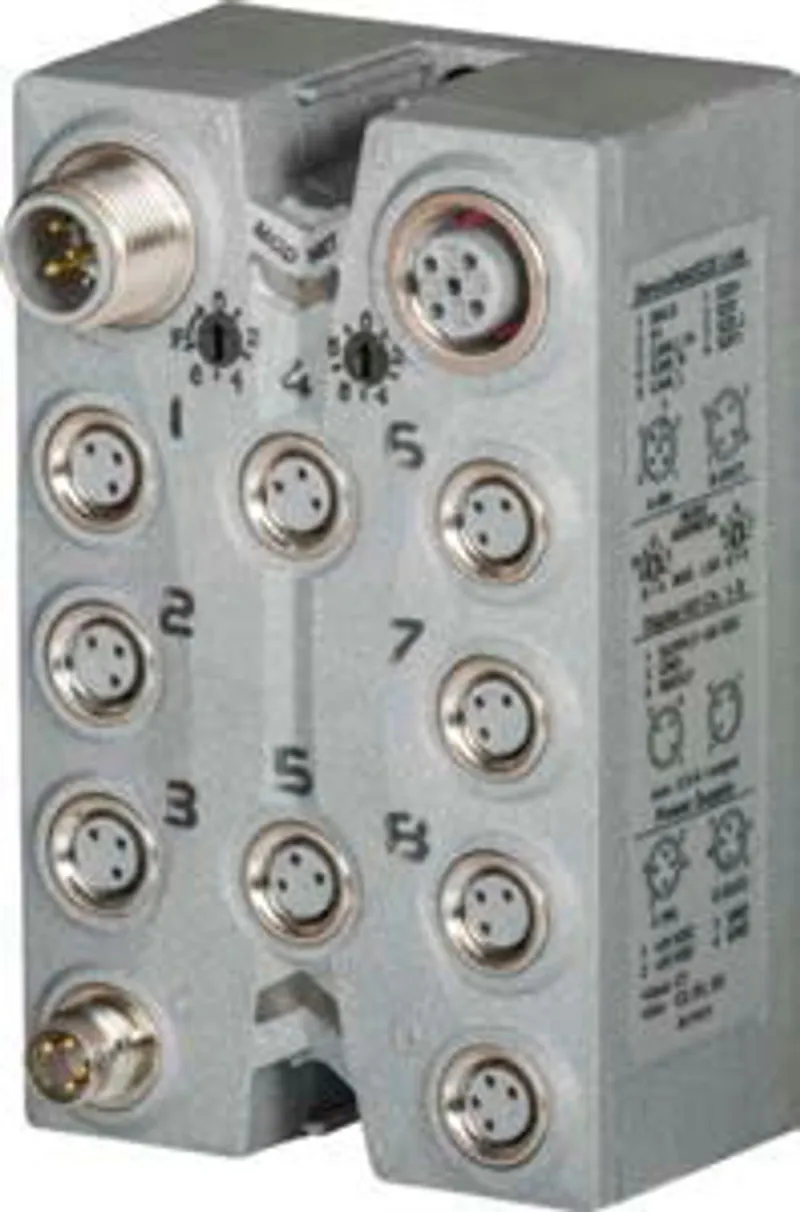

B&R X67BC5321 – Bus controller, deviceNet adapter

Name: B&R X67BC5321 – Bus controller, deviceNet adapter
Brand: B&R
SKU: X67BC5321

MPN: X67BC5321 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Bus controller modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	200 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67BC5321 be shipped?

X67BC5321 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67BC5321 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67BC5321 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67BC5321, subject to availability and destination.

• Fieldbus: DeviceNet

• 8 digital channels, configurable as inputs or outputs

• Simple I/O configuration via the fieldbus

• Support of both linear and modular (Allen Bradley) configuration systems

• Auto scan, automatic I/O mapping of the I/Os

• Automatic I/O configuration

• Integrated connection to local expansion via X2X Link for 39 additional modules (including up to 16 analog modules)

• 1 ms cycle time for local expansion

DeviceNet was developed by Allen-Bradley as a CAN bus based automation network. It is based on a producer/consumer protocol. From the user's point of view, all data is handled completely separately from the features of the CAN bus ( e.g. longer data packets are fragmented automatically by DeviceNet). I/O messages with defined characteristics are used for access.

This bus controller makes it possible to connect X2X Link I/O nodes to DeviceNet. It has automatic transfer rate detection, auto scan, automatic mapping and automatic configuration of the I/O modules. Explicit messaging, change of state, cyclic, polled and bit strobe are supported as transfer modes.

In addition to the standard communication objects, there are also vendor-specific objects used to represent the modular X67 system in the best manner possible. X67 and other modules that are based on X2X Link can be connected to the bus controller.

The entire configuration of this type of modular system is supported by the DeviceNet standard. Allen Bradley developed the modular I/O configuration to simplify the necessary configuration steps. The DeviceNet bus controllers from B&R also support this type of configuration.

With multifunction modules, the bus controller supports only the default function model in the event of automatic configuration by the bus controller (see the respective module description).
