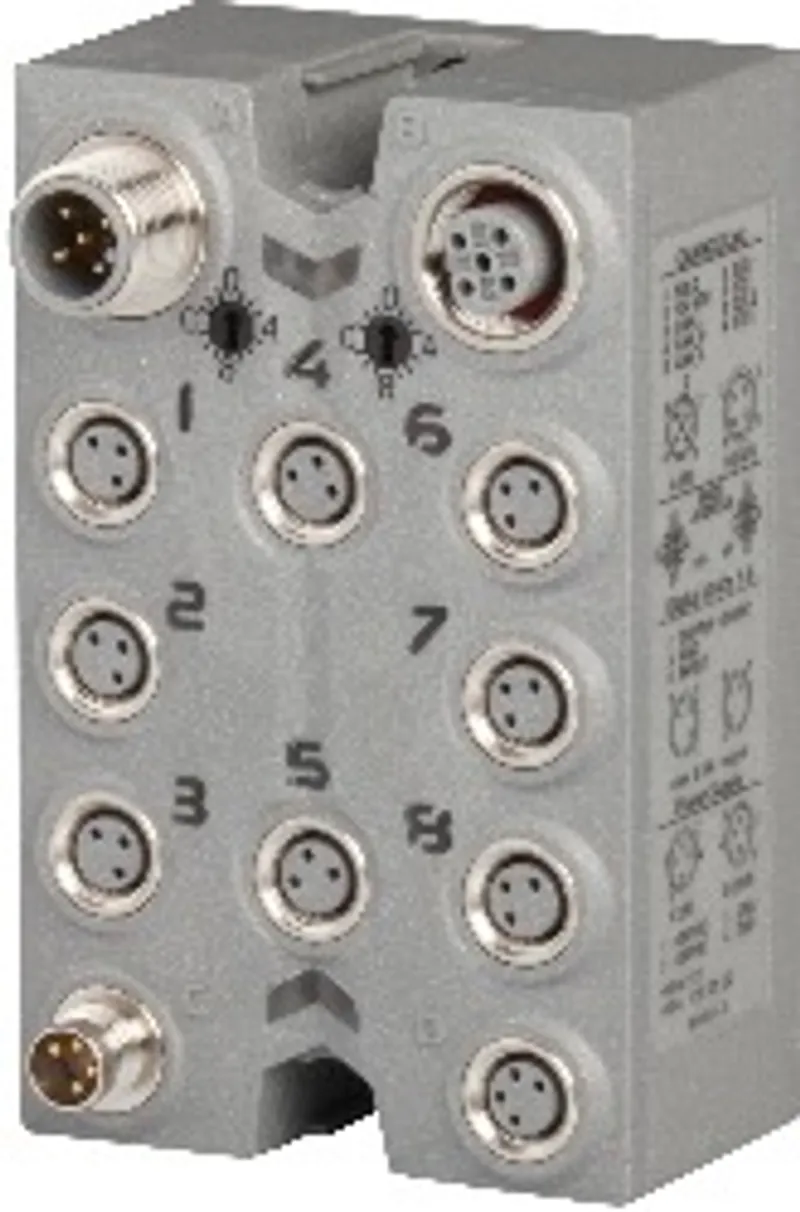

B&R X67BC4321 – Bus controller, CANopen

MPN: X67BC4321 · Brand: B&R
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBus controller modules
LifecycleActive
Warranty12-month (new) · 3-month (used/refurbished)
Weight200 kg
DatasheetManufacturer datasheet ↗

Shipping & availability

When can X67BC4321 be shipped?

X67BC4321 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67BC4321 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67BC4321 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67BC4321, subject to availability and destination.

• Fieldbus: CANopen

• 8 digital channels, can be configured as input or output

• Simple I/O configuration via the fieldbus

• Integrated connection to the local expansions via X2X Link for 39 additional modules

• Configurable I/O cycle (0.4 to 1.3 ms)

CAN (Controller Area Network) has become considerably widespread in automation technology. CAN topology is based on a line structure and uses twisted pair wires for data transfer. CANopen is a higher-layer protocol based on CAN. This standardized protocol offers highly flexible configuration possibilities.

This bus controller makes it possible to connect X2X Link I/O nodes to CANopen . The bus controller has automatic transfer rate detection and AutoMapping of the I/O modules connected with X2X Link. All CANopen operating modes such as synchronous, event and polling modes are supported together with PDO linking, life/node guarding, emergency objects and much more.

Specifications

Short description

Bus controllerCANopen

General information

B&R ID code – Bus controller0x17D4
B&R ID code – Internal I/O module0x1311
Diagnostics – OutputsYes, using LED status indicator and software
Diagnostics – I/O power supplyYes, using LED status indicator and software
Connection type – FieldbusM12, A-coded
Connection type – X2X LinkM12, B-coded
Connection type – Inputs/Outputs8x M8, 3-pin
Connection type – I/O power supplyM8, 4-pin
Power consumption – Fieldbus2.7 W
Power consumption – Internal I/O2 W
Power consumption – X2X Link power supply6.6 W at maximum power output for connected I/O modules
Certifications – CEYes
Certifications – UKCAYes
Certifications – ATEXZone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – ULcULus E115267; Industrial control equipment
Certifications – HazLoccCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KCYes
Inputs/Outputs8 digital channels, configurable as inputs or outputs using software, inputs with additional functions
Insulation voltage between channel and bus500 V eff
Nominal voltage24 VDC
Sensor/Actuator power supply0.5 A summation current
Status indicatorsI/O function per channel, supply voltage, bus function
Power output3 W X2X Link power supply for I/O modules

Interfaces

Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – FieldbusNo limitation
Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – X2X Link400 μs
FieldbusCANopen
VariantM12 interface (male connector on the module)
Max. distance1000 m
Transfer rateMax. 1 Mbit/s
Default transfer rateAutomatic transfer rate detection
Synchronization between bus systems possibleNo
Terminating resistorCan be optionally screwed onto the Y-connector

I/O power supply

Power consumption – Sensor/Actuator power supplyMax. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.">
Nominal voltage24 VDC
Voltage range18 to 30 VDC
Integrated protectionReverse polarity protection

Sensor/Actuator power supply

VoltageModule power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 0.5 AMax. 2 VDC
Summation currentMax. 0.5 A
Short-circuit proofYes

Digital inputs

Input filter – Hardware≤10 μs (channels 1 to 4) / ≤70 µs (channels 5 to 8)
Input filter – SoftwareDefault 0 ms, configurable between 0 and 25 ms in 0.1 ms intervals
Switching threshold – Low<5 VDC
Switching threshold – High>15 VDC
Input voltage18 to 30 VDC
Input current at 24 VDCTyp. 4 mA
Input circuitSink
Input resistanceTyp. 6 kΩ
Additional functions50 kHz event counting, gate measurement

Event counters

Quantity2
Signal formSquare wave pulse
EvaluationEach negative edge, cyclic counter
Input frequencyMax. 50 kHz
Counter 1Input 1
Counter 2Input 3
Counter frequencyMax. 50 kHz
Counter size16-bit

Gate time measurement

Counter frequency – Internal48 MHz, 3 MHz, 187.5 kHz
Quantity1
Signal formSquare wave pulse
EvaluationPositive edge - Negative edge
Counter size16-bit
Length of pause between pulses≥100 µs
Pulse length≥20 µs
Supported inputsInput 2 or input 4

Digital outputs

Switching delay – 0 → 1<400 µs
Switching delay – 1 → 0<400 µs
Switching frequency – Resistive loadMax. 100 Hz
Switching frequency – Inductive loadSee section "Switching inductive loads".
VariantCurrent-sourcing FET
Switching voltageModule power supply minus residual voltage
Nominal output current0.5 A
Total nominal current4 A
Output circuitSource
Output protectionThermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Diagnostic statusOutput monitoring with 10 ms delay
Leakage current when the output is switched off5 µA
Switching on after overload shutdownApprox. 10 ms (depends on the module temperature)
Residual voltage<0.3 V at 0.5 A nominal current
Peak short-circuit current<12 A
Braking voltage when switching off inductive loads50 VDC

Electrical properties

Electrical isolationChannel isolated from CANopen and bus ; CANopen not isolated from bus and channel not isolated from channel

Operating conditions

Mounting orientation – AnyYes
Installation elevation above sea level – 0 to 2000 mNo limitation
Installation elevation above sea level – >2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP67

Ambient conditions

Temperature – Operation0 to 60°C
Temperature – Derating-
Temperature – Storage-25 to 85°C
Temperature – Transport-25 to 85°C

Mechanical properties

Dimensions – Width53 mm
Dimensions – Height85 mm
Dimensions – Depth42 mm
Torque for connections – M8Max. 0.4 Nm
Torque for connections – M12Max. 0.6 Nm
Weight200 g
