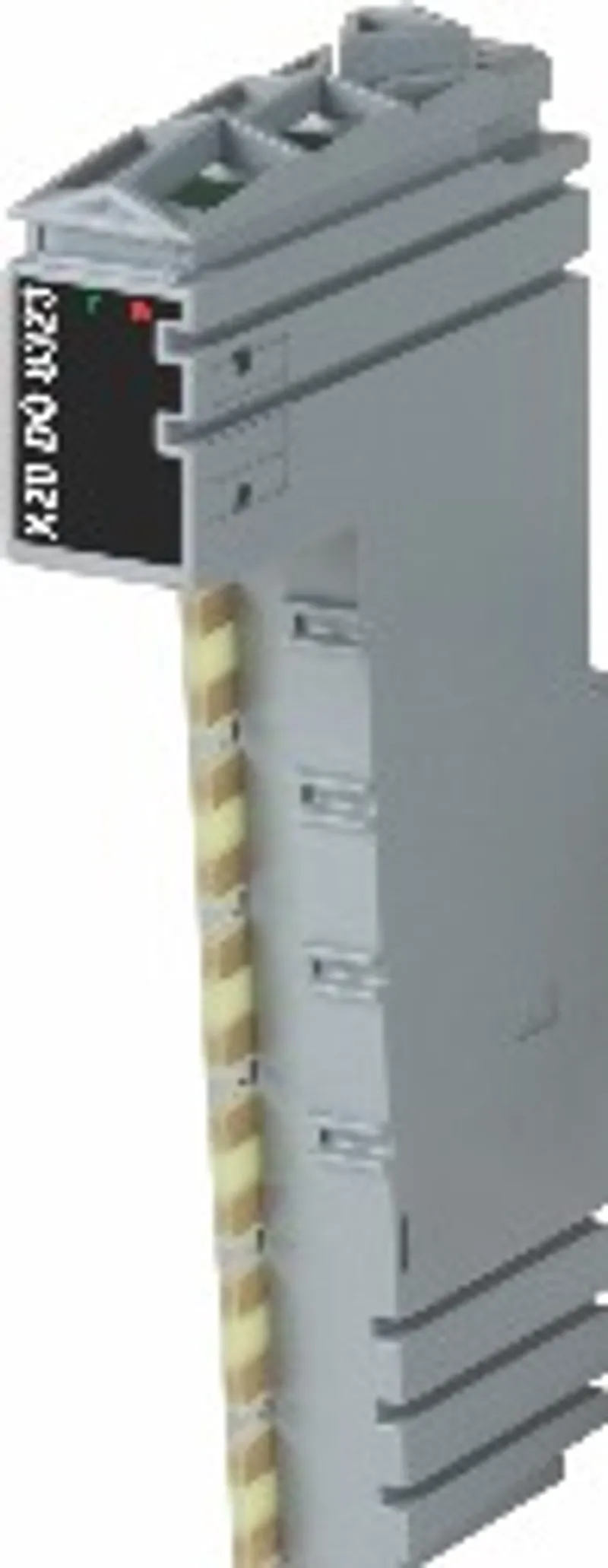

B&R X20DO8323 – I/O module, 8 digital outputs 11.5 to 30 V with 1-wire…

Name: B&R X20DO8323 – I/O module, 8 digital outputs 11.5 to 30 V with 1-wire…
Brand: B&R
SKU: X20DO8323

MPN: X20DO8323 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital outputs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20DO8323 be shipped?

X20DO8323 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20DO8323 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20DO8323 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO8323, subject to availability and destination.

• 8 digital outputs

• High-side or low-side connection

• Push/pull outputs

• 1-wire connections

• Integrated output protection

The module is an electrically isolated 8-channel digital output module. It can be configured as high-side or low-side or as a push/pull output for controlling 12 to 24 VDC DC motors.

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

8 digital outputs 11.5 to 30 V with 1-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using software
Power consumption – Bus	0.16 W
Power consumption – External I/O	0.2 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
B&R ID code	0xDF4E
Status indicators	Operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Digital outputs

Diagnostic status – Voltage monitoring " data-placement="top" data-html="true" data-container="body" data-content="The outputs are cut off in the event of undervoltage.">	11.5 V < Supply voltage < 30 V
Diagnostic status – Output monitoring	Output OK
Switching delay – 0 → 1	Max. 450 μs
Switching delay – 1 → 0	Max. 450 μs
Switching frequency – Resistive load	Max. 100 Hz
Switching voltage – Minimum	11.5 VDC
Switching voltage – Nominal	12 to 24 VDC
Switching voltage – Maximum	30 VDC
Protective circuit – External	24 VDC power supply - maximum current 5 A (melting fuse)
Protective circuit – Internal	Thermal shutdown, integrated protection for switching inductive loads
Variant	FET push/pull (high-resistance)
Nominal voltage	11.5 to 30 V
Nominal output current	0.5 A
Total nominal current	4 A
Connection type	1-wire connections
Output circuit	Sink/Source
Leakage current when the output is switched off	5 μA per channel
R DS(on)	120 mΩ (low-side), 140 mΩ (high-side)
Insulation voltage between channel and bus	500 V
Reverse polarity protection	Yes

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20DO8323	PDF · 763 KB · 1.40 (10/02/2024) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20 Electronic module	ZIP · 10 KB · 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice	ZIP · 872 KB · 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module	PDF · 3 KB · 1.0 (10/17/2005)

Certificates (7)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice	PDF · 92 KB · 1.00 (09/30/2025)
EU Declaration ATEX X20	PDF · 218 KB · 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20	PDF · 169 KB · 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
UK Declaration PLC X20	PDF · 151 KB · 2024-01 (01/18/2024)
