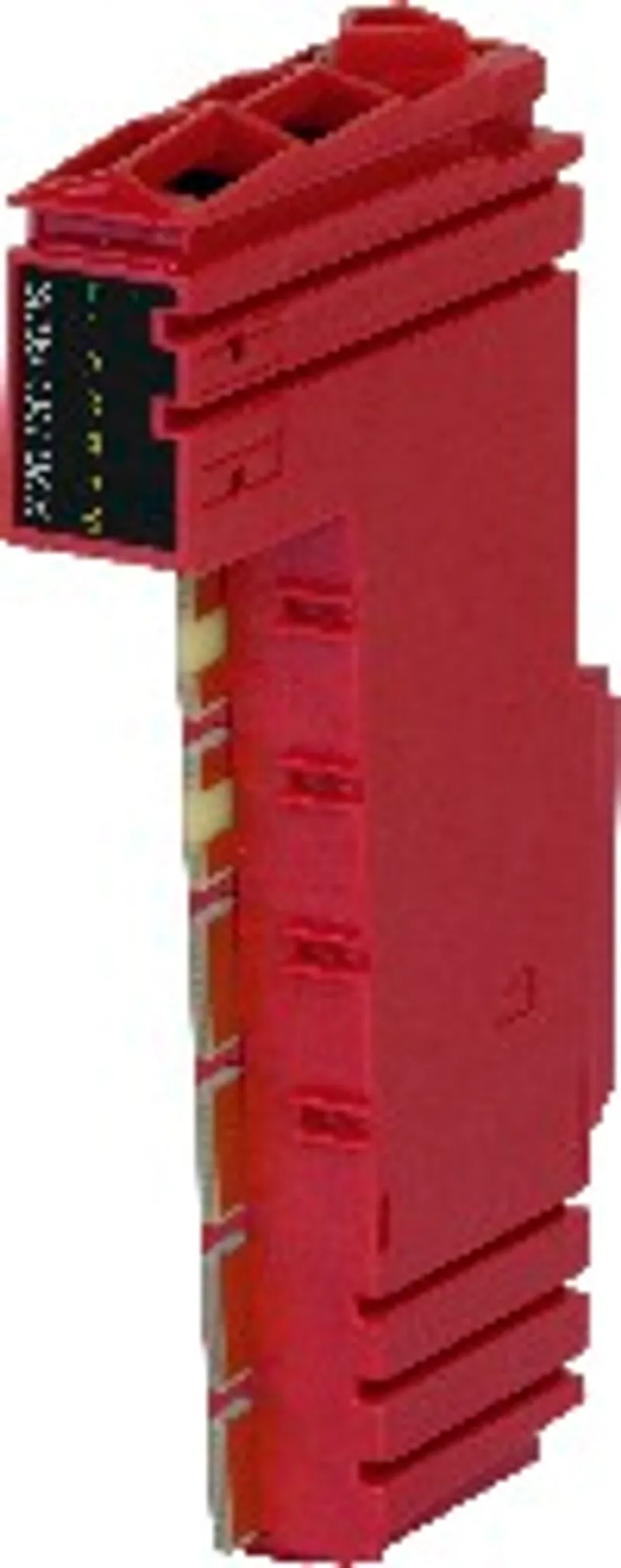

B&R X20DO6639 – I/O module, 6 digital outputs 30 VDC / 240 VAC
MPN: X20DO6639 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Digital outputs |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20DO6639 be shipped?
X20DO6639 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20DO6639 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20DO6639 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO6639, subject to availability and destination.
• 6 digital outputs
• Relay module for 240 VAC / 30 VDC
• Switching current 2 A
• 6 normally open contacts
• Single-channel isolated outputs
This module is equipped with 6 relay outputs with normally open contacts for 240 VAC / 30 VDC. The outputs are single-channel isolated.
Accessories
Required accessories (order separately)
| X20BM12 | Bus modules — Bus module for 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module and terminal… |
| X20TB32 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 6 digital outputs 30 VDC / 240 VAC, outputs single-channel isolated |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator |
| Diagnostics – Outputs | Yes, using LED status indicator |
| Power consumption – Bus | 1 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| B&R ID code | 0xDF50 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x Contact resistance x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual."> | +0.36 |
Digital outputs
| Switching delay – 0 → 1 | ≤10 ms |
| Switching delay – 1 → 0 | ≤10 ms |
| Insulation voltages – Channel - Bus | Tested at 2300 VAC |
| Insulation voltages – Channel - Channel | Tested at 750 VAC |
| Service life – Electrical " data-placement="top" data-html="true" data-container="body" data-content="With resistive load. See also section "Electrical service life"."> | Min. 120 x 10 3 ops. (at 2 A / 240 VAC) |
| Service life – Mechanical | Min. 2 x 10 7 ops |
| Switching capacity – AC | 3000 W |
| Switching capacity – DC | 360 W |
| Switching capacity – Minimum | 0.05 W DC / 2.4 W AC |
| Switching capacity – Maximum | 60 W DC / 480 W AC |
| Protective circuit – AC | RC combination or VDR |
| Protective circuit – DC | Inverse diode, RC combination or VDR |
| Protective circuit – Internal | None |
| Variant | Relay / Normally open contact ; Channels are single-channel isolated. |
| Nominal voltage | 30 VDC / 240 VAC |
| Max. voltage | 264 VAC |
| Switching voltage | Max. 110 VDC / 264 VAC |
| Rated frequency | DC / 45 to 63 Hz |
| Nominal output current | 2 A at 30 VDC / 2 A at 240 VAC |
| Total nominal current | 10 A at 30 VDC / 10 A at 240 VAC |
| Actuator power supply | External |
| Contact resistance | Max. 100 mΩ |
Electrical properties
| Electrical isolation | Channel isolated from bus and I/O power supply |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Not permitted |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB32 separately, order 1x bus module X20BM12 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)DO6639 | PDF · 2 MB · 1.50 (10/01/2024) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
