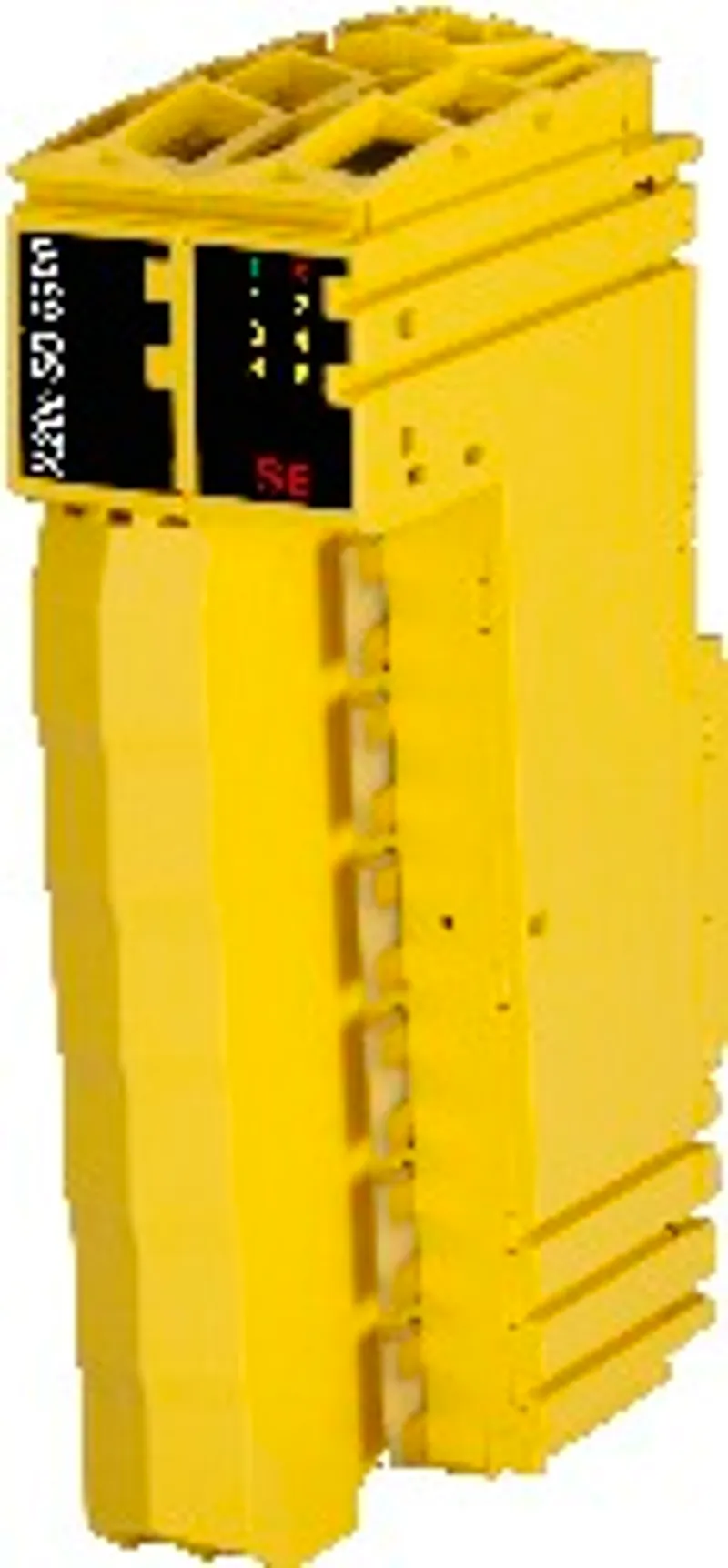

B&R X20cSO6300 – I/O module, 6 safe type B1 digital outputs, 24 VDC, 0.2 A

Name: B&R X20cSO6300 – I/O module, 6 safe type B1 digital outputs, 24 VDC, 0.2 A
Brand: B&R
SKU: X20cSO6300

MPN: X20cSO6300 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital output modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20cSO6300 be shipped?

X20cSO6300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20cSO6300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20cSO6300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cSO6300, subject to availability and destination.

• 6 safe digital outputs with 0.2 A

• Source circuit

• Output type B

• Integrated output protection

This module is equipped with 6 safe digital outputs. The nominal output current is 0.2 A.

The module can be used for controlling actuators in safety-related applications up to PL e or SIL 3.

The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles. The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g. Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case. Safe digital output channels provide protection against automatic restart when network errors occur.

This module is designed for X20 12-pin terminal blocks.

Accessories

Required accessories (order separately)

X20cBM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…

Specifications

Short description

I/O module

6 safe type B1 digital outputs, 24 VDC, 0.2 A, OSSD <10 µs

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.32 W
Power consumption – Internal I/O	1.4 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508:2010, SIL 3; EN 62061:2005/A2:2015, SIL 3; EN ISO 13849-1:2015, Cat. 4 / PL e; IEC 61511:2004, SIL 3
Certifications – Functional safety	EN 50156-1:2004
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
B&R ID code	0xDD88
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	1.128

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital outputs

Quantity	6
Variant	FET, 2x positive switching, type B1, output level readable
Nominal voltage	24 VDC
Nominal output current	0.2 A
Total nominal current	1.2 A
Output protection	See section "Inrush current behavior for output channels".
Braking voltage when switching off inductive loads	Max. 45 VDC
Error detection time	1 s
Insulation voltage between channel and bus	500 V eff
Peak short-circuit current	See section "Inrush current behavior for output channels".
Leakage current when the output is switched off	<100 µA
R DS(on)	4.7 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Max. switching frequency	See section "Inrush current behavior for output channels".
Test pulse length	Max. 10 µs
Max. capacitive load	100 nF

Current on loss of ground

I OUT	<100 µA
I GND	<70 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -25°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20(c)SO6300 - Legacy	PDF · 2 MB · 1.141 (05/03/2019) - EN
Data sheets SafeIO and SafeLogic	PDF · 28 MB · 3.5.0 (09/02/2026) - EN
Integrated safety technology user's manual	PDF · 46 MB · 6.8.0 (09/02/2026) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D file STEP X20(c)Sxxxxx - Terminal block right side

ZIP · 21 KB · 1.00 (06/09/2016)

Certificates (11)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20-X67 SafeIO - Connected Product Information Notice	PDF · 93 KB · 1.0 (10/02/2025)
EU Declaration FS PLC X20	PDF · 210 KB · 2019/07 (09/23/2019)
EU Declaration of Conformity CE_Declaration_FS_X20	PDF · 420 KB · 1.00 (03/16/2026)
EU_Declaration_of_Conformity_X20_FuctionalSafety	PDF · 434 KB · 2026_09 (09/21/2026)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
M6A 041745 0010 TÜV Süd FS Certificate SafeDESIGNER, SafeLOGIC, SafeIO	PDF · 2 MB · 1.10.46 (09/09/2026)
M6A 041745 0013 TÜV Süd FS Certificate mapp Safety	PDF · 2 MB · 6.4.3 / 1.40 (09/01/2026)
M6A 041745 0023 TÜV Süd FS Certificate Safety+	PDF · 3 MB · 6.8.0 / 1.6 (09/02/2026)
UK Declaration FS PLC X20	PDF · 112 KB · 2022-07 (09/01/2022)
