Home / B&R / B&R X20cSO2530 – I/O module, 2 relays with 1 normally open contact each

Available on request

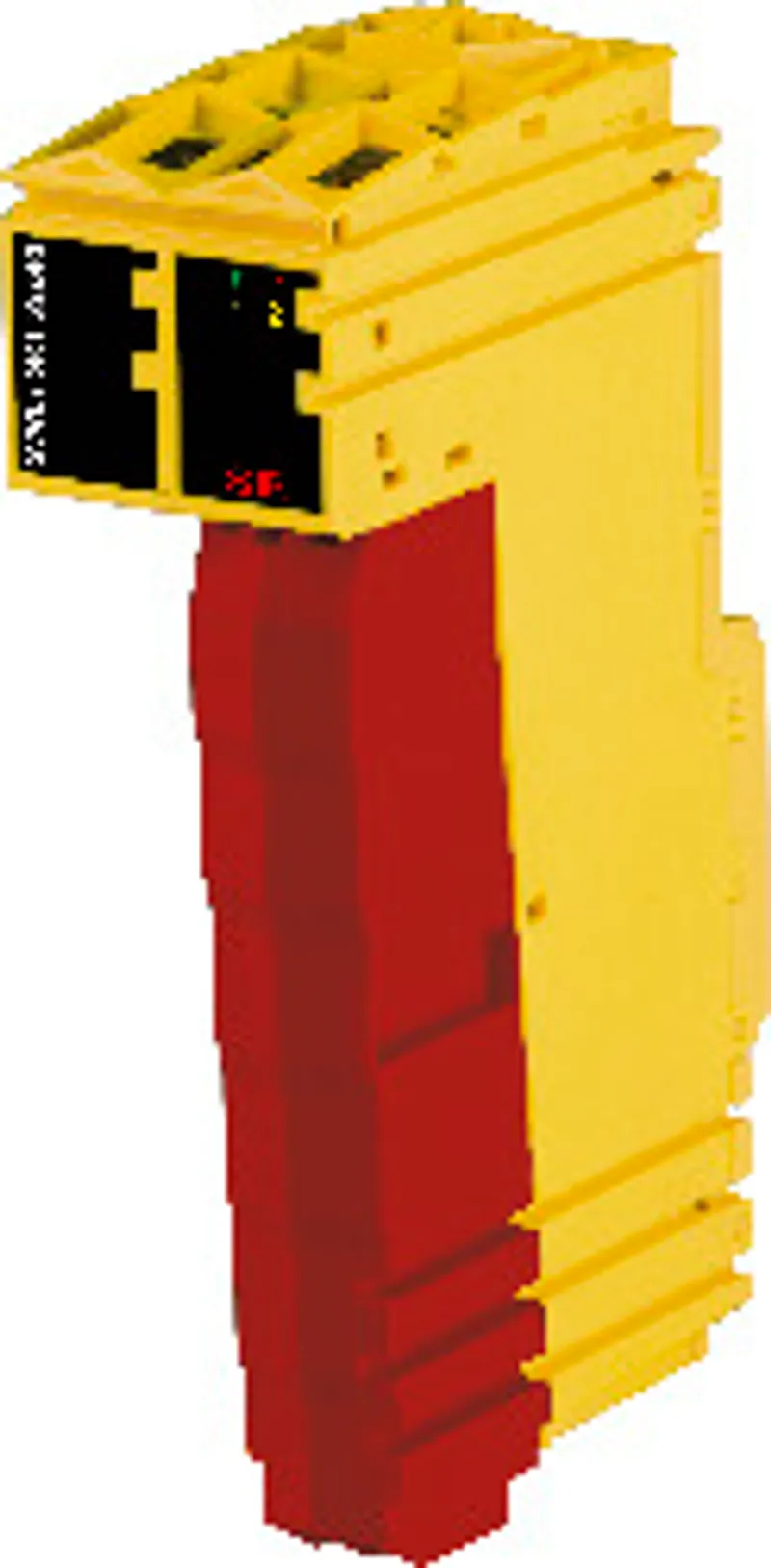

B&R X20cSO2530 – I/O module, 2 relays with 1 normally open contact each

Name: B&R X20cSO2530 – I/O module, 2 relays with 1 normally open contact each
Brand: B&R
SKU: X20cSO2530

MPN: X20cSO2530 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital output modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20cSO2530 be shipped?

X20cSO2530 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20cSO2530 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20cSO2530 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cSO2530, subject to availability and destination.

• 2 safe relay outputs

• Output type "Relay"

• Relay module for 230 VAC / 24 VDC

• Switching current 6 A

• Normally open contact

• Single-channel isolated outputs

This module is equipped with 2 safe relay outputs.

The module can be used for controlling floating actuators in safety-related applications up to PL e or SIL 3.

Safety relays are installed in the module. The positively driven feedback contacts are evaluated internally by the module. Safe digital output channels provide protection against automatic restart when network errors occur.

This module is designed for X20 12-pin terminal blocks.

Accessories

Required accessories (order separately)

X20cBM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB72	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…

Specifications

Short description

I/O module

2 relays with 1 normally open contact each, 230 VAC / 6 A, 24 VDC / 6 A

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.26 W
Power consumption – Internal I/O	1.15 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	Yes
Certifications – EN 50155	Yes
Certifications – EN 61810-3	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508:2010, SIL 3; EN 62061:2005/A2:2015, SIL 3; EN ISO 13849-1:2015, Cat. 4 / PL e; IEC 61511:2004, SIL 3
Certifications – Functional safety	EN 50156-1:2004
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
B&R ID code	0xDD86
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x Contact resistance x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	1.44

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Relay outputs

Switching delay – 0 → 1	<50 ms
Switching delay – 1 → 0	<50 ms
Max. switching capacity – UL 508	B300 / R300
Quantity	2
Variant	Relay / Normally open contact, internal high-side and low-side control
Nominal output current	5 mA to 6 A
Diagnostic status	Contact position determined by positively driven contacts
Max. switching frequency	See section "Inrush current behavior for output channels".
Insulation voltage between channel and bus	Safe disconnection of 300 VAC per EN 50178
Insulation voltage between channel and channel	Tested at 1350 VAC
Contact resistance (without terminal block)	20 mΩ
Contact service life	See "Contact service life".
Short-circuit/Overload protection	External 6 A gL/gG fuse (melting fuse), LS automat C characteristic 1.6 A
Switching voltage range	5 to 24 VDC, 5 to 230 VAC
Coil voltage	24 VDC -15% / +20%
Short-circuit proof	Yes, 1000 A (with specified short-circuit/overload protection)
Max. inrush current	30 A for 20 ms
Overvoltage category per EN 60664-1	II

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation " data-placement="top" data-html="true" data-container="body" data-content="Compared to the value in the X20 system user's manual, where the angle of the horizontal mounting orientation is specified as 70°, this only applies up to an angle of 85° for the X20(c)SO2530. Below this, the derating for face-up installation must be applied.">	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -25°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm
