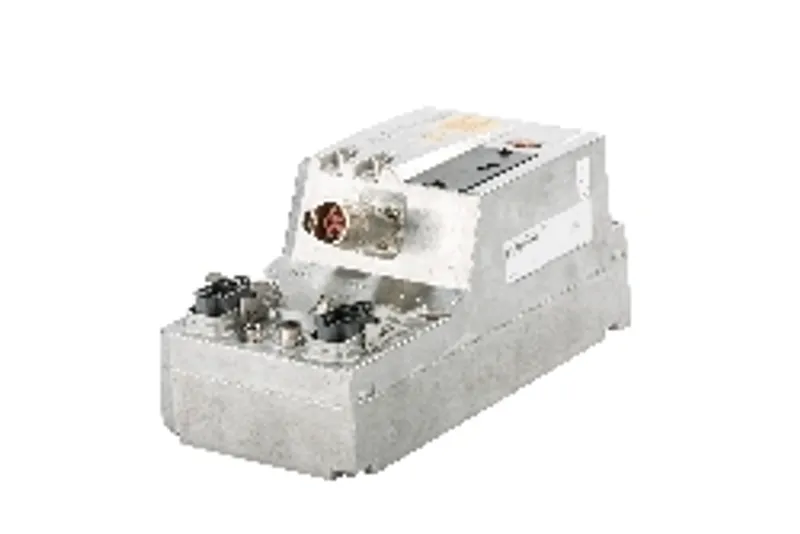

B&R 8CVI045S1HCS0.00-1

Name: B&R 8CVI045S1HCS0.00-1
Brand: B&R
SKU: 8CVI045S1HCS0.00-1

MPN: 8CVI045S1HCS0.00-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ACOPOSmulti65 inverter modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	4.8 kg

Shipping & availability

When can 8CVI045S1HCS0.00-1 be shipped?

8CVI045S1HCS0.00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8CVI045S1HCS0.00-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8CVI045S1HCS0.00-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CVI045S1HCS0.00-1, subject to availability and destination.

Uncontrolled and safe stops integratedSinCos encoder connectionIntegrated connections for local I/O nodesSimplified wiring ACOPOSremote ACOPOSmulti65 inverter module, 4.5 A, AS, IP65, 1x SinCos encoder interface, cold plate mounting

Specifications

Module type	ACOPOSremote module
B&R ID code	0xB5CB
Power contacts	Max. 20 A at 40°C
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Cold plate mounting
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes
Nominal	5 to 40°C
Continuous power consumption	In preparation
Switching frequency 5 kHz	10 m
Switching frequency 10 kHz	5 m
Switching frequency 20 kHz	5 m
DC bus capacitance	35 µF
Variant	M8 connector
Maximum	60°C
Input voltage	24 VDC +20% / -25%
Input capacitance	In preparation
Max. power consumption	10 W + P24 V out + PHolding brake + PTrigger
Quantity	1
Output voltage	5 V ±5%
Continuous current	Max. 8 A (max. 4 A per pin)
Fuse protection	Electronic (per pin)
24 VDC, COM	M8 connector
Continuous power per motor connection	1.5 kW
Continuous current per motor connection	4.5 Aeff
Starting at 500 m above sea level	0.45 A per 1,000 m
Peak current	13.5 Aeff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
U, V, W, PE	8-pin speedtec connector, size 1
Shield connection	Yes (via connector housing)
Continuous current per connection	1.1 A
Max. internal resistance	In preparation
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	1.5 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.25 A
Response threshold for undervoltage monitoring	24 VDC +0% / -4%
Type	SinCos
Line length	Max. 100 m between two stations (segment length)
Transfer rate	100 Mbit/s
Module-side connection	15-pin female springtec connector
Status indicators	UP/DN LEDs
Encoder - ACOPOSremote	No
Encoder monitoring	Yes
Max. encoder cable length	10 m
Load capacity	300 mA
Sense lines	2, compensation of max. 2 x 0.7 V
Overload-proof	Yes
Short-circuit proof	Yes
Signal transmission	Differential signal, symmetrical
Signal frequency (-3 dB)	DC up to 300 kHz
Signal frequency (-5 dB)	DC up to 400 kHz
Differential voltage	0.5 to 1.25 Vss
Common-mode voltage	Max. ±7 V
Terminating resistor	120 Ω
ADC resolution	12-bit
Differential voltage for low	≤-0.2 V
Differential voltage for high	≥0.2 V
Resolution @ 1 VSS	Number of encoder lines * 5700
Accuracy	-
Noise	-
Circuit	Sink
Input resistance	1470 Ω
Input - ACOPOSremote	No
Input - Input	No
Minimum	-12 V
Low	<5 V
High	>15 V
Switching delay	Max. 100 µs
Input - Inverter module	No
Input current at nominal voltage	In preparation
Enable 1 → 0, PWM off	Max. 20.5 ms
Enable 0 → 1, ready for PWM	Max. 100 µs
Modulation compared to ground potential	In preparation
OSSD signal connections	Permitted Max. test pulse length: 500 µs
Rising edge	In preparation
Falling edge	In preparation
Max. line length	30 m
Voltage	24 VDC
Summation current	Max. 250 mA
Resistance range	500 Ω to 5 kΩ
ACP10	V2.35.1 and higher
Discharge capacitance	0.1 µF
Power dissipation relative to continuous apparent power	IE2 (10,25) 2.2% IE2 (50,25) 2.2% IE2 (10,50) 2.4% IE2 (50,50) 2.4% IE2 (90,50) 2.4% IE2 (10,100) 2.9% IE2 (50,100) 2.9% IE2 (90,100) 2.9%
Nominal losses in standby mode	6.5 W
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	Yes
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP65
Storage	5 to 95%, non-condensing
Transport	Max. 95% at 40°C
Operation	5 to 85%, non-condensing
Width	137 mm
Height	287.2 mm
Depth	131 mm
Weight	4.8 kg
