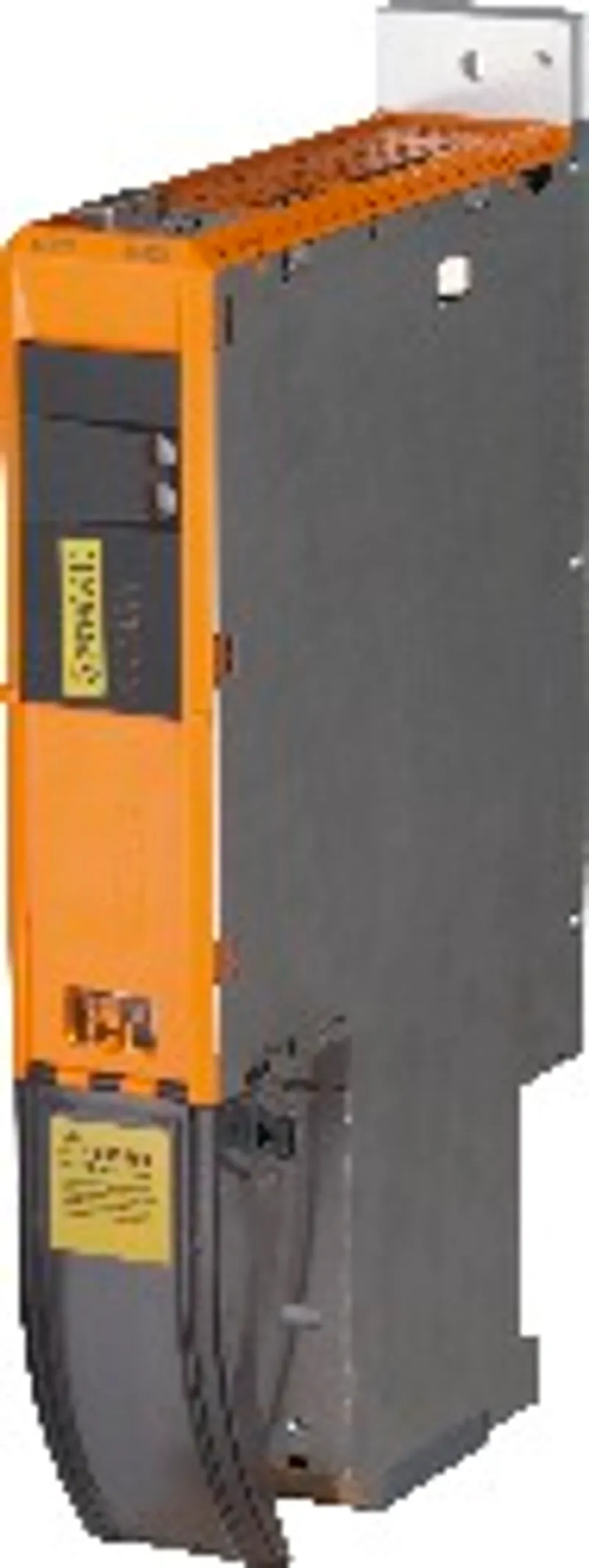

B&R 8BVI0055HWSS.000-4
ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module
- MPN
- 8BVI0055HWSS.000-4
- Category
- Wall mounting
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8BVI0055HWSS.000-4?
ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module, 7.6 A, AS, wall mounting, optimized for applications with decentralized, computationally intensive open-loop and closed-loop control requirements
Specifications
General information
| System requirements – Automation Studio | 4.6.1.x or later |
| Certification – CE | Yes |
| Certification – KC | Yes |
| B&R ID code | 0x2FD5 |
| Cooling and mounting method | Wall mounting |
| Slots for plug-in modules | 2 (note: SLOT 2 is available. SLOT 1 of the ACOPOSmulti module is occupied by the SafeMOTION module.) |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Power loss depending on the switching frequency – Switching frequency 5 kHz | [0.6 * I M ² + 1.3 * I M + 60] W (note: I M ... Current on motor connection X5A [A eff ]) |
| Power loss depending on the switching frequency – Switching frequency 10 kHz | [0.97 * I M ² + 0.5 * I M + 110] W (note: I M ... Current on motor connection X5A [A eff ]) |
| Power loss depending on the switching frequency – Switching frequency 20 kHz | [1.7 * I M ² - 0.7 * I M + 225] W (note: I M ... Current on motor connection X5A [A eff ]) |
| Continuous power consumption | 5.6 kW (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| DC bus capacitance | 165 µF |
| Design | ACOPOSmulti backplane |
24 VDC supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 23.5 µF |
| Max. power consumption | 18 W + P SMC1 + P SLOT2 + P 24 V Out + P HoldingBrakeEncoder interfaces"). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W)."> (note: P SMC1 ... Max. power consumption P SMC [W] of the SafeMOTION module in SLOT1 (see section) |
| Design | ACOPOSmulti backplane |
24 VDC output
| Output voltage – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC /315) |
| Output voltage – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Quantity | 2 |
| Protection | 250 mA (slow-blow) electronic, automatic reset |
Motor connection
| Reduction of continuous current depending on the switching frequency – Switching frequency 5 kHz | No reduction (note: Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on the switching frequency – Switching frequency 10 kHz | 0.2 A/K (starting at 49°C) (note: Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on the switching frequency – Switching frequency 20 kHz | 0.13 A/K (starting at 4°C) (note: Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on the installation elevation – Starting at 500 m above sea level | 0.76 A eff per 1000 m |
| Protective measures – Overload protection | Yes |
| Protective measures – Short circuit and ground fault protection | Yes |
| Design – U, V, W, PE | Connector |
| Design – Shield connection | Yes |
| Terminal connection cross section – With wire end sleeves | 0.25 to 4 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 10 |
| Terminal connection cross section – CSA | 28 to 10 |
| Max. motor line length depending on the switching frequency – Switching frequency 5 kHz | 25 m |
| Max. motor line length depending on the switching frequency – Switching frequency 10 kHz | 25 m |
| Max. motor line length depending on the switching frequency – Switching frequency 20 kHz | 10 m |
| Quantity | 1 |
| Continuous power per motor connection | 5.5 kW (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Continuous current per motor connection | 7.6 A eff (note: Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Peak current | 18.9 A eff |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 / 20 kHz (note: B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.) |
| Electrical stress of the connected motor in accordance with IEC TS 60034-25 | Limit value curve A |
| Max. output frequency | 598 HzPower unit: Limit speed exceeded")."> |
| Terminal cable cross section dimension of shield connection | 12 to 22 mm |
Motor holding brake connection
| Protective measures – Overload and short circuit protection | Yes |
| Protective measures – Open line monitoring | Yes |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 1 |
| Output voltage | 24 VDC +5.8% / -0% (note: During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used.) |
| Continuous current | 1.1 A |
| Max. internal resistance | 0.5 Ω |
| Extinction potential | Approx. 30 V |
| Max. extinction energy per switching operation | 1.5 Ws |
| Max. switching frequency | 0.5 Hz |
| Response threshold for open line monitoring | Approx. 0.25 A |
| Response threshold for undervoltage monitoring | 24 VDC -2% / -4% |
Encoder interfaces
| Electrical isolation – Encoder - ACOPOSmulti | No |
| Encoder supply – Short circuit protection | Yes |
| Encoder supply – Overload protection | Yes |
| Encoder supply – Output voltage | Typ. 12.5 V |
| Encoder supply – Load capability | 350 mA |
| Synchronous serial interface – Signal transmission | RS485 |
| Synchronous serial interface – Data transfer rate | 6.25 Mbit/s |
| Quantity | 1 |
| Type | EnDat 2.2 (note: An EnDat 2.2 functional safety encoder is required when using ACOPOSmulti SafeMOTION inverter modules! With standard EnDat 2.2 encoders, only the STO, SBC and time-monitored SS1 safety functions are available!) |
| Connections | 9-pin female DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 100 m ; Depends on the cross section of the power supply wires in the encoder cable |
| Max. power consumption per encoder interface | P SMC [W] = 19 V * I Encoder [A] (note: I Encoder ... Max. current consumption of the connected encoder [A].) |
Trigger inputs
| Electrical isolation – Input - Inverter module | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay – Rising edge | 52 µs ±0.5 µs (digitally filtered) |
| Switching delay – Falling edge | 53 µs ±0.5 µs (digitally filtered) |
| Quantity | 2 |
| Wiring | Sink |
| Input current at nominal voltage | Approx. 10 mA |
| Modulation compared to ground potential | Max. ±38 V |
Electrical characteristics
| Discharge capacitance | 0.14 µF |
Operating conditions
| Permitted mounting orientations – Hanging vertically | Yes |
| Permitted mounting orientations – Lying horizontally | Yes |
| Permitted mounting orientations – Standing horizontally | No |
| Installation at elevations above sea level – Nominal | 0 to 500 m |
| Installation at elevations above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account.) |
| Degree of pollution in accordance with EN 60664-1 | 2 (non-conductive pollution) |
| Overvoltage category in accordance with IEC 60364-4-443:1999 | III |
| EN 60529 protection | IP20 |
Environmental conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical characteristics
| Dimensions – Wall mounting | 263 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Width | 53 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Weight | Approx. 2.7 kg |
| Module width | 1 |
Accessories
Required accessories (order separately)
| 8BZVI0055SS.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxSS and 8BVI00xxHxSA modules: 1x 8TB3104.204G-11, 1x 8TB2104.203L-00, 1x 8TB2108.20… |
Optional accessories (27)
| 8BXB000.0000-00 | Accessory sets — ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder |
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8BAC0133.000-1 | Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42… |
| 8BAC0132.000-1 | Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±… |
| 8BAC0130.001-1 | Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu… |
| 8BAC0130.000-1 | Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs… |
| 8BAC0125.000-1 | Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller… |
| 8BAC0124.000-1 | Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply… |
| 8BAC0123.002-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.001-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.000-1 | Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with… |
| 8BAC0122.000-1 | Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf… |
| 8BAC0121.000-1 | Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte… |
| 8BAC0120.001-2 | Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors… |
| 8BAC0120.000-1 | Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded… |
| 8SCS009.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS002.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB3104.204G-11 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110 |
| 8TB2108.2010-00 | Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.203L-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010 |
