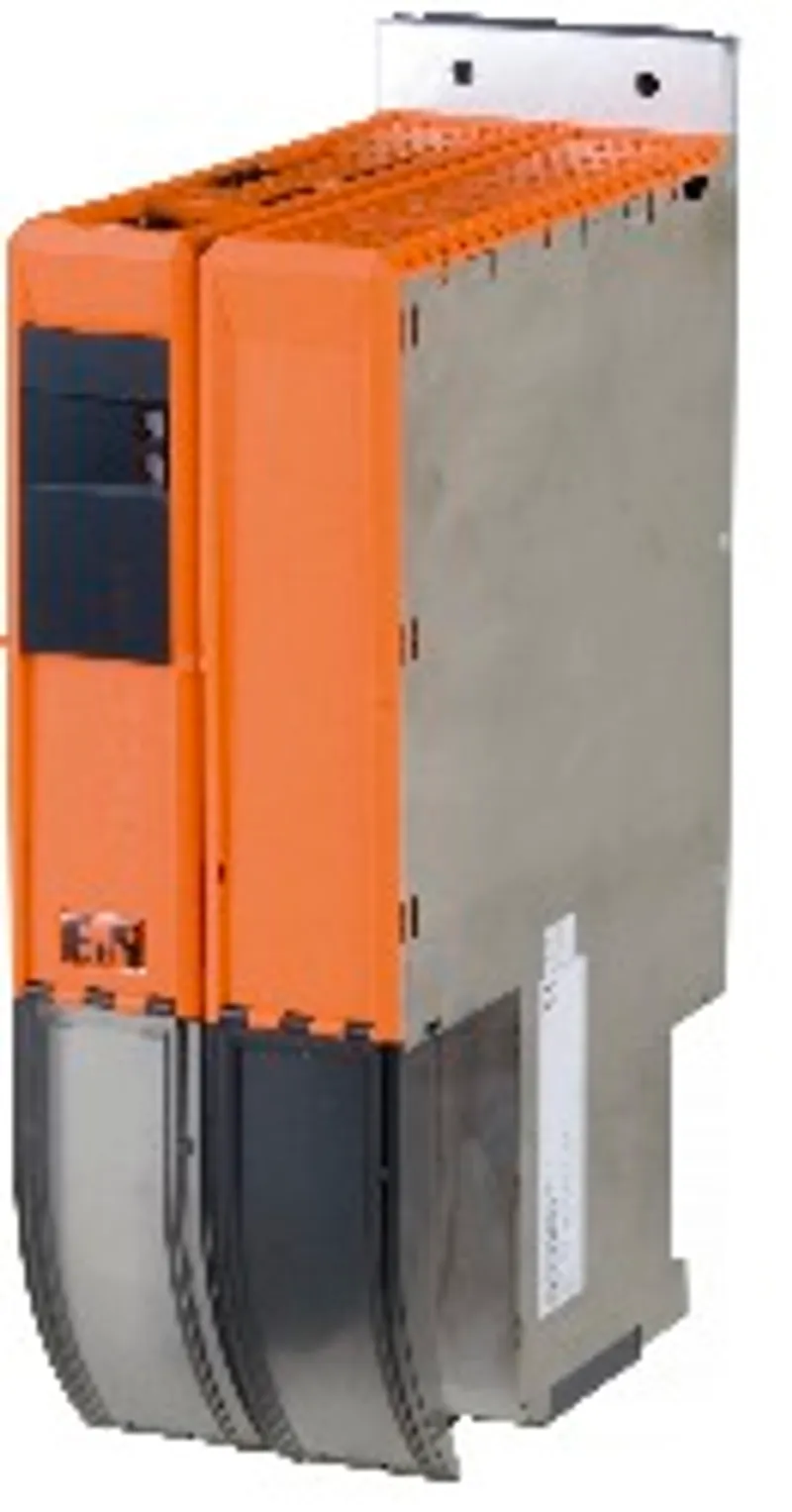

B&R 8BVI0110HCD0.000-1

Name: B&R 8BVI0110HCD0.000-1
Brand: B&R
SKU: 8BVI0110HCD0.000-1

MPN: 8BVI0110HCD0.000-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold plate or feed-through mounting
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8BVI0110HCD0.000-1 be shipped?

8BVI0110HCD0.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0110HCD0.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0110HCD0.000-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0110HCD0.000-1, subject to availability and destination.

Integrated uncontrolled standstill and safe stopIntegrated connection for motor holding brake and temperature sensor2 slots for ACOPOSmulti plug-in modulesTwo fully independent power inverters in one inverter module contained in 2-axis modules ACOPOSmulti inverter module, 15.1 A, AS, cold plate or pass-through mounting, 2 axes

Specifications

B&R ID code	0xA8E3
Dynamic node allocation (DNA)	Yes
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes
Nominal	5 to 40°C
Continuous power consumption	22.3 kW
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	10 m
DC bus capacitance	660 µF
Variant	ACOPOSmulti backplane
Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	20 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake(s)
Quantity	2
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset
Continuous power per motor connection	11 kW
Continuous current per motor connection	15.1 Aeff
Cold plate mounting	0.19 A/K (starting at -14°C)
Pass-through mounting	209 mm
Starting at 500 m above sea level	1.51 Aeff per 1000 m
Peak current per motor connection	37.7 Aeff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
U, V, W, PE	Connector
Shield connection	Yes
With wire end sleeve	0.25 to 6 mm²
UL/C-UL-US	30 to 10 AWG
CSA	28 to 10 AWG
Terminal cable cross section dimension of shield connection	12 to 22 mm
Output voltage	24 VDC +5.8% / -0%
Continuous current per connection	2.1 A
Max. internal resistance	0.3 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC +0% / -4%
Circuit	Sink
Input - Inverter module	Yes
Input - Input	Yes
Maximum	55°C
Input current at nominal voltage	Approx. 10 mA
Low	<5 V
High	>15 V
Enable 1 → 0, PWM off	Max. 20.5 ms
Enable 0 → 1, ready for PWM	Max. 100 µs
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	Permitted Max. test pulse length: 500 µs
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Resistance range	500 Ω to 5 kΩ
Discharge capacitance	0.44 µF
Power dissipation relative to continuous apparent power	IE2 (10,25) 1.4% IE2 (50,25) 1.4% IE2 (10,50) 1.6% IE2 (50,50) 1.6% IE2 (90,50) 1.6% IE2 (10,100) 2.2% IE2 (50,100) 2.2% IE2 (90,100) 2.2%
Nominal losses in standby mode	10 W
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	Max. 95% at 40°C
Operation	5 to 85%
Width	106.5 mm
Height	317 mm
Cold plate	212 mm
Weight	Approx. 4.1 kg
Module width	2
