B&R 8BCR0003.1111A-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Resolver cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.2 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8BCR0003.1111A-0 be shipped?
8BCR0003.1111A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCR0003.1111A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCR0003.1111A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCR0003.1111A-0, subject to availability and destination.
• UL/CSA listed
• Can be used in cable drag chains
• Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors
• speedtec - Innovative connector system for secure connections

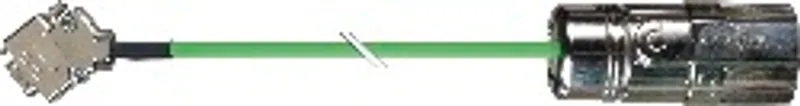

ACOPOSmulti resolver cable, length 3 m, 3x 2x 24 AWG (19x 0.127), 12-pin female speedtec resolver connector, 9-pin male DSUB servo connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
Cable construction
| Signal line – Quantity | 6 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White/Brown, green/yellow, gray/pink |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 24 AWG / 19 AWG |
| Signal line – Shield | No |
| Signal line – Stranding | White with brown, green with yellow, gray with pink |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green, similar to RAL 6018 flat |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
Connector
| Type | 12-pin female speedtec resolver connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector; Mating cycles: <200; Contacts: 9; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Test voltage – Wire - Wire | 1.5 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Signal line | ≤86 Ω/km |
| Operating voltage | ≤30 V eff |
| Insulation resistance | >200 MΩ*km |
Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +90°C |
Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Dimensions – Length | 3 m |
| Dimensions – Diameter | 6.5 mm ±0.2 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥50 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature of 20°C and bend radius of 65 mm."> | >3,000,000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.2 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8BCR0003.1111A-0 | PDF · 193 KB · 1.5 (12/13/2023) - EN |
Certificates (3)
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
