B&R 8BCR0002.3121A-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Resolver cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.1 kg |
Shipping & availability
When can 8BCR0002.3121A-0 be shipped?
8BCR0002.3121A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCR0002.3121A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCR0002.3121A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCR0002.3121A-0, subject to availability and destination.

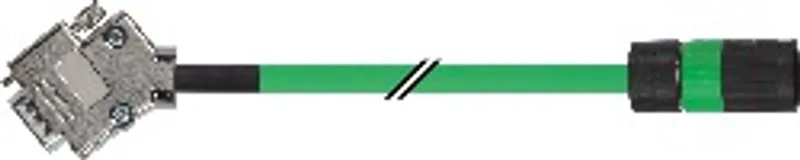

Extremely flexibleitec - Innovative connector system for fast and secure connections Resolver cable, length 2 m, 3x 2x 24 AWG (19x 0.127), 12-pin female series 615 signal connector, 9-pin male DSUB servo connector
Specifications
Specifications
| Cable cross section | 3x 2x 0.22 GN |
| Durability | Oil resistance per DIN VDE 0281-1 (TM5) (HD 21.1 / DIN EN 60811-1-1/2-1), flame resistance per IEC 60332-1-2 |
| Certification | E130266 cURus AWM Style 2637 90°C 30 V and CSA AWM I/II A/B 90°C 30 V, FT1 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 6 |
| Wire insulation | PVC |
| Wire colors | White/Brown, green/yellow, gray/pink |
| Variant | Tinned copper stranded wire |
| Cross section | 0.22 mm |
| Shield | No |
| Stranding | White with brown, green with yellow, gray with pink |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
| Material | PVC |
| Color | Green |
| Labeling | B&R 3x2x0.22 * E130266 cURus AWM STYLE 2637 * AWM I/II A/B 90°C 30 V FT1 * <Batch number> |
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector Mating cycles: <200 Contacts: 9 Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Wire - Wire | 1.5 kV |
| Wire - Shield | 0.8 kV |
| Signal line | ≤86 Ω/km |
| Insulation resistance | ≥20 MΩ*km |
| Moving | ≥52 mm |
| Static | -20°C to +90°C |
| Length | 2 m |
| Diameter | 6.3 mm ±0.2 mm |
| Single bend | ≥26 mm |
| Weight | 0.1 kg |
