What is the B&R 8B0M0100HW00.000-1?
Pioneering power distribution system
Integrated distribution of power and auxiliary power supply
Shockproof
Option slots possible

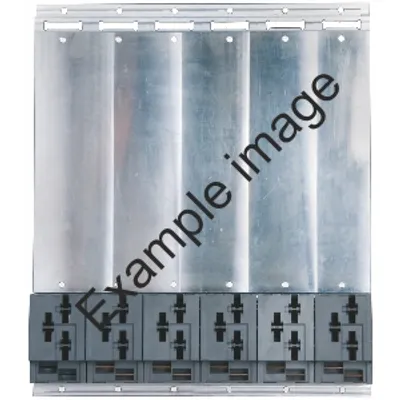

ACOPOSmulti mounting plate with backplane, 10 slots, AS, wall mounting, 75 mm² and 22 mm², complete
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Number of slots | 10 |
| Cooling and mounting type | Wall mounting |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 20 kW per 1000 m |
| Cross section – DC+, DC- | 72 mm² |
| Cross section – PE | 72 mm² |
| Continuous power | 200 kW (note: Valid under the following conditions: 40°C ambient temperature, installation elevation <500 m above sea level.) |
24 VDC auxiliary supply
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 150 W per 1000 m |
| Cross section – 24 VDC, COM | 21.3 mm² |
| Voltage | 25 VDC ±1.6% |
| Continuous power | 1500 W (note: Valid under the following conditions: 40°C ambient temperature, installation elevation <500 m above sea level.) |
| Max. power consumption per slot (P Fan8B0M... ) | 8.25 W (note: Corresponds to the proportionate power consumption of the fan modules in the mounting plate.) |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation of ACOPOSmulti mounting plates at an installation elevation of 500 m to 4000 m above sea level is possible when taking the specified reduction in continuous power into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Evenness of mounting surface | Evenness of 1 mm over the entire mounting surface |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C (note: Continuous operation of ACOPOSmulti mounting plates at ambient temperatures from 40°C to max. 55°C is possible when taking the specified continuous power reductions into account.) |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 535 mm (note: The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 385 mm (note: The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Depth | 13.5 mm (note: The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation.) |
| Weight | 5.3 kg |
Accessories
Optional accessories (1)
| 8BXF002.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for mounting plate with backplane module, wall mounting (8B0MxxxxHWxx.xxx-x) |
