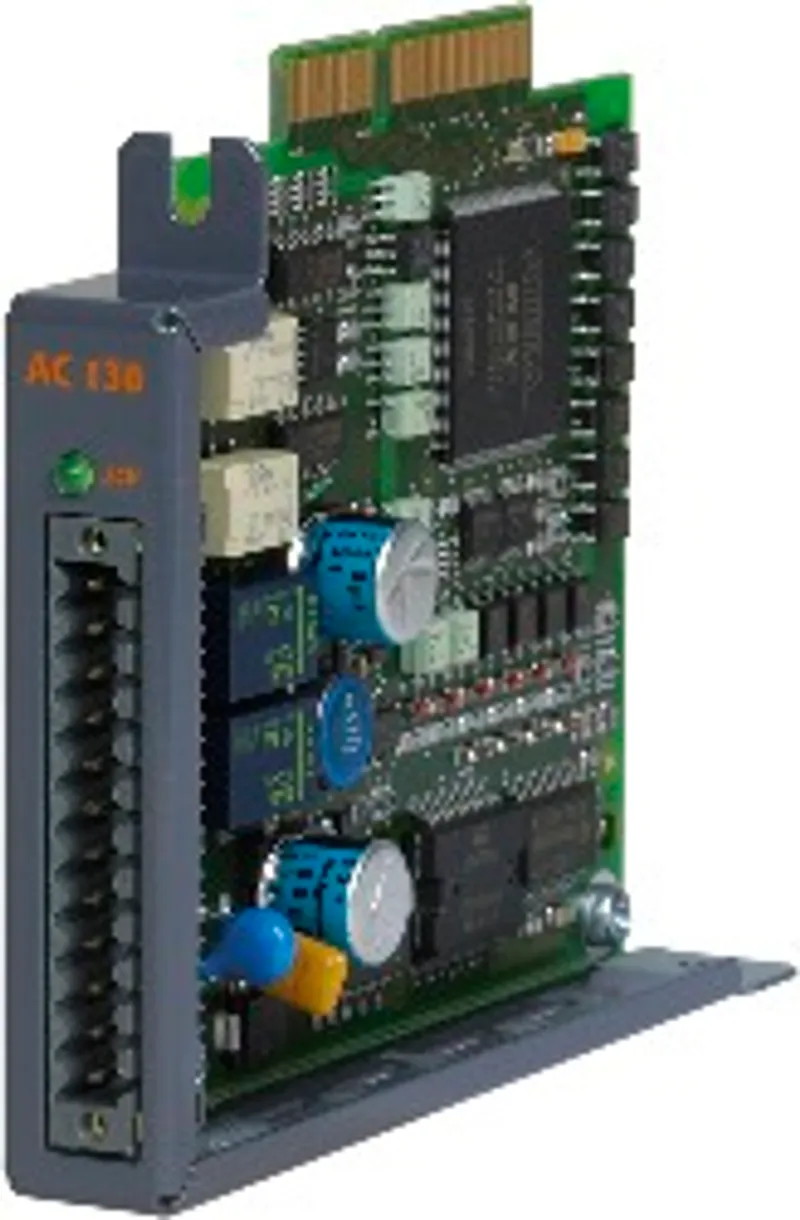

B&R 8AC130.60-1 – Digital mixed module for installation in ACOPOS servo drives

Name: B&R 8AC130.60-1 – Digital mixed module for installation in ACOPOS servo drives
Brand: B&R
SKU: 8AC130.60-1

MPN: 8AC130.60-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Plug-in modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8AC130.60-1 be shipped?

8AC130.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8AC130.60-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8AC130.60-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC130.60-1, subject to availability and destination.

• Digital mixed module for installation in ACOPOS servo drives

• Maximum of 8 digital inputs or 10 digital outputs

• I/O configurable in pairs as inputs or outputs

• Incremental encoder functionality (A, B, R)

• Incremental encoder emulation

ACOPOS plug-in module, 8 digital I/O configurable in pairs as 24 V inputs or outputs 400/100 mA, 2 digital outputs 2 A, order terminal block TB712 separately!
