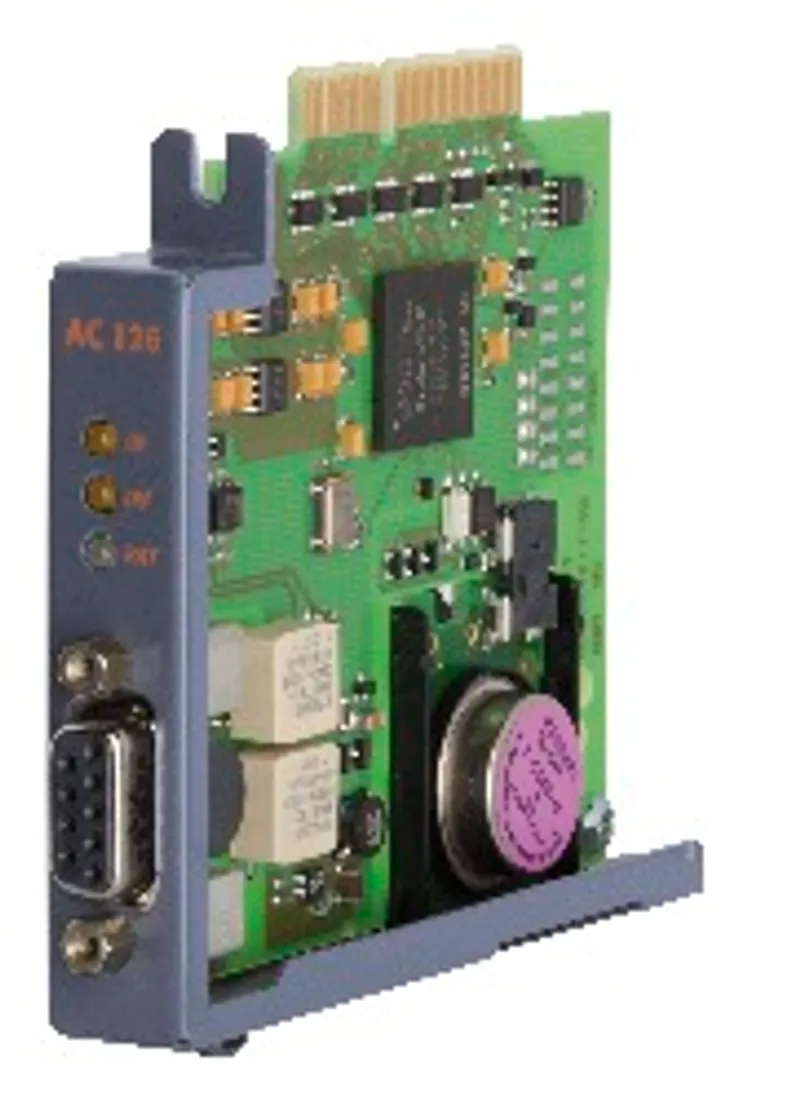

B&R 8AC126.60-1 – EnDat 2.2 encoder interface for installation in ACOPOS…

Name: B&R 8AC126.60-1 – EnDat 2.2 encoder interface for installation in ACOPOS…
Brand: B&R
SKU: 8AC126.60-1

MPN: 8AC126.60-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Plug-in modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8AC126.60-1 be shipped?

8AC126.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8AC126.60-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8AC126.60-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC126.60-1, subject to availability and destination.

• EnDat 2.2 encoder interface for installation in ACOPOS servo drives

• Encoder monitoring

• Embedded parameter chip when used with B&R motors

• Backup battery possible

ACOPOS plug-in module, EnDat 2.2 encoder interface

Accessories

Required accessories (order separately)

8BCF0025.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0020.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0015.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0010.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0007.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…
8BCF0005.1221B-0	EnDat 2.2 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-…

Optional accessories (1)

8AXB000.0000-00

Battery modules — Accessory set for 8AC126.60-1 for encoder buffering consisting of: battery module for lithium battery 3.6 V

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0xBD5A
Slot " data-placement="top" data-html="true" data-container="body" data-content="The AC126 is an encoder module. It is also possible to connect multiple encoder modules. In this case, the encoder module in the smallest slot automatically serves as motor feedback.">	Slots 2, 3 and 4
Max. power consumption	4.4 W

Encoder connection " data-placement="top" data-html="true" data-container="body" data-content="Only B&R 8BCF EnDat 2.2 cables or B&R 8CH hybrid motor cables are permitted to be used for wiring the module.">

Electrical isolation – Encoder - ACOPOS	No
Module-side connection	9-pin female DSUB
Status indicators	UP/DN LEDs, BAT LED
Encoder monitoring	Yes
Max. encoder cable length	100 m; Depends on the cross section of the power supply wires in the encoder cable " data-placement="top" data-html="true" data-container="body" data-content="Maximum encoder cable length l<sub>max</sub> can be calculated as follows (the maximum permissible encoder cable length of 100 m is not permitted to be exceeded): <br><br>l<sub>max</sub> = 2.5 * A / [(I<sub>G</sub> + 0.03) * ρ] <br><br>I<sub>G</sub> ... Max. current consumption of the encoder [A]<br> A ... Cross section of the power supply wires [mm²]<br> ρ ... Specific resistance [Ωmm²/m] (e.g. for copper: ρ = 0.0178)">
