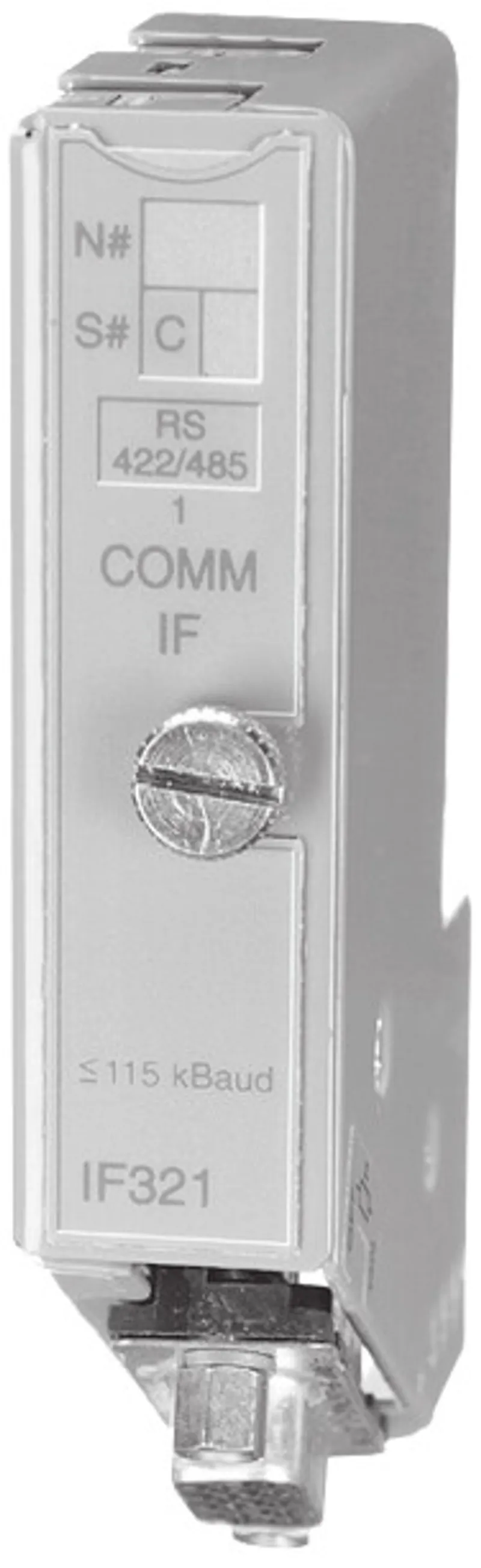

B&R 7IF321.7 – 2003 interface module, 1 RS485/RS422 interface
Request a Quote
Quick facts
| Availability | In stock — 21 available |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7IF321.7 be shipped?
7IF321.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7IF321.7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7IF321.7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7IF321.7, subject to availability and destination.
2003 interface module, 1 RS485/RS422 interface, electrically isolated, network-capable, screw-in module
Specifications
General Information
| Short Description | 2003 interface module, 1 RS485/RS422 interface, electrically isolated, network capable, screw-in module |
| C-UL-US Listed | Yes |
| B&R ID Code | $16 |
| Module Type | B&R 2003 screw-in module |
| Slot | CP Interface, slots 1, 2 and 3 |
| Power Consumption | Max. 1.4 W |
| Interface Type | RS485/RS42 |
| Electrical Isolation – Interface - PCC | Yes |
| Design | 9 pin D-type socket |
| Baudrate | Max. 115.2 kBaud |
| Distance | 1200 m (without repeater) |
| Network Capable | Yes |
| Data Formats – Data Bits | 7/8 |
| Data Formats – Parity | yes / no / even / odd |
| Data Formats – Stop Bits | 1/2 |
Mechanical Characteristics
| Dimensions | B&R 2003 screw-in module |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7IF321.7 | PDF · 266 KB · 1.0 (06/08/2004) - EN |
