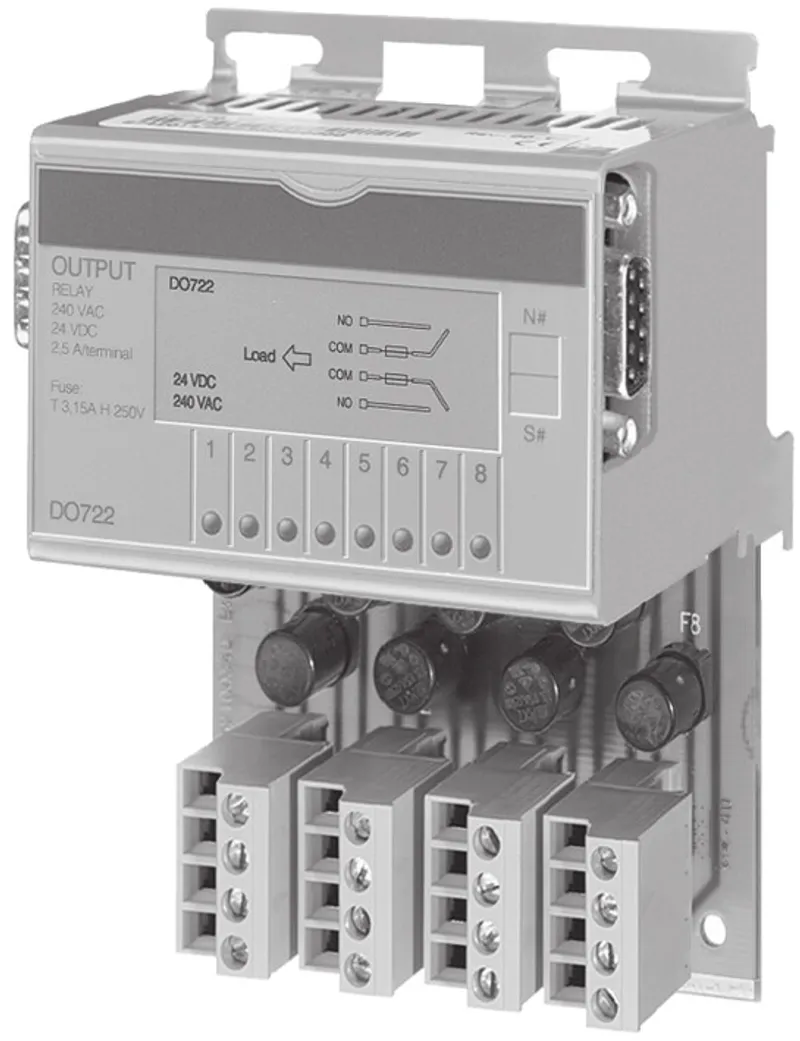

B&R 7DO722.7 – 2003 digital output module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7DO722.7 be shipped?
7DO722.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7DO722.7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7DO722.7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DO722.7, subject to availability and destination.
2003 digital output module, 8 relay outputs 240 VAC / 24 VDC, 2.5 A
Accessories
Required accessories (order separately)
| 7AC011.9 | Undefined — 2003 cable safety device, 5 pcs., including installation material |
Specifications
General Information
| Short Description | 2003 digital output module, 8 relay outputs 240 VAC / 24 VDC, 2.5 A |
| C-UL-US Listed | Yes |
| B&R ID Code | $F2 |
Static Characteristics
| Module Type | B&R 2003 I/O Module |
| Number of Outputs | 8 isolated channels |
| Type | Relay / N.O. |
| Switching Voltage – Nominal at 2.5 A | 240 VAC / 24 VDC |
| Switching Voltage – Maximum | 264 VAC / 125 VDC |
| Switching Voltage – Maximum Voltage Relay-Relay | 460 VAC |
| Continuous Current per – Output | 2.5 A |
| Continuous Current per – Module | 20 A |
| Maximum Switching Power (AC) | 625 VA |
| Maximum Switching Power (DC) | 75 W at 30 VDC |
| Power Consumption | Max. 1.4 W |
Protection Characteristics
| Short Circuit Protection | Fuse T 3.15A H / 250 V per output |
Dynamic Characteristics
| Switching Delay log 0 - log 1 log 1 - log 0 | Max. 10 ms Max. 10 ms |
Operating Characteristics
| Electrical Isolation – Output - PCC | Yes |
| Electrical Isolation – Output - Output | Yes |
Mechanical Characteristics
| Dimensions | B&R 2003 single width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7DO722.7 | PDF · 359 KB · 1.0 (06/08/2004) - EN |
More B&R parts
Available on requestB&R 7DO164.70 – 2003 digital output module, 4 FET outputs 48 to 125 VAC
Available on requestB&R 7DO435.7 – 2003 digital output module, 8 FET outputs 24 VDC, 2 A
Available on requestB&R 7DO720.7 – 2003 digital output module
Available on requestB&R 7DO721.7 – 2003 digital output module
Available on requestB&R 7EC020.60-2 – RS232 interface (IF1) for programming and configuring using…
Available on requestB&R 7EC020.61-2 – Embedded controller, ARNC0, x86 100 MHz Intel compatible

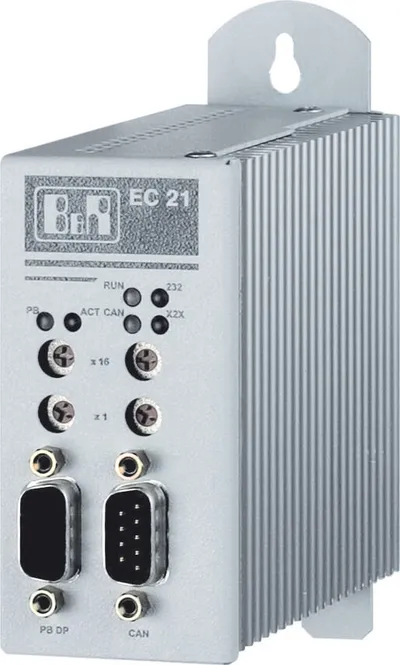

Available on requestB&R 7EC021.60-1 – Embedded controller, x86 100 MHz Intel compatible
