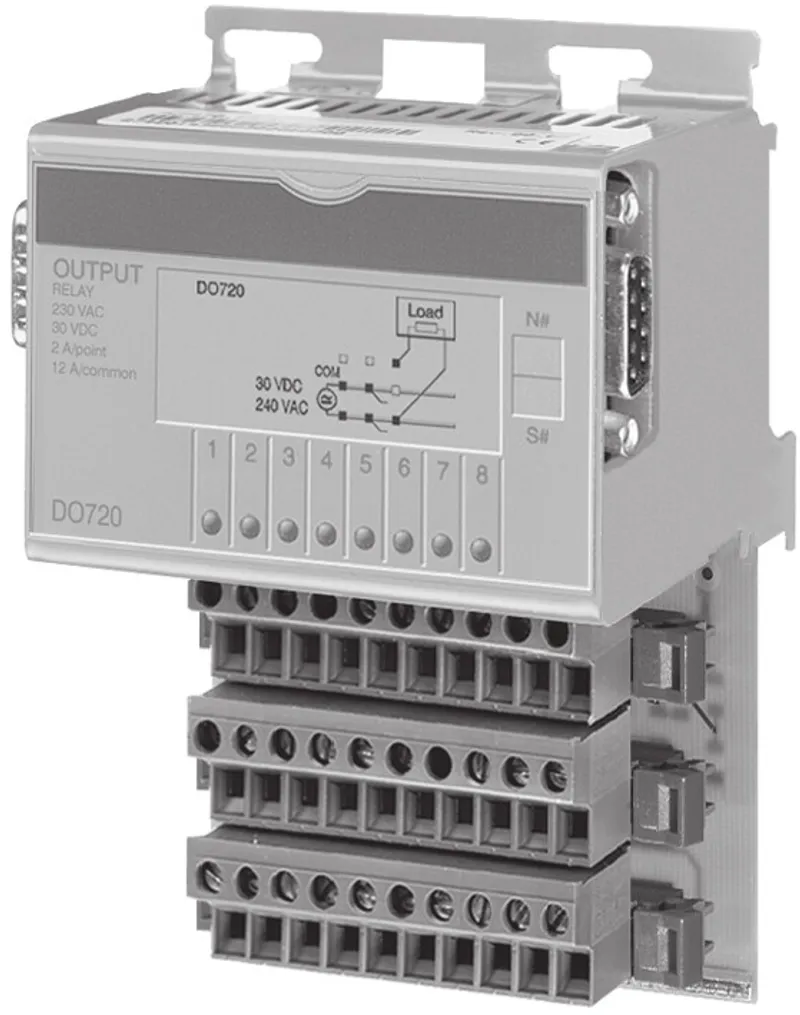

B&R 7DO720.7 – 2003 digital output module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7DO720.7 be shipped?
7DO720.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7DO720.7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7DO720.7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DO720.7, subject to availability and destination.
2003 digital output module, 8 relay outputs 240 VAC / 30 VDC, 2 A, order 3x terminal block 7TB710 separately!
Accessories
Specifications
General Information
| Short Description | 2003 digital output module, 8 relay outputs 240 VAC / 30 VDC, 2 A, Order terminal blocks separately! |
| C-UL-US Listed | Yes |
| B&R ID Code | $E2 |
Static Characteristics
| Module Type | B&R 2003 I/O Module |
| Type | Relay / N.O. |
| Switching Voltage – Nominal | 240 VAC / 30 VDC |
| Switching Voltage – Maximum | 264 VAC / 110 VDC |
| Continuous Current per – Output | 2A |
| Continuous Current per – Module | 12 A |
| Contact Resistance | 30 mΩ at 6 VDC, 1 A |
| Maximum Switching Power (AC) | 480 VA |
| Maximum Switching Power (DC) | 60 W |
| Power Consumption | Max. 1.4 W |
Protection Characteristics
| Short Circuit Protection | Fuse 16 AT (root) |
Dynamic Characteristics
| Switching Delay log 0 - log 1 log 1 - log 0 | Max. 10 ms Max. 10 ms |
Operating Characteristics
| Electrical Isolation | Output - PCC |
| Dielectric Strength – Contact - Contact | 750 VAC / 1 min |
| Dielectric Strength – Contact - Coil | 2000 VAC / 1 min |
Mechanical Characteristics
| Dimensions | B&R 2003 single width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7DO720.7 | PDF · 390 KB · 1.0 (06/08/2004) - EN |
More B&R parts
Available on requestB&R 7DO138.70 – 2003 digital output module, 8 outputs 24 VDC, 0.5 A
Available on requestB&R 7DO139.70 – 2003 digital output module, 8 outputs 12 to 24 VDC, 0.5 A
Available on requestB&R 7DO164.70 – 2003 digital output module, 4 FET outputs 48 to 125 VAC

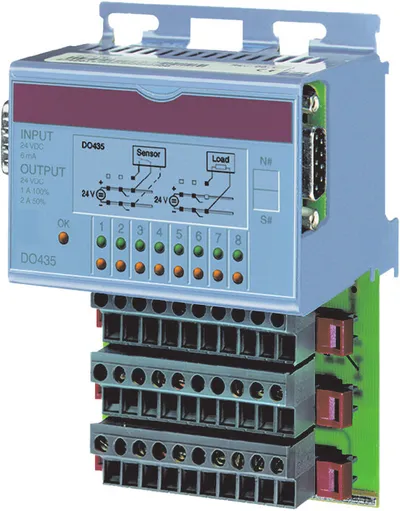

Available on requestB&R 7DO435.7 – 2003 digital output module, 8 FET outputs 24 VDC, 2 A
