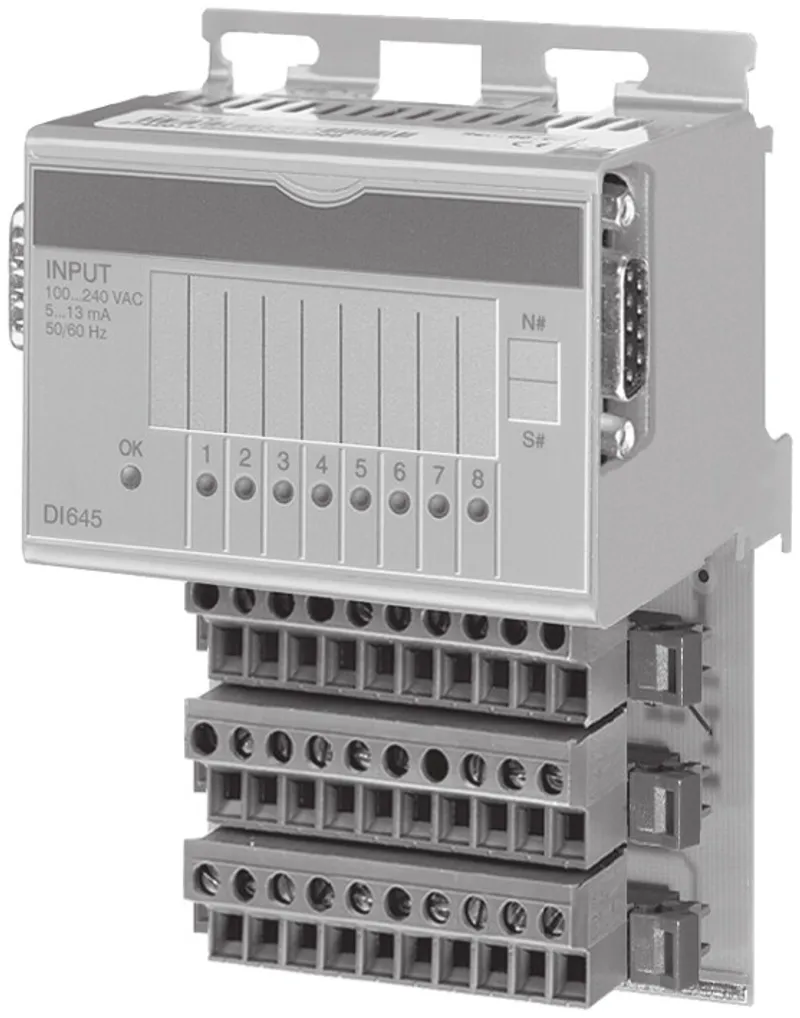

B&R 7DI645.7 – 2003 digital input module, 8 inputs 100-240 VAC, 50 ms

MPN: 7DI645.7 · Brand: B&R
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
LifecycleActive
Warranty12-month (new) · 3-month (used/refurbished)
DatasheetManufacturer datasheet ↗

Shipping & availability

When can 7DI645.7 be shipped?

7DI645.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7DI645.7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7DI645.7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DI645.7, subject to availability and destination.

2003 digital input module, 8 inputs 100-240 VAC, 50 ms, order 3x terminal block 7TB710 separately!

Accessories

Required accessories (order separately)

7TB710.91Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.
7TB710.9Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Specifications

General Information

Short Description2003 digital input module, 8 inputs 100-240 VAC, 50 ms, Order terminal blocks separately!
C-UL-US ListedYes
B&R ID Code$E5

Static Characteristics

Module TypeB&R 2003 I/O Module
WiringSink or source
Input Voltage – Minimum85 VAC
Input Voltage – Nominal100 - 240 VAC
Input Voltage – Maximum264 VAC
Input Voltage Frequency47 - 63 Hz
Switching Threshold – LOW<40 VAC at 2 mA
Switching Threshold – HIGH>79 VAC
Input DelayMax. 50 ms (at 85 - 264 VAC)
Input Current – 100 VAC / 60 HzApprox. 5 mA
Input Current – 240 VAC / 50 HzApprox. 11 mA
Voltage Monitoring (LED: U-OK)Yes Supply voltage >85 VAC
Power ConsumptionMax. 0.2 W

Operating Characteristics

Electrical IsolationInput - PCC

Mechanical Characteristics

DimensionsB&R 2003 single width

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DI645.7PDF · 392 KB · 1.0 (06/08/2004) - EN
