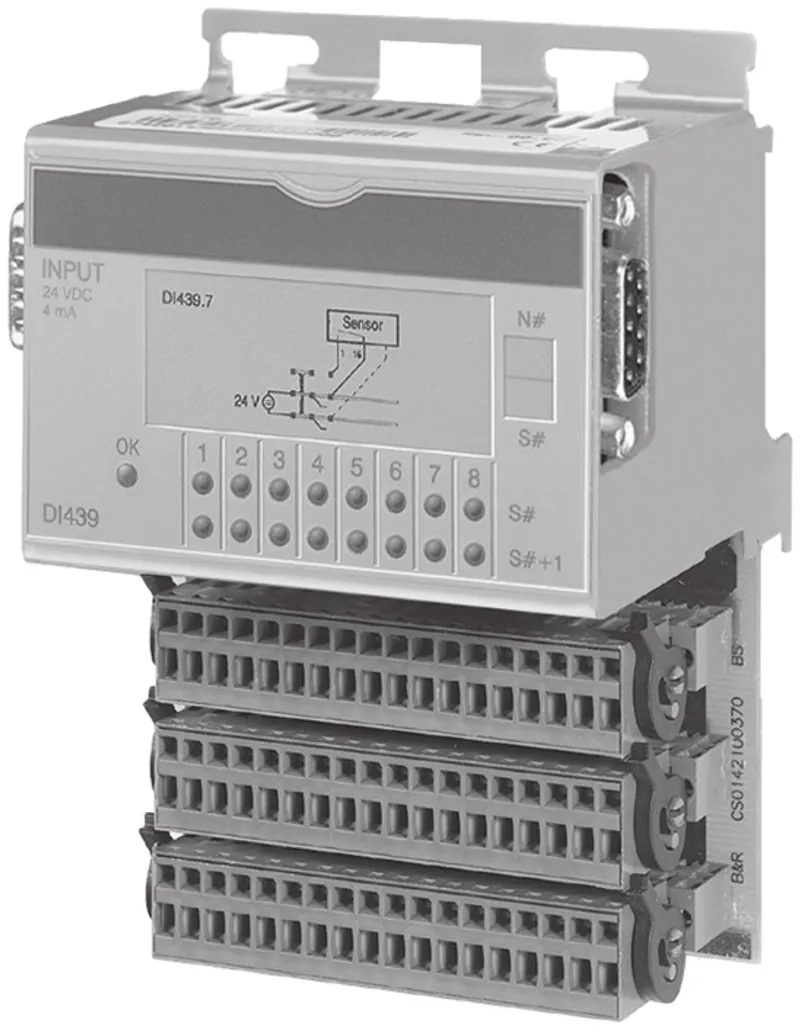

B&R 7DI439.7 – 2003 digital input module, 16 inputs 24 VDC, 1 ms
Request a Quote
Quick facts
| Availability | In stock — 20 available |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 7DI439.7 be shipped?
7DI439.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7DI439.7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7DI439.7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DI439.7, subject to availability and destination.
2003 digital input module, 16 inputs 24 VDC, 1 ms, sink/source, order 3x terminal block TB718 separately!
Accessories
Required accessories (order separately)
| 7TB718.91 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB718.9 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Specifications
General Information
| Short Description | 2003 digital input module, 16 inputs 24 VDC, 1 ms, sink/source, Order terminal blocks separately! |
| C-UL-US Listed | in preparation |
| B&R ID Code | $ED |
Static Characteristics
| Module Type | B&R 2003 I/O Module |
| Wiring | Sink or source |
| Input Voltage – Minimum | 18 VDC |
| Input Voltage – Nominal | 24 VDC |
| Input Voltage – Maximum | 30 VDC |
| Switching Threshold – LOW | <5 V |
| Switching Threshold – HIGH | >15 V |
| Switching Threshold – Input Delay | Max. 1 ms (at 18 - 30 V) |
| Switching Threshold – Input Current at Nominal Voltage | Approx. 4 mA (sink/source) |
| Switching Threshold – Voltage Monitoring (LED: U-OK) | Yes Supply voltage >18 V |
| Switching Threshold – Power Consumption | Max. 0.4 W |
Operating Characteristics
| Electrical Isolation | Input - PCC |
Mechanical Characteristics
| Dimensions | B&R 2003 single width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7DI439.7 | PDF · 432 KB · 1.0 (06/08/2004) - EN |
More B&R parts

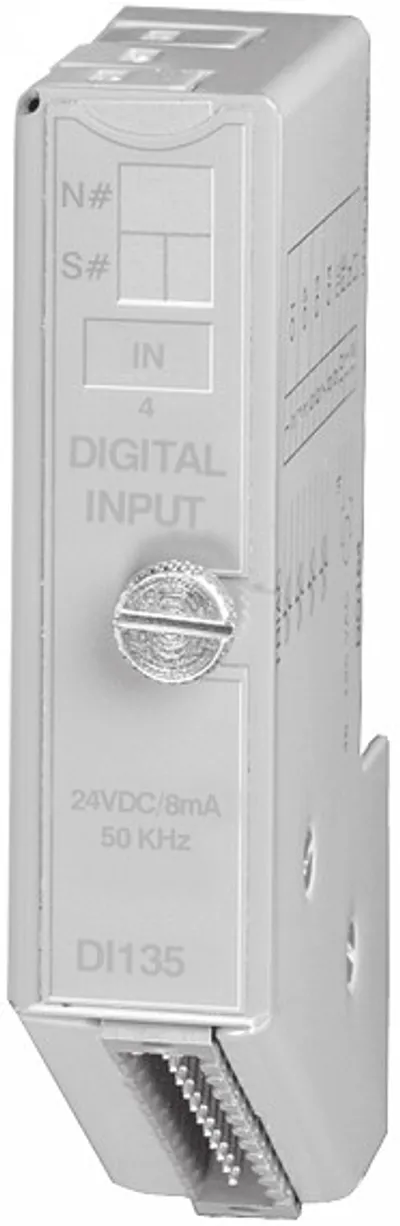

Available on requestB&R 7DI135.70 – 2003 digital input module, 4 inputs 24 VDC, sink
Available on requestB&R 7DI138.70 – 2003 digital input module, 10 inputs 24 VDC, sink

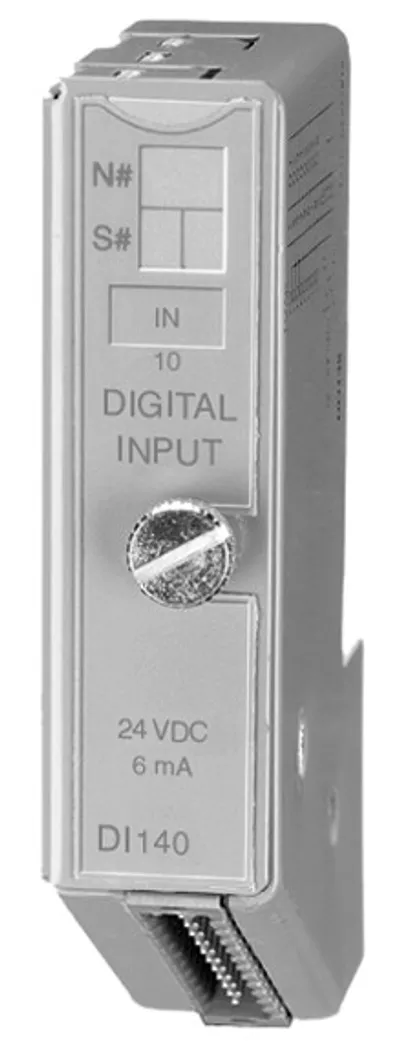

Available on requestB&R 7DI140.70 – 2003 digital input module, 10 inputs 24 VDC, sink

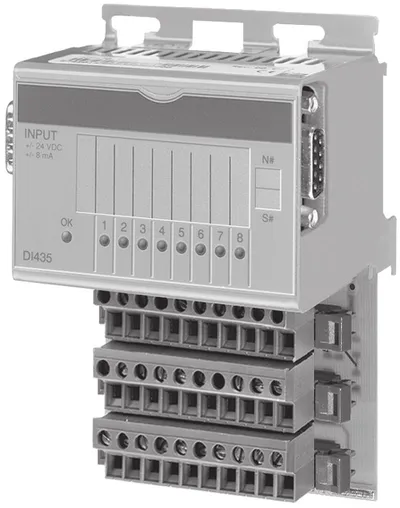

Available on requestB&R 7DI435.7 – 2003 digital input module, 8 inputs 24 VDC, 1 ms
