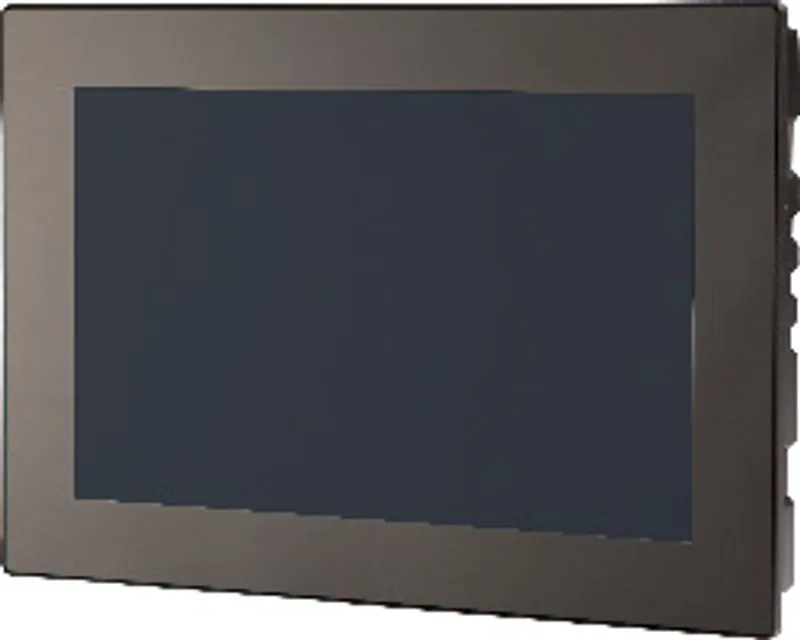

B&R 6PPT50.121E-10A

Name: B&R 6PPT50.121E-10A
Brand: B&R
SKU: 6PPT50.121E-10A

MPN: 6PPT50.121E-10A · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Power Panel T50
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2 kg

Shipping & availability

When can 6PPT50.121E-10A be shipped?

6PPT50.121E-10A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6PPT50.121E-10A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6PPT50.121E-10A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6PPT50.121E-10A, subject to availability and destination.

Power Panel T50, 12.1", glass front (anti-glare), 1x Gigabit Ethernet. CPU and memory: 800 MHz dual core (ARM Cortex-A9), 1 GB RAM, 512 MB onboard flash drive. Display and touch screen: 12.1", 1280 x 800 (WXGA) resolution, projected capacitive touch screen, multi-touch support, anti-glare glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x Ethernet 10/100/1000 Mbit/s, 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.

Specifications

LEDs	Ethernet (Link, Activity, Speed)
B&R ID code	0xF1F9
Cooling	Passive
Power button	No
Reset button	No
Buzzer	Yes
mapp View	Yes
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E115267 Industrial control equipment
DNV	Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck)
CCS	Yes
LR	ENV1
KR	Yes
ABS	Yes
BV	EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck
Operating system	PPT50 system
Real-time clock	No
Type	USB 2.0
Clock frequency	800 MHz
L1 cache	64 kB
L2 cache	512 kB
Flash	512 MB
Mode/Node switches	No
DRAM	1 GB (64-bit connection)
Diagonal	12.1"
Colors	16.7 million (RGB, 8 bits per channel)
Resolution	WXGA, 1280 x 800 pixels
Contrast	Typ. 800:1
Horizontal	Direction L / Direction R = Typ. 80°
Vertical	Direction U = Typ. 80° / Direction D = Typ. 65°
Brightness	Typ. 400 cd/m²
Half-brightness time	50,000 h
Technology	PCT (projected capacitive touch)
Surface	Glass, chemically hardened (6H), anti-glare
Screen rotation	Yes
Connection	ETH1 (IF1)
Variant	Type A
Line length	Max. 100 m between 2 stations (segment length)
Max. transfer rate	10/100/1000 Mbit/s
Physical layer	10BASE-T / 100BASE-TX / 1000BASE-T
Half-duplex	Yes
Full-duplex	Yes
Autonegotiation	Yes
Auto-MDI/MDIX	Yes
Current-carrying capacity	0.5 A
Nominal voltage	24 VDC
Power consumption	Typ. 9.3 W
Max. power consumption	11.4 W
Fuse	3 A slow-blow, internal
Voltage range	24 VDC (-25% / +30%)
Reverse polarity protection	Yes
Electrical isolation	Ethernet (ETH1/IF1) to other interfaces, power supply and ground
Standard mounting orientation	Vertical
Inclination	±25°
Rotation	In 90° increments (portrait/landscape)
All other mounting orientations	With derating: Max. operating temperature minus 5°C
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	Front: IP65, Back: IP20
Operation	-20 to 60°C
Storage	-20 to 80°C
Transport	-20 to 80°C
Relative humidity	See temperature/humidity diagram.
Design	Black
Width	324 mm
Height	221.5 mm
Depth	41.7 mm
Weight	2.0 kg
