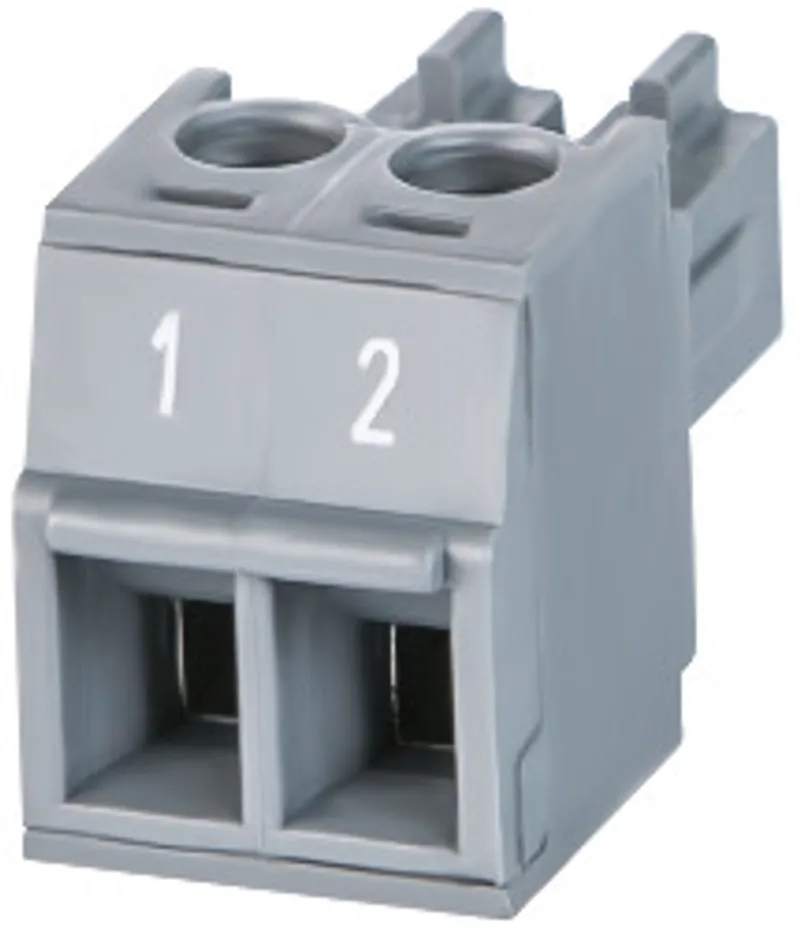

B&R 0TB6102.2010-01 – Accessory terminal block, 2-pin (3.81)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB6102.2010-01 be shipped?
0TB6102.2010-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB6102.2010-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB6102.2010-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB6102.2010-01, subject to availability and destination.
Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm²
Specifications
General information
| Certifications – UL | cULus E115267; Industrial control equipment |
Terminal block
| Connection cross section – AWG wire | 28 to 16 |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 0.5 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 1.5 mm² |
| Connection cross section – Flexible | 0.14 to 1.5 mm² |
| Connection cross section – Inflexible | 0.14 to 1.5 mm² |
| Number of pins | 2 (female) |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.81 mm |
| Tightening torque | 0.22 to 0.25 Nm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 8 A (note: The respective limit data of the Power Panel devices must be taken into account!) |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
| 3D File STEP 0TB6102.2010-01 | ZIP · 108 KB · 1.00 (11/16/2015) |
More B&R parts

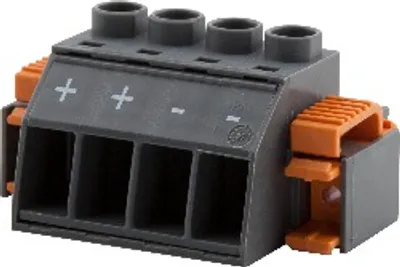

Available on requestB&R 0TB3104-7021 – Accessory terminal block, 4-pin

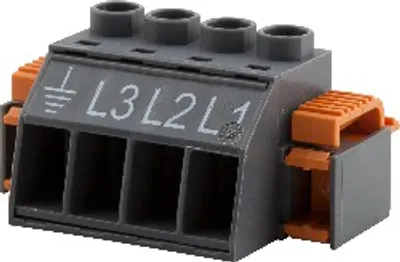

Available on requestB&R 0TB3104-7022 – Accessory terminal block, 4-pin
